Biological Microscopes

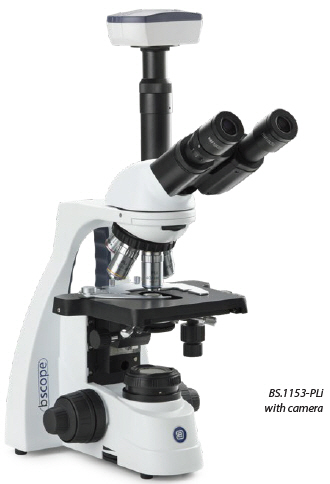

Euromex bScope® Biological Microscopes
The well-equipped microscopes of the bScope® series are intensively used in secondary schools, universities, small and mid-sized laboratories and in veterinary applications
In addition to excellent ergonomical design, these robust and attractively priced microscopes are available in several configurations with HWF 10x/20mm eyepieces and objectives for bright field and phase contrast.
Highlights
- HWF 10x/22mm eyepieces
- Binocular and trinocular models
- Reversed ball-bearing quadruple or quintuple nosepiece:
- E-plan, E-plan IOS and Plan IOS objectives:
- E-plan Phase, E-plan Phase IOS, Plan Phase IOS objectives:
- Integrated rackless X-Y mechanical stage:
- 3W NeoLED™ adjustable illumination system:
- Integrated carrying grip:
- CSS - Cable Storage System and anti-theft system:
- 10 years warranty:
Technical Specification
Eyepieces
High wide field HWF 10x/20 mm secured eyepieces with 20 mm field of view (ø 23.2 mm tube)
Heads
The bScope® is equipped with a Siedentopf type head, 360° rotatable, with 30° inclined ø 23.2 mm tubes. Binocular and trinocular models are equipped with a diopter ±5 adjustment on left eyepiece. The interpupillary distance is adjustable between 48 to 76mm
The models equipped with plan infinity corrected PLi objectives have a unique swiveling system of the eyepiece tubes for ergonomic positioning of the eyepieces in a high and in a low position
The trinocular head comes with a ø 23.2 mm tube, ensuring maximum flexibility. The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging
Nosepiece
Revolving and reversed ball-beared quadruple or quintuple nosepiece
Objectives
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope® objectives enables the bScope® to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives
• Brightfield models: E-Plan, E-plan IOS infinity corrected, Plan IOS infinity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S60x/0.85 and S100x/1.25 oil immersion objectives
• Phase contrast models: E-plan Phase, E-plan Phase IOS infinity corrected, Plan Phase IOS infinity corrected 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives
All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Stages
The bScope® is equipped with a scratch resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder
The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatique during long working sessions. The bScope® can be equipped with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with new purchased microscopes
Condenser for Brightfield
The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder
Condenser for Zernike Phase Contrast
The in height adjustable Zernike NA. 1.25 phase contrast disc condenser comes with phase annuli for 10/20/S40x and S100x phase contrast objectives, an iris diaphragm, a swing-out filter holder and also a BF position for bright field contrast. Phase contrast objectives in either EPL-PH, EPL-PHi or PL-PHi phase contrast version. Supplied with alignment telescope and green filter
Condenser for Simple Phase Contrast
The in height adjustable NA. 1.25 simple phase contrast condenser has a free slot for either a slider for 10/S40x phase contrast objectives OR a slider for 20/S100x phase contrast objectives. The condenser has an iris diaphragm and filter holder. The condenser also includes a BF position for bright field contrast. Phase contrast objectives in either EPL-PH, EPL-PHi or PL-PHi versions. Supplied with alignment telescope and green filter
Focusing
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11µm, 200µm per rotation, total travel approximately 19mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control
Polarisation
The bScope® has an integrated slot above the nosepiece for an optional polarization filter
NeoLED™ Illumination
The 3W adjustable Köhler NeoLED™ diascopic illumination is powered by an internal 100-240V power supply making it suitable for worldwide use. The innovative NeoLED™ design offers larger apertures, allowing the optical system of the bScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED™ is the low energy consumption, no heating and a long operating lifetime
Köhler Illumination
The Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source. Also
available as an option on non-IOS models.
Carrying Grip
The integrated carrying grip at the back of the microscope ensures safe
transportation.
Cable Storage System
bScope® allows users to easily insert the power cable into
the backside of the instrument, which enables easy storage.
The integrated carrying grip at the back of the microscope
ensures safe transportation of the microscope
Anti-Theft Slot
At the back of the microscope a Kensington Security Slot can
be used to secure the instrument from theft.
Ordering information:
bScope Digital
|
Accessories & Spare Parts |
|
|
Eyepieces |
|
|
BS.6010 |
HWF 10x/20 mm eyepiece ø 23.2mm tube |
|
BS.6010-P |
HWF 10x/20 mm eyepiece with pointer |
|
BS.6010-C |
HWF 10x/20 mm eyepiece with crosshair |
|
BS.6010-CM |
HWF 10x/20 mm eyepiece with 10/100 micrometer and crosshair |
|
BS.6012 |
HWF 12.5x/14 mm eyepiece ø 23.2mm tube |
|
BS.6015 |
HWF 15x/11 mm eyepiece ø 23.2mm tube |
|
BS.6020 |
HWF 20x/11 mm eyepiece ø 23.2mm tube |
|
BS.6099 |
Pair of eye cups for bScope® finity models |
|
Objectives |
|
|
BS.7104 |
E-plan EPL 4x/0.10 objective WD 37.0mm |
|
BS.7110 |
E-plan EPL 10x/0.25 objective< WD 6.61mm/p> |
|
BS.7120 |
E-plan EPL 20x/0.40 objective WD 1.85mm |
|
BS.7140 |
E-plan EPL S40x/0.65 objective WD 0.64mm |
|
BS.7160 |
E-plan EPL S60x/0.85 objective WD 0.20mm |
|
BS.7100 |
E-plan EPL S100x/1.25 oil immersion objective. WD 0.19mm |
|
BS.7510 |
E-Plan Phase EPLPH 10x/0.25 objective. WD 6.61mm |
|
BS.7520 |
E-Plan Phase EPLPH 20x/0.40 objective. WD 1.85mm |
|
BS.7540 |
E-Plan Phase EPLPH S40x/0.65 objective. WD 0.64mm |
|
BS.7500 |
E-Plan Phase EPLPH S100x/1.25 oil immersion objective. WD 0.19mm |
|
86.521 |
Plan PL S100x/1.25 oil immersion objective with iris diaphragm. WD 0.33mm |
|
Objectives IOS (infinity corrected) |
|
|
BS.8204 |
E-plan EPLi 4x/0.10 IOS objective. WD 18.9mm |
|
BS.8210 |
E-plan EPLi 10x/0.25 IOS objective. WD 5.95mm |
|
BS.8220 |
E-plan EPLi 20x/0.40 IOS objective. WD 2.61mm |
|
BS.8240 |
E-plan EPLi S40x/0.65 IOS objective. WD 0.78mm |
|
BS.8200 |
E-plan EPLi S100x/1.25 oil immersion IOS objective. WD 0.36mm |
|
BS.8404 |
Plan PLi 4x/0.10 IOS objective. WD 21.0mm |
|
BS.8410 |
Plan PLi 10x/0.25 IOS objective. WD 5.0mm |
|
BS.8420 |
Plan PLi 20x/0.40 IOS objective. WD 8.8mm |
|
BS.8440 |
Plan PLi S40x/0.65 IOS objective. WD 0.66mm |
|
BS.8400 |
Plan PLi S100x/1.25 oil immersion IOS objective. WD 0.36mm |
|
BS.8510 |
E-Plan Phase EPLPHi 10x/0.25 IOS objective. WD 5.95mm |
|
BS.8520 |
E-Plan Phase EPLPHi 20x/0.40 IOS objective. WD 2.61mm |
|
BS.8540 |
E-Plan Phase EPLPHi S40x/0.65 IOS objective. WD 0.78mm |
|
BS.8500 |
E-Plan Phase EPLPHi S100x/1.25 oil immersion IOS objective. WD 0.36mm |
|
BS.8710 |
Plan Phase PLPHi 10x/0.25 IOS objective. WD 5.00mm |
|
BS.8720 |
Plan Phase PLPHi 20x/0.40 IOS objective. WD 8.80mm |
|
BS.8740 |
Plan Phase PLPHi S40x/0.65 IOS objective. WD 0.66mm |
|
BS.8700 |
Plan Phase PLPHi S100x/1.25 oil immersion IOS objective. WD 0.36mm |
|
Condensers |
|
|
BS.9105 |
Swing-out 0.9/1.25 NA condenser |
|
BS.9170 |
Slider with darkfield stop for standard Abbe condenser with slot |
|
BS.9118 |
Zernike phase contrast kit with E-plan EPLPH 10/20/S40 and S100 oil phase contrast objectives, Zernike rotating condenser, telescope and green filter |
|
BS.9120 |
Zernike phase contrast kit with E-plan EPLPHi 10/20/S40 and S100 oil phase contrast IOS infinity corrected objectives, Zernike rotating condenser, telescope and green filter |
|
BS.9123 |
Zernike phase contrast kit with plan PLPH 10/20/S40 and S100 oil phase contrast objectives, Zernike rotating condenser, telescope and green filter |
|
BS.9126 |
Zernike phase contrast kit with plan PLPHi 10/20/S40 and S100 oil phase contrast IOS infinity corrected objectives, Zernike rotating condenser, telescope and green filter |
|
BS.9156 |
Phase contrast kit with Abbe condenser with slot for slider. E-plan EPLPH 10/S40x phase contrast objectives, slider with 10 and 40x annuli, telescope and green filter |
|
BS.9157 |
Phase contrast kit with Abbe condenser with slot for slider. E-plan EPLPH 20/S100x phase contrast objectives, slider with 20 and 100x annuli, telescope and green filter |
|
BS.9158 |
Phase contrast kit with Abbe condenser with slot for slider. E-plan EPLPH i 10/S40x phase contrast infinity corrected objectives, slider with 10 and 40x annuli, telescope and green filter |
|
BS.9159 |
Phase contrast kit with Abbe condenser with slot for slider. E-plan EPLPHi 20/S100x phase contrast infinity corrected objectives, slider with 20 and 100x annuli, telescope and green filter |
|
BS.9162 |
Phase contrast kit with Abbe condenser with slot for slider. Plan PLPH i 10/S40x phase contrast infinity corrected objectives, slider with 10 and 40x annuli, telescope and green filter |
|
BS.9163 |
Phase contrast kit with Abbe condenser with slot for slider. Plan PLPHi 20/S100x phase contrast infinity corrected objectives, slider with 20 and 100x annuli, telescope and green filter |
|
AE.3612-BS |
Darkfield condenser N.A. 1.20 cardioid type and 5 Watt LED |
|
Miscelleneous |
|
|
BS.9149 |
Alignment telescope for bScope® |
|
BS.9660 |
Polarisation kit: analyser under head and polariser on lamphouse |
|
BS.9880 |
Köhler attachment for bScope® |
|
BS.9993 |
NeoLED™ replacement unit |
|
AE.1370 |
Set rechargeable batteries |
|
AE.5130 |
Universal ø 23.2mm tube adapter with built-in 2x lens for SLR photo camera with APS-C sensor. Needs T2 adapter |
|
AE.5025 |
T2 ring for Nikon D SLR digital camera |
|
AE.5040 |
T2 ring for Canon EOS SLR digital camera |
|
PB.5155 |
Microscope glass slides 76 x 26 mm, ground edges, 50 pcs |
|
PB.5165 |
Cover glasses 18 x 18 mm, thickness, 0.13-0.17, 100 pcs |
|
PB.5168 |
Cover glasses 22 x 22 mm, thickness, 0.13-0.17, 100 pcs |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n = 1.482, 25 ml Refraction index n = 1.482 |
|
PB.5274 |
Iso propyl alcohol 99%, 200 ml |
|
PB.5275 |
Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabs |
|
BS.9900 |
Aluminium transport case for bScope |
Euromex BioBlue Biological Microscopes
These modern microscopes were specificaly developed for education and research with a special attention for ergonomy and quality. The eyepieces are secured and the microscope is equipped with adjustable specimen protection.
- WF 10x/18 or WF 10x/20 mm eyepiece(s)
- The eyepieces of monocular models are equipped with a pointer
- Mono- and binocular models, head 360° rotatable
- Reversed nosepiece for 4 objectives
- Semi-plan DIN 4x 10x 20x S40x S60x and S100x-oil objectives
- 120 x 120 mm plain stage with two object clamps or with integrated X-Y mechanical stage
- Adjustable specimen protection mechanism
- Coaxial coarse and fine adjustment with 0.002 mm graduations
- Height adjustable Abbe condensor N.A. 1.25 with iris diaphragm and filter holder
- Adjustable LED illumination with built-in power supply, rechargeable batteries and charger
Optical equipment
The DIN WF 10x/18 eyepieces of the BioBlue mono- and binocular models provide the ideal field of view. The achromatic Semiplan 45 mm DIN objectives are parafocally aligned on the 160 mm DIN tubes. When changing the magnification the image remains perfectly in focus and centered. The high precision mechanism of the coaxial course- and fine control combined with the spherical corrected optics enable the BioBlue to produce very sharp images. All models are equipped with a height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.
General technical information
- Eyepiece: 10x/18 wide field eyepiece, or 10x/20 on EVO models, secured with screw. Monocular models have an eyepiece with built-in pointer
- Observation tube: Monocular or Binocular Siedentopf type head, 360° rotatable; Tube length 160 mm
- Nosepiece Reversed nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Objectives: Achromatic colour coded DIN Semiplan objectives. The 40x, 60x and 100x-oil objectives are spring-mounted
- Protection: Built in protection system for specimen and objective
- Stages: A 120x120 mm plain stage or 130x130 mm stage with double layered mechanical X-Y stage are available. The translation range of the mechanical X-Y stage is 70x28 mm
- Focus control: Coaxial coarse- and fine adjustment knobs on both sides with 0.002 mm graduations. Friction of focus control can be adjusted
- Condenser: Height adjustable Abbe condenser N.A. 1.25 with iris diaphgram and filter holder
- Illumination:1W LED or NeoLED illumination system with internal power supply (85-230V) and 3 NiMH AA type batteries
- Packaging: Complete with spare fuse and dustcover in styrofoam case. Models equipped with S100x-oil objectives are delivered with 5 ml immersion oil
- Manual: English (also available in French, Dutch and German language)
BioBlue stand
The aluminium BioBlue stand has been designed to be very stable. A built-in protection system prevents any damage to the specimen and objective. The BB.4200 has a plain stage with 2 object clamps. All other models have a large 130x130 mm stage
with vernier and a integrated mechanical translation stage with 70x28 mm travel range.
LED illuminator
The BioBlue is equipped with a 1 Watt adjustable LED illuminator, which produces no heat. Besides the low power consumption the internal universal AC power supply makes use of an external vulnerable AC-DC power adapter completely redundant. The built-in rechargeable AA type batteries allow a 60 hours continuous operation of the microscope.
Ergonomic design
A lot of effort has been put into the ergonomic aspects of the BioBlue. A comfortable handgrip enables easy transportation. Ergonomically placed adjustment knobs minimize fatigue during long microscopy sessions. The general shape of the stand has been specifically designed to match today’s standard.
Ordering information:
|
BioBlue Models: |
||||||||||
|
Models |
Mono |
Bino |
Trino |
Digital |
S60x obj |
S100x obj |
LED |
NeoLED |
Mechanical Stage |
Polarisation |
|
BB.4200 |
• |
|
|
|
|
|
|
• |
|
|
|
BB.4220 |
• |
|
|
|
|
|
• |
• |
|
|
|
BB.4240 |
• |
|
|
|
• |
|
• |
• |
|
|
|
BB.4250 |
• |
|
|
|
|
• |
• |
• |
|
|
|
BB.4260 |
|
• |
|
|
|
• |
• |
|
• |
|
|
BB.4263 |
|
• |
|
|
• |
|
• |
|
• |
|
|
BB.4243 |
|
|
• |
|
• |
|
• |
|
• |
|
|
BB.4253 |
|
|
• |
|
|
• |
• |
|
• |
|
|
BB.4205 |
• |
|
|
• |
|
|
|
• |
|
|
|
BB.4225 |
• |
|
|
• |
|
|
• |
• |
|
|
|
BB.4245 |
• |
|
|
• |
• |
|
• |
• |
|
|
|
BB.4255 |
• |
|
|
• |
|
• |
• |
• |
|
|
|
BB.4267 |
|
• |
|
• |
|
• |
• |
|
• |
|
|
BB.4269 |
|
• |
|
• |
• |
|
• |
|
• |
|
|
BB.4220-POL1 |
• |
|
|
|
|
|
|
|
|
• |
|
BB.4240-POL1 |
• |
|
|
|
• |
|
|
|
|
• |
|
BB.4250-POL1 |
• |
|
|
|
|
|
• |
|
|
• |
|
BB.4260-POL1 |
|
• |
|
|
|
• |
|
|
|
• |
|
BB.4260-E |
|
• |
|
|
|
• |
|
Köhler |
• |
|
|
BB.4253-E |
|
|
• |
|
|
• |
|
Köhler |
• |
|
1 Polarisation models available as halogen version
|
Accessories: |
|||||
|
BB.4300 |
Aluminium case for BioBlue microscopes |
||||
|
BB.5511 |
Discussion head for BioBlue |
||||
|
AE.5572 |
Wide field 10x/18 eyepiece |
||||
|
AE.5573 |
Wide field 15x/12 eyepiece |
||||
|
AE.5581 |
Wide field 10x/18 eyepiece with pointer |
||||
|
AE.5582 |
Wide field 20x/11.5 eyepiece |
||||
|
AE.5591 |
Achromatic SMP DIN 4x objective |
||||
|
AE.5593 |
Achromatic SMP DIN 10x objective |
||||
|
AE.5594 |
Achromatic SMP DIN 20x objective |
||||
|
AE.5597 |
Achromatic SMP DIN S40x objective |
||||
|
AE.5599 |
Achromatic SMP DIN S60x objective |
||||
|
AE.5601 |
Achromatic SMP DIN S100x oil immersion objective |
||||
|
AE.5150 |
Polarisation set. The analyser is placed in the eyepiece and the polariser in the filter holder |
||||
|
AE.5153 |
Polarisation set for microscopes without mechanical stage. The analyser is placed on top of the eyepiece and the polariser is mounted in an attachable (90 x 65 mm.) stage. Rotating object holder with object clamps graduation 360º, accuracy 5º |
||||
|
AE.5504 |
Neutral density filter |
||||
|
AE.9981 |
1W LED replacement unit |
||||
|
AE.9991 |
1W NeoLED replacement unit |
||||
|
SL.5527 |
Spare fuses (pack of 10) |
||||
|
SL.5501 |
LED replacement unit |
||||
Euromex BioBlue.Lab Biological Microscopes
The larger BioBlue.Lab microscope models offer great functionality and are equipped with WF10x/20mm eyepieces with larger field of views and plan or plan phase IOS infinity corrected objectives
- Eyepieces Wide field eyepieces WF 10x/20mm
- Observation tubes Binocular and Trinocular 30° inclined Siedentopf tubes, 360° rotation. Dioptrical adjustment +/- 5 dioptre for one eyepiece. Infinity optical system. Interpupillary distance between eyepieces can be controlled from 55 to 75mm
- Nosepiece Reversed backwards oriented nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Objectives IOS Plan DIN objectives 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x-oil N.A. 1.25. The S40x and S100x-oil objectives are spring-mounted
- Stage 140x140 mm stage with double layered mechanical X-Y stage. The translation range of the mechanical X-Y stage is 75 x 50 mm
- Focus control Coaxial coarse- and fine adjustment knobs on both sides with 2µm graduations. Friction of focus control can be adjusted
- Condenser Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
- Illumination NeoLED illumination with intensity control. Internal 85-240 V power supply
- Packaging Complete with 5 ml immersion oil, spare fuse, manual and dustcover in styrofoam case
|
Features |
||||||||
|
Models |
Bino |
Trino |
4x/10x/S40x/S100x Plan |
4x/10x/S40x/S100x Plan IOS |
4x/10x/S40x/S100x Plan Phase |
10x/20x/S40x/S100x Plan Phase IOS |
Rackless Mechanical Stage |
NeoLED |
|
BB.1152-PL |
• |
|
• |
|
|
|
• |
• |
|
BB.1153-PL |
|
• |
• |
|
|
|
• |
• |
|
BB.1152-PLi |
• |
|
|
• |
|
|
• |
• |
|
BB.1153-PLi |
|
• |
|
• |
|
|
• |
• |
|
BB.1152-PLPH |
• |
|
|
|
• |
|
• |
• |
|
BB.1153-PLPH |
|
• |
|
|
• |
|
• |
• |
|
BB.1152-PLPHi |
• |
|
|
|
|
• |
• |
• |
|
BB.1153-PLPHi |
|
• |
|
|
|
• |
• |
• |
|
Accessories & Spare Parts |
|
|
BB.6010 |
WF 10x/20 mm eyepiece |
|
BB.6015 |
WF 15x/15 mm eyepiece |
|
BB.6020 |
WF 20x/11 mm eyepiece |
|
BB.6110 |
WF 10x/20 mm eyepiece with micrometer reticule |
|
BB.6099 |
Eyeshade |
|
BB.7200 |
IOS Plan DIN S100x/1.25-oil objective |
|
BB.7204 |
IOS Plan DIN 4x/0.10 objective |
|
BB.7210 |
IOS Plan DIN 10x/0.25 objective |
|
BB.7240 |
IOS Plan DIN S40x/0.65 objective |
|
BB.7700 |
Plan Phase IOS DIN S100x/1.25-oil objective |
|
BB.7710 |
Plan Phase IOS DIN 10x/0.25 objective |
|
BB.7720 |
Plan Phase IOS DIN 20x/0.40 objective |
|
BB.7740 |
Plan Phase IOS DIN S40x/0.65 objective |
|
BB.9880 |
Köhler attachment |
|
BB.9900 |
Aluminium case |
|
BB.9993 |
3W NeoLED replacement unit |
|
PB.5155 |
Microscope glass slides 76 x 26 mm, ground edges, 50 pcs |
|
PB.5168 |
Cover glasses 22 x 22 mm, thickness, 0.13-0.17, 100 pcs |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n = 1.482, 25 ml |
Euromex EcoBlue Biological Microscopes
These modern microscopes were specifically developed for education with a special attention for ergonomics and with an outstanding price/quality ratio. The eyepieces are secured and equipped with adjustable specimen protection
- Wide Field eyepieces HWF 10x/18
- The eyepieces are equiped with a pointer
- Monocular 360º rotatable head
- Binocular 360º rotatable head for polarization and digital monocular versions
- Revolving forwarded nosepiece for 4 objectives
- Achromatic DIN 4x 10x 20x S40x S60x and S100x-oil objectives
- 123 x 119 mm stage with two object clamps
- Optional mechanical stage
- 129 mm round stage for polarisation models
- Adjustable specimen protection mechanism
- Coaxial coarse and fine adjustment with 0.002 mm graduations
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
- Adjustable LED illumination with internal power supply
- The polarization models are equiped with adjustable halogen illumination with internal power supply
- The digital models are delivered with ImageFocus capture & analysis software, Windows XP, Vista, Seven compatible
|
Features |
|||||||||
|
Models |
Head |
Digital |
S60x obj |
S100x obj |
Mechanical Stage |
LED |
NeoLED |
Batteries |
Polarisation |
|
EC.1001 |
Mono |
|
|
|
|
• |
|
|
|
|
EC.1101 |
Mono |
|
|
• |
|
• |
|
|
|
|
EC.1601 |
Mono |
|
• |
|
|
• |
|
|
|
|
EC.1151 |
Mono |
|
|
• |
• |
• |
|
• |
|
|
EC.1152 |
Bino |
|
|
• |
• |
|
• |
• |
|
|
EC.1652 |
Bino |
|
|
• |
|
• |
|
• |
|
|
EC.1153 |
Trino |
|
|
• |
• |
|
• |
• |
|
|
EC.1653 |
Trino |
|
• |
|
• |
|
• |
• |
|
|
EC.1005 |
Mono |
• |
|
|
|
• |
|
|
|
|
EC.1105 |
Mono |
• |
|
• |
|
• |
|
|
|
|
EC.1605 |
Mono |
• |
• |
|
|
• |
|
|
|
|
EC.2001-POL |
Mono |
|
|
|
|
|
|
|
• |
|
EC.2101-POL |
Mono |
|
|
• |
|
|
|
|
• |
|
EC.2601-POL |
Mono |
|
• |
|
|
|
|
|
• |
|
Accessories & Spare Parts |
|
|
EC.6010 |
WF 10x/18 mm eyepiece |
|
EC.6015 |
HWF 15x/12 mm eyepiece |
|
EC.6110 |
HWF 10x/18 mm eyepiece with micrometer reticule |
|
EC.6099 |
Pair of eyeshades |
|
EC.7004 |
Achromatic 4x/0.10 objective |
|
EC.7010 |
Achromatic 10x/0.25 objective |
|
EC.7020 |
Achromatic 20x/0.40 objective |
|
EC.7040 |
Achromatic S40x/0.65 objective |
|
EC.7060 |
Achromatic S60x/0.85 objective |
|
EC.7000 |
Achromatic S100x/1.25 objective |
|
EC.9500 |
Attachable mechanical X-Y stage, translation range 51 x 26 mm, with double Vernier and separate horizontal adjustments knobs |
|
EC.9710 |
Frosted filter |
|
EC.9975 |
External mains/charger adapter 100-240 Vac/5 Vdc (50/60 Hz) |
|
EC.9981 |
1W LED replacement unit |
|
EC.9991 |
1W NeoLED replacement unit |
|
PB.5155 |
Microscope glass slides 76 x 26 mm, ground edges, 50 pcs |
|
PB.5168 |
Cover glasses 22 x 22 mm, thickness, 0.13-0.17, 100 pcs |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n = 1.482, 25 ml |
Euromex iScope® Biological Microscopes
The iScope® is available in various configurations suitable for Life and Biomedicial Sciences, high schools,universities but also for routine medical applications
Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror dark field, basic polarization and several epiillumination sources for fluorescence applications can be used. iScope® models with multiheads are also available for teaching purposes
Highlights
- EWF 10x/22 mm and EWF10x/20 mm eyepieces
- Binocular and trinocular models
- Optional multiheads:
- Optional tilting head:
- Quintuple reversed nosepiece:
- E-plan, plan and plan phase objectives:
- E-plan, plan and plan phase infinity corrected IOS objectives:
- 140 mm x 160 mm stage:
- 216 mm x 150 mm rackless stage:
- Optional ceramic stage:
- Height adjustable Abbe condenser N.A. 1.25:
- Cardioid mirror dark field condenser with 5 W NeoLED™ illumination:
- Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with internal 100-240 V power supply:
- iCare sensor for energy saving:
- CSS - Cable Storage System :
- 10 years warranty:
Technical Specification
Eyepieces
Extended Wide Field EWF plan 10x eyepieces with 20 mm field of view and adjustable diopter on the left eyepiece for finity corrected systems (ø 23.2 mm tube)
Extended Wide Field HWF plan 10x eyepieces with 22 mm field of view and adjustable diopter on both eyepieces for infinity corrected IOS plan and plan phase systems and adjustable diopter on the left tube for EPLi systems (ø 30 mm tube)
Heads
Binocular and trinocular Siedentopf type heads with 30° inclined
tubes. Interpupillary distance from 48 to 76 mm. ±5 diopter
adjustment(s). A unique rotating system allows the ergonomic
positioning of both tubes in a high (431 mm) and in a low
position (397 mm). The trinocular head comes with a ø 23.2 mm
photo port
Ergonomic tilting head
Optional ergonomic 5 to 35° tilting head, interpupillary distance 48-75 mm and optional photo attachment with standard ø 23.2 mm tube (only infinity corrected models) To order an iScope® with tilting head use reference IS.1158-xxx
Multihead system
The iScope® can be extended with a unique multihead system
for in total 2, 3 or 5 heads allowing simultaneous observation
of specimens.
The central attachment is equipped with a joystick to move
a green and red laser pointer across the entire field of views
of all heads. Configurations with one, two or four additional
viewing binocular heads, 30° inclined tubes and plan 4x, 10x,
S40, S100x oil immersion infinity corrected IOS objectives.
Each extra viewing binocular head is equipped with extended
wide field plan EWF 10x/20 mm eyepieces
(references: IS.1156-PLi-x, x = total number of heads)
Objectives
| E-Plan EPL | 4x/0.10 | 10x/0.25 | 20x/0.40(1) | S40x/0.65 | S60x/0.85(1) | S100x/1.25 oil(2) |
| E-Plan EPLi IOS | 4x/0.10 | 10x/0.25 | 20x/0.40(1) | S40x/0.65 | S100x/1.25 oil(2) | |
| Plan PLi IOS | 4x/0.10 | 10x/0.25 | 20x/0.40(1) | S40x/0.65 | S60x/0.85(1) | S100x/1.25 oil(2) |
| Plan phase PLPH | 10x/0.25 | 20x/0.40(1) | S40x/0.65 | S100x/1.25 oil(2) | ||
| Plan phase PLPHi IOS | 10x/0.25 | 20x/0.40(1) | S40x/0.65 | S100x/1.25 oil(2) |
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Stages
The iScope® can be equipped with three types of stages:
- 140 x 160 mm stage equipped with integrated 79 x 52 mm X-Y mechanical stage
- 216 x 150 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm X-Y mechanical stage. The iScope® rackless stage has no protruding parts, enables more smooth movements and is safer
- 220 x 157 mm ceramic stage with integrated 75 x 50 mm X-Y mechanical stage protects with a very tough ceramic surface against marks and scratches. The surface also ensures stray light not to be reflected from the stage into the objective
The iScope® can be supplied with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with new purchased microscopes. Higher temperatures can be achieved on special request
Condenser for Brightfield
The standard height adjustable Abbe N.A. 1.25 condenser for
brightfield accepts sliders with phase annuli suitable for plan
phase 10x/20x or S40x/S100x oil immersion IOS objectives
for economical phase contrast. With magnification indication.
A slider with a simple dark stop for dark field up to 400x
magnification is also available
Condenser for Zernike Phase Contrast
An optional height adjustable Zernike NA. 1.25 phase contrast
disc condenser with plan phase 10/20/S40x and S100x oil
immersion objectives and dark field stop position for dark
field contrast up to 400x magnification
Condenser for Darkfield
A state-of-the-art condenser equipped with reflective
cardioid mirrors, a high powered 5W LED and a S100x
objective with built-in iris diaphragm enable a real 1000x
magnification dark field solution
Cardioid dark field condenser with integrated power supply is
only available on models IS.1152-PLi/DF and IS.1153-PLi/DF.
By using IS.9150 and 86.521 an existing brightfield microscope
can be upgraded to dark field
Focusing
Coaxial coarse and fine adjustments, 200 graduations, 1 µm
per graduation, 200 µm per rotation, total travel approximately
24 mm. Supplied with an adjustable rack stop to prevent
damage to sample and objectives. The coarse adjustments
are equipped with friction control
Illumination
3W adjustable Köhler NeoLED™ diascopic illumination with
internal 100-240 V power supply
The innovative NeoLED™ design offer larger apertures,
allowing the optical system of the iScope® microscope to
produce images at higher resolutions, very close to the
theoretical diffraction limit of the optics. Other benefits of the
NeoLED™ is the low energy consumption, no heating and a
long operating lifetime
The Köhler illumination on models with IOS plan and plan
phase infinity corrected system provides high contrast and
a maximum achievable resolving power of the optics. Also
available for other models as option
Illumination for Fluorescence
The 6-positions rotating or 3-positions slider fluorescence
attachments are supplied with standard 100W HBO mercury
vapor light source for broad powerful light spectrum and
100-240V external power supply with indication of the life
time of 100W HBO lamp.
Supplied with standard fluorescence filters sets for blue and
green excitation and a UV protection shield
The iScope® fluorescence microscopes equipped with a
100W mercury vapour light source can be supplied with
more specific, optimized and application related fluorescence
filters sets
Two single position fluorescence attachments are supplied
with 460-495 nm 3W LED for blue excitation or 510-550 nm
3W LED light source for green excitation and 100-240 Vac/7.5 Vdc
external power supply.
iCare Sensor
The unique iCare Sensor is present on all iScope® microsocopes and has been developed to avoid unnecessary
loss of energy. The illumination of the microscope
automatically switches off shortly after microscopists
step away from their position
Cable Storage System
iScope® allows users to easily insert the power cable into
the backside of the instrument, which enables easy storage.
The integrated carrying grip at the back of the microscope
ensures safe transportation of the microscope
Ordering information:
|
iScope® Models: |
|||||||||
|
|
EWF |
E-plan objectives |
Plan Phase obj |
E-plan IOS obj |
Plan IOS obj |
Plan Phase IOS obj |
Plan Fluorescence IOS obj |
||
|
Binocular models |
|||||||||
|
IS.1152-EPL |
10x 20mm |
• |
|
|
|
|
|
||
|
IS.1152-PLPH |
10x 20mm |
|
• |
|
|
|
|
||
|
IS.1152-EPLi |
10x 22mm |
|
|
• |
|
|
|
||
|
IS.3152-EPLi |
10x 22mm |
|
|
• |
|
|
|
||
|
IS.1152-PLi |
10x 22mm |
|
|
|
• |
|
|
||
|
IS.3152-PLi |
10x 22mm |
|
|
|
• |
|
|
||
|
IS.1152-PLPHi |
10x 22mm |
|
|
|
|
• |
|
||
|
IS.3152-PLFi |
10x 22mm |
|
|
|
|
|
• |
||
|
Trinocular models |
|||||||||
|
IS.1153-EPL |
10x 20mm |
• |
|
|
|
|
|
||
|
IS.1153-PLPH |
10x 20mm |
|
• |
|
|
|
|
||
|
IS.1153-EPLi |
10x 22mm |
|
|
• |
|
|
|
||
|
IS.3153-EPLi |
10x 22mm |
|
|
• |
|
|
|
||
|
IS.1153-PLi |
10x 22mm |
|
|
|
• |
|
|
||
|
IS.3153-PLi |
10x 22mm |
|
|
|
• |
|
|
||
|
IS.1153-PLPHi |
10x 22mm |
|
|
|
|
• |
|
||
|
IS.3153-PLFi |
10x 22mm |
|
|
|
|
|
• |
||
|
Accessories & Spare Parts |
|
|
Eyepieces |
|
|
IS.6010 |
EWF 10x/20 mm eyepiece ø 23.2mm tube |
|
IS.6010-P |
EWF 10x/20 mm eyepiece with pointer |
|
IS.6010-CM |
EWF 10x/20 mm eyepiece with 10/100 micrometer and crosshair |
|
IS.6015 |
EWF 15x/16 mm eyepiece ø 23.2mm tube |
|
IS.6020 |
EWF 20x/12 mm eyepiece ø 23.2mm tube |
|
IS.6210 |
EWF 10x/22 mm eyepiece ø 30mm tube |
|
IS.6210-P |
EWF 10x/22 mm eyepiece with pointer |
|
IS.6210-CM |
EWF 10x/22 mm eyepiece with 10/100 micrometer and crosshair |
|
IS.6015 |
EWF 15x/16 mm eyepiece ø 30mm tube |
|
IS.6220 |
EWF 20x/12 mm eyepiece ø 30mm tube |
|
IS.6099 |
Pair of eye cups for iScope® finity models |
|
IS.6299 |
Pair of eye cups for iScope® infinity models |
|
Objectives |
|
|
IS.7104 |
E-plan EPL 4x/0.10 objective |
|
IS.7110 |
E-plan EPL 10x/0.25 objective |
|
IS.7120 |
E-plan EPL 20x/0.40 objective |
|
IS.7140 |
E-plan EPL S40x/0.65 objective |
|
IS.7160 |
E-plan EPL S60x/0.85 objective |
|
IS.7100 |
E-plan EPL S100x/1.25 objective |
|
IS.7710 |
Plan Phase PLPH 10x/0.25 objective |
|
IS.7720 |
Plan Phase PLPH 20x/0.40 objective |
|
IS.7740 |
Plan Phase PLPH S40x/0.65 objective |
|
IS.7700 |
Plan Phase PLPH S100x/1.25 objective |
|
Objectives IOS (infinity corrected) |
|
|
IS.8804 |
E-plan EPLi 4x/0.10 IOS objective |
|
IS.8810 |
E-plan EPLi 10x/0.25 IOS objective |
|
IS.8820 |
E-plan EPLi 20x/0.40 IOS objective |
|
IS.8840 |
E-plan EPLi S40x/0.65 IOS objective |
|
IS.8800 |
E-plan EPLi S100x/1.25 IOS objective |
|
IS.7204 |
Plan PLi 4x/0.10 IOS objective |
|
IS.7210 |
Plan PLi 10x/0.25 IOS objective |
|
IS.7220 |
Plan PLi 20x/0.25 IOS objective |
|
IS.7240 |
Plan PLi S40x/0.65 IOS objective |
|
IS.7260 |
Plan PLi S60x/0.85 IOS objective |
|
IS.7200 |
Plan PLi S100x/1.25 IOS objective |
|
IS.7404 |
Plan Fluorescence PLFi 4x/0.10 Fluorex IOS objective |
|
IS.7410 |
Plan Fluorescence PLFi 10x/0.25 Fluorex IOS objective |
|
IS.7420 |
Plan Fluorescence PLFi 20x/0.40 Fluorex IOS objective |
|
IS.7440 |
Plan Fluorescence PLFi S40x/0.65 Fluorex IOS objective |
|
IS.7400 |
Plan Fluorescence PLFi S100x/1.25 IOS objective |
|
IS.8910 |
Plan Phase PLPHi 10x/0.25 IOS objective |
|
IS.8920 |
Plan Phase PLPHi 20x/0.40 IOS objective |
|
IS.8940 |
Plan Phase PLPHi S40x/0.65 IOS objective |
|
IS.8900 |
Plan Phase PLPHi S100x/1.25 IOS objective |
|
86.521 |
Plan PL S100x/1.25 oil immersion objective with iris diaphragm |
|
Condensers |
|
|
IS.9102 |
Standard Abbe condenser 1.25 NA with slot for dark field and phase contrast sliders |
|
IS.9105 |
Swing-out 0.9/1.25 NA condenser |
|
IS.9124 |
Zernike phase contrast set with PLPH 10/20/40/100x objectives and rotating phase contrast condenser with bright and dark field position* |
|
IS.9127 |
Zernike phase contrast set with With PLPHi 10/20/40/100x IOS objectives and rotating phase contrast condenser with bright and dark field position* |
|
IS.9148 |
Telescope for phase contrast ø 30mm tube |
|
IS.9149 |
Telescope for phase contrast ø 23.2mm tube |
|
IS.9150 |
Cardioid dark field condenser with integrated 5W LED light source and external 100-240V mains adapter |
|
IS.9160 |
Phase contrast slider set with PLPH 10/40x objectives and slider* |
|
IS.9161 |
Phase contrast slider set slider with PLPH 20/100x objectives and slider* |
|
IS.9162 |
Phase contrast slider set slider with PLPH 10/40x IOS objectives and slider* |
|
IS.9163 |
Phase contrast slider set slider with PLPH 20/100x IOS objectives and slider* |
|
IS.9170 |
Slider with dark field stop |
|
*With green opaque filter
MODELS FOR DARK FIELD |
|
|
Filters |
|
|
IS.9600 |
Polarization for lamp house (45mm) |
|
IS.9700 |
Blue opaque for lamp house (45mm) |
|
IS.9702 |
Green opaque for lamp house (45mm) |
|
IS.9704 |
Yellow opaque for lamp house (45mm) |
|
IS.9710 |
White opaque for lamp house (45mm) |
|
Miscelleneous |
|
|
IS.5700 |
Ergonomic tilting head IOS series |
|
IS.9800 |
Photo tube for IS.5700 ø 23.2mm tube |
|
IS.9503 |
Large ceramic stage 220 x 157 mm Only with new purchased microscopes (add suffix /C) |
|
IS.9880 |
Köhler |
|
SL.5500 |
NeoLED™ replacement unit for iScope® |
|
PB.5155 |
Microscope glass slides 76 x 26 mm, ground edges, 50 pcs |
|
PB.5168 |
Cover glasses 22 x 22 mm, thickness, 0.13-0.17, 100 pcs |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n = 1.482, 25 ml |
Euromex MicroBlue Biological Microscopes
The modern MicroBlue microscopes are entry-level models for secondary schools. Equipped with three or four 35 mm parafocal objectives
- Monocular models with 45° inclined tubes
- Binocular models have 45° inclined tubes, adjustable interpupillary distance between 48 and 75 mm and a ±5 diopter adjustment on left tube
- Trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ±5 diopter adjustment on the left tube. The trinocular head also has a fixed light path beamsplitter (50:50) and generates an erect image
- Models with digital head are supplied with a integrated 1.3 MP 1/2.5" CMOS sensor with 1272 x 952 pixel resolution USB 2.0 camera
- All heads are 360° rotatable and secured
- Wide Field eyepiece(s) WF 10x/18 mm. Monocular version with pointer
- Revolving nosepiece for maximum three or four objectives
- Achromatic DIN 35 mm parafocal objectives 4x 10x 20x S40x S60x S100x
- 105 x 105 mm stage with object clamps or 115 x 100 mm stage with mechanical XY stage 30 x 70 mm
- Coaxial coarse and fine adjustments with friction adjustment
- Adjustable rack-stop for protection of slides and objectives
- Abbe condenser or fixed lens condenser N.A. 0,65, both with iris diaphragm
- 1W LED Illumination with rechargeable batteries and external power supply/charger
- Supplied with dust cover and user manual in polystyrene box. Models with 100x objectives are supplied with 5ml immersion oil
|
Features |
||||||||
|
Models |
Head |
Maximum Objectives |
4/10/S40x obj |
S60x obj |
S100x obj |
Mechanical Stage |
1W LED |
NeoLED |
|
MB.1001 |
Mono |
3 |
• |
|
|
|
• |
|
|
MB.1051 |
Mono |
4 |
• |
|
|
• |
• |
|
|
MB.1651 |
Mono |
4 |
• |
• |
|
• |
• |
|
|
MB.1151 |
Mono |
4 |
• |
|
• |
• |
• |
|
|
MB.1052 |
Bino |
4 |
• |
|
|
• |
|
• |
|
MB.1652 |
Bino |
4 |
• |
• |
|
• |
|
• |
|
MB.1152 |
Bino |
4 |
• |
|
• |
• |
|
• |
|
MB.1053 |
Trino |
4 |
• |
|
|
• |
|
• |
|
MB.1163 |
Trino |
4 |
• |
• |
|
• |
|
• |
|
MB.1153 |
Trino |
4 |
• |
|
• |
• |
|
• |
|
MB.1055 |
Digital Mono |
4 |
• |
|
|
• |
|
• |
|
MB.1165 |
Digital Mono |
4 |
• |
• |
|
• |
|
• |
|
MB.1155 |
Digital Mono |
4 |
• |
|
• |
• |
|
• |
|
Accessories & Spare Parts |
|
|
MB.6010-P |
Wide field WF 10x/18 mm eyepiece with pointer |
|
MB.6010-M |
WF 10x/18 mm eyepiece with micrometer scale |
|
MB.6015 |
Wide field WF 15x/11 mm eyepiece |
|
MB.6020 |
Wide field WF 20x/9 mm eyepiece |
|
MB.6110 |
Wide field WF 10x/18 mm eyepiece with micrometer |
|
MB.6099 |
Pair of eyeshades |
|
MB.7004 |
Achromatic 4x/0.10 objective, 35 mm parafocal |
|
MB.7010 |
Achromatic 10x/0.25 objective, 35 mm parafocal |
|
MB.7020 |
Achromatic 20x/0.40 objective, 35 mm parafocal |
|
MB.7040 |
Achromatic S40x/0.65 objective, 35 mm parafocal |
|
MB.7060 |
Achromatic S60x/0.85 objective, 35 mm parafocal |
|
MB.7000 |
Achromatic S100x/1.25 objective, 35 mm parafocal |
|
MB.9710 |
Attachable mechanical stage |
|
MB.9975 |
External mains/charger adapter 100-240 Vac/5 Vdc (50/60 Hz) |
|
MB.9981 |
1W LED replacement unit |
|
EC.9710 |
Frosted filter |
|
PB.5155 |
Microscope glass slides 76 x 26 mm, ground edges, 50 pcs |
|
PB.5168 |
Cover glasses 22 x 22 mm, thickness, 0.13-0.17, 100 pcs |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n = 1.482, 25 ml |
Euromex Oxion Series Biological Microscopes
The Oxion series has been designed with all kind of Life Sciences applications and great durability in mind. This resulted in a modern, robust and high level microscope for everyday use, equipped with excellent optical and mechanical components. Specific attention to production methods resulted also in an excellent price / performance ratio
The Oxion features a unique swiveling concept allowing the viewing height to be easily matched with the user height and, compared to traditional microscopes, add approximately 40 mm extra viewing height.
The Siedentopf tubes have standard HWF Plan 10x eyepieces with 22 mm field of view and adjustable diopter. The interpupillary distance is 50 to 75 mm. Eyepieces can be secured to the tubes. The Oxion head has an ergonomic viewing angle of 30°.
The Oxion is available in various configurations suitable for Life Sciences applications in laboratories, high schools and universities but also for routine medical applications and veterinary medicine. Besides the brightfield contrast method, configurations with phase contrast, darkfield contrast, simple polarization or fluorescence illumination can be used.
The computer optimized design of the Oxion ensures high stability and durability which results in an advanced ergonomical all-round microscope. Below the head, the microscope features an opening for insertion of an optional polarizer. A handgrip at the back of the stand allows easy transportation of the microscope. The large 150 x 140 mm table with 76 x 50 mm translation mechanical stage and a reversed nosepiece for up to 5 objectives makes the Oxion suitable for advanced laboratory work. Ergonomically placed adjustment knobs minimize fatigue during long microscopy sessions.
The height adjustable Abbe N.A. 1.25 condenser accepts sliders for economical phase contrast and darkfield applications. The Oxion can also be equipped with a heating stage which can be set up to 50°C by a real PID controller. Higher temperatures can be achieved on special request.
The 3 Watt adjustable LED illumination offers the user a comfortable illumination with a very constant colour temperature and a very long term usage. The Köhler illumination enables highest contrast and maximum achievable resolving power of the optics. Besides low energy consumption and no heating, the high powered LED has a long operating lifetime.
The 100 Watt mercury-vapor light source enables a large range of wavelengths to be used for various fluorophores. The vertical light reflected illuminator can accept up to 4 cubes at the same time for appropriate exciter and emitter filters.
Contrast methods for a large range of applications
Brightfield
A large scale of applications is covered by the common light-transmitted brightfield
contrast method. Besides the standard Plan achromatic 4x, 10x, 20x, S40x, S60x, S100x oil brightfield, the Oxion can also be engaged with newly designed high contrast Plan semi-apochromatic objectives. The improved correction of these objectives results in lower aberrations and improved resolving power for the complete optical system.
Phase contrast
The observation of living cells and specimens with poor contrast is made possible by the use of the phase contrast method. Two different phase contrast equipments are available. All phase plan contrasts objectives can be used with both systems. A first economical way is to use sliders, each equipped with phase contrast rings. The first slider features phase rings for 10x and S40x and the second for 20x and S100x plan phase contrast objectives. These phase contrast sliders are simply inserted into the standard condenser of the Oxion.
The second method is to use one of the 2 available Zernike phase contrast disc condensers. The first Zernike disc condenser allows bright field contrast and phase contrast for 10x, 20x, S40x and S100x phase Plan objectives. The second one allows brightfield and phase plan contrast for 10x, S40x, S100x phase plan objectives and also features a darkfield contrast method for magnifications up to 400x. Both condensers are delivered with a telescope to adjust the phase contrast rings.
Fluorescence
Today, fluorescence microscopy offers a faster and reliable identification of infectious diseases and allows observation of complex interactions in unstained living cells. The high contrast Plan semi-apochromaticFluarex 4x, 10x, 20x, S40x and S100x oil objectives combined with the 22 mm. eyepieces of the Oxion, offer the necessary resolution and field of view for fast detection of small pathogens.
A 100 Watt mercury –vapor light source combined with the high performance fluorescence filters produce excellent contrasted images with an outstanding signal-to-noise ratio.
Technical Data
- Optical system: Infinity colour corrected optical system
- Parafocal distance: 45 mm
- Eyepiece tubes:
Swiveling Siedentopf 30° tubes with 50 to 75 mm interpupillary distance
Swiveling Siedentopf 45° tubes with 54 to 75 mm interpupillary distance for Oxion inverted models
- Eyepieces:
PL 10x/22 with adjustable diopter
PL 10x/20 with adjustable diopter for Oxion MultiHead systems
- Nosepiece: Reversed quintuple nosepiece
- Objectives:
Infinity Semi Plan achromatic bright field 4x, 10x, S40x, S100x oil
Infinity Plan achromatic bright field 4x, 10x, 20x, S40x, S60x, S100x oil
Infinity Plan achromatic phase contrast 10x, 20x, S40x and S100x oil
Infinity Plan Semi-Apochromatic Fluarex 4x, 10x, 20x, S40x and S100x oil
Infinity Plan M-IOS 5x, 10x, 20x and Plan Semi-Apochromatic 50x and 100x for Material Science models
Infinity Plan Phase 4x, 10x, 20x and 40x IOS objective for Oxion inverted models
- Stage:
150 x 140 with mechanical 76 x 50 mm translation stage
250 x 160 with mechanical 120 x 78 mm translation stage for Oxion inverted models. Oxion Inverted models delivered with metal inserts for 76 x 26 mm slides, 35 mm Petri dish, Teraski holder
- Focus: Coaxial coarse and fine adjustment with 30 mm travel range (9 mm for Oxion inverted models) and 0.20μm precision. Friction control and object protection
- Condenser: Abbe condenser N.A. 1,25, height adjustable with iris diaphragm. Oxion inverted models delivered with N.A. 0.30 / 72 mm working distance condenser with phase contrast slider
- Illumination:
Adjustable 3 W NeoLed for all diascopic illuminations with internal power supply for mains 85-240 V
Reflected 100 W mercury-vapor light source for fluorescence models, with external power supply for mains 85-240 V
Reflected 3 W 455 nm NeoLed illumination with external power supply for mains 85-240 V for FluoLed models
Adjustable 3 W NeoLed for reflected episcopic illumination with external power supply for mains 85-240 V
Adjustable 5 W NeoLed illumination with external power supply for mains 85-240 V for Oxion inverted models
- Dimensions: 415D x 397H mm.
- Weight: Approx. 10 kg
Ordering information:
|
Model |
Head |
Objectives |
|
Life Science microscopes for bright- & phase contrast applications |
||
|
OX.3012 |
Bino |
Infinity Semi Plan 4x, 10x, S40x, S100x |
|
OX.3015 |
Trino |
Infinity Semi Plan 4x, 10x, S40x, S100x |
|
|
||
|
OX.3020 |
Bino |
Infinity Plan achromatic 4x, 10x, S40x |
|
OX.3025 |
Trino |
Infinity Plan achromatic 4x, 10x, S40x |
|
OX.3030 |
Bino |
Infinity Plan achromatic 4x, 10x, S40x, S100x oil |
|
OX.3035 |
Trino |
Infinity Plan achromatic 4x, 10x, S40x, S100x oil |
|
|
|
|
|
OX.3040 |
Bino |
Infinity Plan phase achromatic 10x, 20x, S40x, S100x oil |
|
OX.3045 |
Trino |
Infinity Plan phase achromatic 10x, 20x, S40x, S100x oil |
|
OX.3042 |
Bino |
Infinity Plan phase achromatic 10x, S40x, S100x oil and darkfield stop |
|
OX.3047 |
Trino |
Infinity Plan phase achromatic 10x, S40x, S100x oil and darkfield stop |
|
|
||
|
OX.3050 |
Bino |
Infinity Plan semi-apochromatic 4x, 10x, S40x |
|
OX.3055 |
Trino |
Infinity Plan semi-apochromatic 4x, 10x, S40x |
|
OX.3060 |
Bino |
Infinity Plan semi-apochromatic 4x, 10x, S40x, S100x oil |
|
OX.3065 |
Trino |
Infinity Plan semi-apochromatic 4x, 10x, S40x, S100x oil |
|
|
||
|
OX.5602 |
Bino |
Multihead 2 heads with Infinity Plan 4x, 10x, S40x, S100x oil |
|
OX.5603 |
Bino |
Multihead 3 heads with Infinity Plan 4x, 10x, S40x, S100x oil |
|
OX.5605 |
Bino |
Multihead 5 heads with Infinity Plan 4x, 10x, S40x, S100x oil |
|
For Life Science microscopes equipped with a heating stage, order also AE.5168-O when ordering a new microscope |
||
|
|
||
|
Life Science microscopes for dark field contrast applications |
||
|
OX.3064 |
Trino |
Infinity Plan 4x, 10x, S40x, S100x-oil with iris & cardioid dark field condenser and 5W LED |
|
|
||
|
Life Science microscopes for fluorescence applications |
||
|
OX.3067 |
Trino |
Infinity Plan 4x, 10x, S40x, S100x-oil |
|
OX.3070 |
Bino |
Infinity Plan semi-apochromatic Fluarex 4x, 10x, S40x |
|
OX.3075 |
Trino |
Infinity Plan semi-apochromatic Fluarex 4x, 10x, S40x |
|
OX.3080 |
Bino |
Infinity Plan semi-apochromatic Fluarex 4x, 10x, S40x, S100x oil |
|
OX.3085 |
Trino |
Infinity Plan semi-apochromatic Fluarex 4x, 10x, S40x, S100x oil |
|
The models OX.3067, OX.3070, OX.3075, OX.3080 and OX.3085 are equipped with a fluorescence illuminator for max. 4 filter blocks |
||
|
|
||
|
OX.3230 |
Bino |
Infinity Plan 4x, 10x, S40x, S100x-oil with 455 nm FluoLed |
|
OX.3235 |
Trino |
Infinity Plan 4x, 10x, S40x, S100x-oil with 455 nm FluoLed |
|
OX.3232 |
Bino |
Infinity Plan 4x, 10x, S40x, S100x-oil Fluarex with 455 nm FluoLed |
|
OX.3237 |
Trino |
Infinity Plan 4x, 10x, S40x, S100x-oil Fluarex with 455 nm FluoLed |
|
The models OX.3230, OX.3235, OX.3232, and OX.3237 are equipped with the fluorescence 455 nm FluoLed module with one filter block |
||
|
|
||
|
Life Science inverted microscopes for cell culture applications |
||
|
|
||
|
Material Science microscope |
||
|
OX.3240 |
Trino |
Infinity M-IOS Plan 5x, 10x and Plan Semi-Apo 50x |
|
OX.3245 |
Trino |
Infinity M-IOS Plan 5x, 10x and Plan Semi-Apo 50x, 100x |
NOTE: The models OX.3070, OX.3075, OX.3080 and OX.3085 are equipped with the fluorescence illuminator and power supply. Add “heat” suffix after the model number to order a stage with heating elements and temperature controller.
Accessories:
|
Eyepieces and eyeshades |
|
|
AE.3210 |
HWF 10x/22 eyepiece |
|
AE.3215 |
HWF 15x/13 eyepiece |
|
AE.3223 |
HWF 10x/22 eyepiece with micrometer graticule |
|
AE.3225 |
Pair of eyeshades |
|
Objectives |
|
|
AE.3104 |
Infinity Plan Achromatic 4x objective |
|
AE.3106 |
Infinity Plan Achromatic 10x objective |
|
AE.3108 |
Infinity Plan Achromatic 20x objective |
|
AE.3110 |
Infinity Plan Achromatic S40x objective |
|
AE.3112 |
Infinity Plan Achromatic S60x objective |
|
AE.3114 |
Infinity Plan Achromatic S100x objective |
|
|
|
|
AE.3126 |
Infinity Plan Phase Achromatic 10x objective |
|
AE.3128 |
Infinity Plan Phase Achromatic 20x objective |
|
AE.3130 |
Infinity Plan Phase Achromatic S40x objective |
|
AE.3134 |
Infinity Plan Phase Achromatic S100x objective |
|
|
|
|
AE.3180 |
Telescope for phase contrast alignment |
|
|
|
|
AE.3144 |
Infinity Plan Semi-Achromatic 4x objective |
|
AE.3146 |
Infinity Plan Semi-Achromatic 10x objective |
|
AE.3148 |
Infinity Plan Semi-Achromatic 20x objective |
|
AE.3152 |
Infinity Plan Semi-Achromatic S40x objective |
|
AE.3156 |
Infinity Plan Semi-Achromatic S100x objective |
|
Fluorescence |
|
|
AE.3240 |
Fluorescence illuminator including power supply |
|
AE.3244 |
Fluorescence filter block without filters and beamsplitter |
|
AE.3245 |
Fluorescence filter block for eGFP, FITC, Alexa Fluor 488, Cy2, DiO, Fluo-4, FluorX, |
|
AE.3246 |
Fluorescence filter block for Alexa Fluor 568 & 594, Cy3.5, MitoTracker Red, Rhodamine Red, X-Rhodamine, SpectrumRed, Texas Red, Texas Red-X, 5-ROX |
|
AE.3247 |
Fluorescence filter block for BOBO-1, Cerulean, CFP, POPO-1, SpectrumAqua |
|
AE.3248 |
Fluorescence filter block for Alexa Fluor 350, AMCA/AMCA-X, Cascade Blue, DAPI Fast Blue, Hoechst 33342 & 33258, LysoTracker Red, Marina Blue |
NOTE: Other beamsplitters, exciter and emitter filters available from a separate brochure
|
Sliders and phase contrast sets |
|
|
AE.3183 |
Phase contrast Zernike condenser with PLPH 10x, S40x, S100x oil and darkfield stop |
|
AE.3184 |
Phase contrast Zernike condenser with PLPH 10x, 20x, S40x, S100x oil |
|
AE.3185 |
Slider with darkfield stop |
|
AE.3187 |
Slider with phase rings for 10x and S40x Plan phase contrast objectives |
|
AE.3189 |
Slider with phase rings for 20x and S100x oil Plan phase contrast objectives |
|
Miscellaneous |
|
|
AE.3190 |
Polariser / Analyser set |
|
AE.3194 |
Polariser for lamphouse |
|
AE.3192 |
Polariser slider for nosepiece |
|
AE.3196 |
Neutral density filter 45 mm. |
|
AE.3198 |
Blue filter 45 mm. |
|
AE.3200 |
Yellow filter 45 mm. |
|
AE.3202 |
Green filter 45 mm. |
|
|
|
|
AE.5057 |
Photo adaptor 0.5x magnification for ½ inch C/CS mount cameras |
|
AE.5527 |
Photo adaptor for SLR camera without T2 adaptor |
|
AE.5040 |
T2 adaptor for Canon EOS SLR camera |
|
AE.5025 |
T2 adaptor for Nikon SLR camera |
|
AE.5045 |
3.2x lens for AE.5527 |
|
|
|
|
PB.5155 |
Microscope 76 x 26 mm. glass slides, ground edges, pack of 50 |
|
PB.5168 |
Cover glasses 22 x 22 mm., thickness 0.13-0.17 mm., pack of 100 |
|
PB.5255 |
Immersion oil n=1.482, 25ml. |
|
PB.5274 |
Isopropanol 99%, cleaning liquid, 200ml. |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
Spare parts |
|
|
SL.1385 |
100 Watt mercury-vapour lamp for AE.3220 illuminator |
|
SL.5510 |
3W LED replacement for Oxion |
|
AE.3199 |
Glass fuses 3.15A, 250V, pack of 10 |

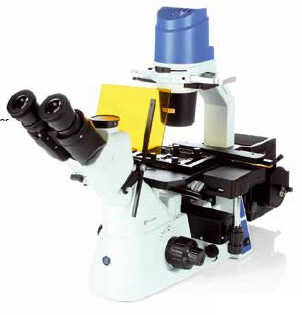

Euromex Oxion Inverso Microscopes for Life Sciences
The Oxion Inverso inverted microscopes are useful for observation of living organisms and tissues cultures in cell culture dishes and flasks. The Oxion Inverso series are available with brightfield and phase contrast as well as for fluorescence microscopy. Dedicated objectives are suitable for 1.2 mm thick glass bottoms of cell culture dishes and flasks
Highlights
- Life Science applications
- Observation of tissue cultures, living cells
- Brightfield, phase contrast and fluorescence:
- Long working distance IO S plan achromatic objectives:
- Revolving quintuple nosepiece:
- 5W LED transmitted illumination:
- 100W mercury vapor lamp for fluorescence:
- 10 years warranty:
Technical Specification
Eyepieces
Heads
Trinocular 45° inclined tubes with extended low and high
positions for eyepieces. One diopter adjustment on left
eyepiece. Interpupillary distance of 54 to 75 mm.
Trinocular head with 100-0% and 80-20% positions
Nosepieces
Revolving quintuple nosepiece on ball-bearings
Objectives for Brightfield
(models OX.2003-PL and OX.2053-PL)
Infinity color corrected long working distance plan
10x/0.25, 20x/0.40, 40x/0.60 IOS objectives.
An optional 60x/0.70 IOS objective is also available
Objectives for Phase Contrast
(models OX.2003-PL and OX.2053-PL)
Infinity color corrected long working distance plan
10x/0.25, 20x/0.40, 40x/0.60 IOS objectives.
An optional 60x/0.70 IOS objective is also available
Objectives for Brightfield and Fluorescence Microscopy
(models OX.2253-PLF and OX.2453-PLF)
Infinity color corrected long working distance plan Fluarex
10x/0.30, 20x/0.45, 40x/0.65 IOS objectives. An optional plan
Fluarex 60x/0.75 IOS objective is also available
Objectives for Phase Contrast and Fluorescence Microscopy
(models OX.2253-PLPHF and OX.2453-PLPHF)
Infinity color corrected long working distance plan fluarex
10x/0.30 and plan phase fluarex 20x/0.45 and S40x/0.65 IOS
objectives
All objectives corrected for 1.2 mm thickness. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Stage
Stage 250 x 230 mm equipped with a coaxial mechanical
120 x 78 mm X-Y stage, delivered with:
- metallic insert for ø35 mm cell culture dish dishes
- 76 x 26 mm slide holder
- glass insert with hole
- optional universal cell culture dish holder
Condenser
N.A. 0.30 condenser with iris diaphragm.
Working distance 72 mm
The models for the phase contrast OX.2003-PLPH, OX.2053- PLPH, OX.2253-PLPHF and OX.2453-PLPHF are delivered with a slider with 4x/10x and 20x/40x pre-centered phase rings
Focusing Adjustment
Coaxial 25 mm coarse and fine adjustments, 2 µm precision
and with friction adjustment
Illumination
Transmitted 5W LED Intensity adjustable with internal
100-240V power supply. Fuse holder 3.15A / 250V
The fluorescence models are equipped with a reflected 100W HBO mercury vapor light source with external 100-240V power supply, fuse holder 3.15A / 250V, UV protection shield
Filters for Phase Contrast Models
Interference filter 550 nm green and blue filter, 45 mm diameter
Standard Fluorescence Filters
(for fluorescence models)
The fluorescence models OX.2253-PLF and OX.2453-PLF
are standard supplied with 2 filter sets for excitation:
• in the blue spectrum, OX.9745, EX465-495 (BP) DM505 (LP) EM515-558 (BP)
• in the green spectrum, OX.9746, EX520-600 (BP) DM600 (LP) EM605-665 (BP)
The fluorescence models OX.2253-PLF and OX.2453-PLPHF
equipped with a 4 positions filter rail equipped with 3
standard filter sets for excitation:
• in the blue spectrum,OX.9745, EX465-495 (BP) DM505 (LP) EM515-558 (BP)
• in the green spectrum, OX.9746, EX520-600 (BP) DM600(LP) EM605-665 (BP)
• in the UV spectrum, OX.9747, EX361-381 (BP) D415 (LP) EM435-495 (BP)
Packaging
Supplied with power cord, dust cover and user manual.
Phase contrast models are supplied with green filter and
centering telescope.
Models
LWD Plan 10x/20x/40x objectives LWD Plan Phase 10x/20x/40x objectives LWD Plan Fluorex 10x/20x/40x objectives LWD Plan fluarex 10x and plan phase fluarex 20x/40x objectives 2 position filter block 4 position filter block Mechanical Stage
OX.2003-PL •
OX.2053-PL • •
OX.2003-PLPH •
OX.2053-PLPH • •
OX.2253-PLF • • •
OX.2453-PLF • • •
OX.2253-PLPHF • • •
OX.2453-PLPHF • • •
Ordering Information:
|
Eyepieces |
|
|
OX.6010 |
HWF 10x/22 mm eyepiece |
|
OX.6015 |
HWF 15x/16 mm eyepiece |
|
OX.6110 |
HWF 10x/22 mm eyepiece with micrometer reticule |
|
OX.6099 |
Pair of eyecups |
|
Objectives (1) |
|
|
Brightfield |
|
|
OX.8304 |
Plan LWD 4x/0.10 infinity corrected IOS objective, working distance 22 mm |
|
OX.8310 |
Plan LWD 20x/0.40 infinity corrected IOS objective, working distance 7.66 mm |
|
OX.8340 |
Plan LWD 40x/0.60 infinity corrected IOS objective, working distance 3.71 mm |
|
OX.8360 |
Plan LWD 60x/0.70 infinity corrected IOS objective, working distance 2.5 mm |
|
Brightfield and Fluorescence |
|
|
OX.8604 |
Plan fluarex LWD 4x/0.13 infinity corrected IOS objective, working distance 18.5 mm |
|
OX.8610 |
Plan fluarex LWD 10x/0.30 infinity corrected IOS objective, working distance 7.1 mm |
|
OX.8620 |
Plan fluarex LWD 20x/0.45 infinity corrected IOS objective, working distance 5.91 mm |
|
OX.8640 |
Plan fluarex LWD 40x/0.65 infinity corrected IOS objective, working distance 1.61 mm |
|
OX.8660 |
Plan fluarex LWD 60x/0.75 infinity corrected IOS objective, working distance 1.04 mm |
|
Phase Contrast (2) |
|
|
OX.8404 |
Plan phase LWD 4x/0.13 infinity corrected IOS objective, working distance 10.4 mm |
|
OX.8410 |
Plan phase LWD 10x/0.25 infinity corrected IOS objective, working distance 7.94 mm |
|
OX.8420 |
Plan phase LWD 20x/0.40 infinity corrected IOS objective, working distance 7.66 mm |
|
OX.8440 |
Plan phase LWD 40x/0.60 infinity corrected IOS objective, working distance 3.71 mm |
|
Fluorescence and Phase Contrast (2) |
|
|
OX.8720 |
Plan phase fluarex LWD 20x/0.45 infinity corrected IOS objective. Working distance 5.91 mm |
|
OX.8740 |
Plan phase fluarex LWD 40x/0.65 infinity corrected IOS objective. Working distance 1.1 mm |
|
(1) All objectives corrected for 1.2 mm cover glass thickness. All optical parts are anti-fungus treated |
|
|
General Purpose Fluorescence Filter Sets |
|
|
OX.9745 |
Fluorescence filter block for Blue excitation 465-495 nm |
|
OX.9746 |
Fluorescence filter block for Green excitation 520-600 nm |
|
OX.9747 |
Fluorescence filter block for UV excitation 361-389 nm |
|
OX.9748 |
Fluorescence filter block for Violet excitation 361-389 nm |
|
Accessories |
|
|
OX.9149 |
Telescope for phase contrast alignment |
|
OX.9190 |
Slider with 4x/10x and 20x/40x phase contrast annuli |
|
OX.9500 |
Mechanical coaxial X-Y 120 x 78 mm stage |
|
OX.9506 |
Transparent glass insert with hole |
|
OX.9512 |
Insert with 76 x 26 mm slide holder and ø 54 mm cell culture dish holder |
|
OX.9535 |
Metal insert for ø35 mm cell culture dish holder |
|
OX.9550 |
Stage extension plate |
|
OX.9599 |
Universal cell culture dish holder |
|
OX.9985 |
5 W NeoLED replacement unit |
|
OX.9700 |
Blue filter |
|
OX.9702 |
Green filter |
|
OX.9703 |
IR cut-off filter |
|
OX.9749 |
Empty Filter block |
|
OX.9753 |
Filter block rail, 3 positions |
|
OX.9754 |
Filter block rail, 4 positions |
|
Photo Adapters |
|
|
OX.9810 |
CS/C mount with 1.0x objective |
|
OX.9833 |
C-mount adapter with 0.33x objective for Oxion microscopes and 1/3" cameras |
|
OX.9850 |
C-mount adapter with 0.5x objective for Oxion and Oxion Inverso microscopes and 1/2" cameras |
|
Miscellaneous |
|
|
AE.5120 |
Standard 23.2 mm diameter tube for Oxion photo port |
|
AE.5130 |
Universal SLR camera adapter with 2x projection lens for 23.2 mm tubes Need T2 adapter and AE.5120 |
|
AE.5025 |
T2 adapter for Nikon D digital SLR cameras |
|
AE.5040 |
T2 adapter for Canon EOS digital SLR cameras |
|
AE.3199 |
Glass fuses 3.15 A 250 V packed, per 10 pieces |
|
PB.5155 |
Microscope 76 x 26 mm. glass slides, ground edges, pack of 50 |
|
PB.5165 |
Cover glasses 18 x 18 mm, thickness 0.13 - 0.17 mm, 100 pieces |
|
PB.5168 |
Cover glasses 22 x 22 mm., thickness 0.13-0.17 mm., pack of 100 |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n=1.482, 25ml. |
|
PB.5274 |
Isopropanol 99%, cleaning liquid, 200ml. |
|
PB.5275 |
Cleaning kit: lens cleaning fluid, lint free lens tissue, brush, air blower, cotton swabs |
Euromex E Series Stereo and Z Series Stereo Zoom Microscopes
Stereo microscopes are often used in science and industry for research, inspection, manufacturing or modification of extremely small objects. Due to its high contrast and wide field of view, stereo microscopes are perfectly suitable for such applications.
The E Series and Z Series microscopes are used in a wide variety of applications for medical doctors, biologists, dental technicians and renovators. In the electronics, fine mechanical, galvanic, graphical and food industry these high quality microscope series are used for research and quality control due to their brilliant optical performance.
The E Series and Z Series microscopes can be configured in accordance with customer specifications due to its modular components. For each application it is possible to choose the right stereo head and stand and with the wide choice of supplementary objectives and eyepieces the desired magnifications can simply be constructed. The robust metal frame of these microscopes guarantees a long life time.
Optical System
The super wide field eyepieces 10x/23 together with the highly light transmitting objectives provide an outstanding image clarity with a large field of view and high contrast. This results in comfortable viewing even after long hours of observation.
The E Series has two pairs of objectives mounted in a revolving nosepiece. The left tube has diopter adjustment.
The magnification of the zoom objective of the Z Series can smoothly be adjusted through easy to operate ergonomic control knobs located on both sides of the microscope. Both tubes have diopter adjustment.
Illumination
When using the microscope for longer periods it is essential to use a proper illuminator. One can choose to use a cold light illumination with several glass fibre light conductors, neon-fluorescence illumination or a LED ring illuminator. Euromex has a specific brochure with a detailed overview of the different types of illuminators.
Ordering information:
|
Stereo heads E Series 45º tube, with 2 pair of objectives in revolving nosepiece |
||||||||||
|
EE.1521 - binocular |
EE.1522 – binocular EE.1552 - trinocular |
EE.1523 - binocular EE.1553 - trinocular |
EE.1524 – binocular EE.1554 - trinocular |
|||||||
|
Objectives: 0.5x and 1x Magnification: 5x and 10x Field number: 46 and 23 mm. Free working distance: 200 mm. Specifically for stands ST.1715, ST.1720, ST.1770, ST.1780, ST.1785 |
Objectives: 1x and 2x Magnification: 10x and 20x Field number: 23 and 11.5 mm. Free working distance: 110 mm. |
Objectives: 1x and 3x Magnification: 10x and 30x Field number: 23 and 7.7 mm. Free working distance: 80 mm. |
Objectives: 2x and 4x Magnification: 20x and 40x Field number: 11.5 and 5.7 mm. Free working distance: 63 mm. |
|||||||
|
Stereo heads Z Series with zoom objective |
||||||||||
|
ZE.1624 – binocular* ZE.1654 – trinocular* |
ZE.1670 – binocular ZE.1671 – trinocular |
ZE.1626 - binocular |
||||||||
|
Tube: 45º Zoom objective: 0.7x – 4.5x Magnification: 7x – 45x Field number: 32 – 5.1 mm. Free working distance: 93 mm. |
Tube: 45º Zoom objective: 1x – 7x Magnification: 10x – 70x Field number: 23 – 3.29 mm. Free working distance: 104 mm. ZE.1671: when using photo tube the image remains visible in both eyepieces |
Similar to ZE.1624 but with 60º tube, suitable to mount on instruments or machines. Free working distance: 93 mm. |
||||||||
|
ZE.1629 - binocular |
ZE.1657 – trinocular |
ZE.1659 - trinocular |
||||||||
|
Similar to ZE.1624 but with 90º tube, suitable to mount on instruments or machines. Free working distance: 110 mm. |
Similar to ZE.1654 but when using photo tube the image remains visible in both eyepieces. Free working distance: 104 mm. |
Similar to ZE.1657 but with Zoom objective: 0.4x – 2.5x Magnification: 4x – 25x Free working distance: 185 mm. With opening for flexible light conductor for semi coaxial illumination |
||||||||
* For click-stop versions add suffix D to article number
|
Stands without illumination |
||||||||||
|
ST.1710 |
ST.1715 |
ST.1717 |
||||||||
|
210 mm. stand post 20 mm. dia. Black/white object plate 2 object clamps Holder ST.1790 for height adjustment Size: 240L x 150W x 250H mm. |
Similar to ST.1710 but with Holder ST.1792 for stereo head with moveable lamp holder 250 mm. long post Size: 240L x 150W x 290H mm. |
Similar to ST.1710 but with extra large base and a 250 mm. long post Size: 320L x 250W x 290H mm. |
||||||||
|
Stand with illumination |
||||||||||
|
ST.1740 |
Base plate 60 mm. height with telescopic arm Black/white and transparent object plate The height adjustable holder is mounted to the telescopic arm Size: 240H x 160W x 240-290H mm. Adjustable halogen illumination 10 Watt Incident illumination with blue filter, Transmitted illumination with diffuse filter. The illumination can be controlled separately and simultaneously Built-in transformer 230 Volts Not for stereo head EE.1521 |
|||||||||
|
Stands with darkfield illumination |
||||||||||
|
ST.1750 stand, perfectly suitable to observe gems |
ST.1760 stand, perfectly suitable to observe gems, contact lenses and other objects with poor contrast |
|||||||||
|
Round base plate, 260 mm. dia, Tilted adjustable stand With moveable object holder AE.5446 The height adjustable holder is mounted to the arm Size: 260L x 260W x 300H mm. Illumination: darkfield 230 Volts, 40 Watt halogen, mounted in the stage Light intensity can be adjusted with the iris diaphragm Not for stereo head EE.1521 |
Stand post 210 mm. x 20 mm. dia. With moveable object holder AE.5446 Holder ST.1790 for height adjustment Size: 240L x 150W x 260H mm. Illumination: transmitted illumination through fibre optic conductor, which is connected to the 100 Watt cold-light source LE.5210. Attachable darkfield set up AE.1878 An additional fibre light conductor can be supplied on request Not for stereo heads EE.1521 or ZE.1659
|
|||||||||
|
Articulating arm stands for table or wall mounting |
||||||||||
|
ST.1780 for table mounting |
ST.1785 for wall mounting |
|||||||||
|
Stand post 560 mm, x 28 mm with console for table mounting Holder ST.1790 for height adjustment Stand Size 1100L x 100W x 560H mm |
Similar to ST.1780 but without stand post With console for wall mounting
|
|||||||||
|
Holders for stereo heads with height adjustment to attach on instruments or machines |
||||||||||
|
ST.1790 |
ST.1792 |
ST.1794 |
ST.1796 |
ST.1798 |
||||||
|
Connection opening for base pillar 20 mm. dia. Internal diameter ring holder 84 mm. Friction is adjustable |
Similar to ST.1790 but with moveable holder for illuminator |
Similar to ST.1792 but with hinge for movement in all directions |
Similar to ST.1790 but with coaxial coarse and fine adjustment with scale |
Similar to ST.1794 but with coaxial coarse and fine adjustment with scale |
||||||
Optional Accessories:
|
Super wide field eyepieces, per pair |
|
|
AE.1835 |
SWF 5x / field number 26 |
|
AE.1836 |
SWF 10x/23 |
|
AE.1834 |
SWF 12.5x / 20 |
|
AE.1837 |
SWF 15x / 16 |
|
AE.1838 |
SWF 20x / 11.5 |
|
AE.1840 |
SWF 30x / 7.5 |
|
AE.5439 |
Eyeshades for all eyepieces |
|
AE.5425 |
Eyeshades for spectacle wearers, for all eyepieces |
|
SWF measuring eyepieces with adjustable eye lens, per piece |
|
|
AE.1839 |
SWF 10x/21 with micrometer 10 mm. / 100 and cross hair |
|
AE.1841 |
SWF 10x/21 with reticule 10 x 10 mm. in 400 squares |
|
AE.1842 |
SWF 10x/21 with image masks for photography |
|
Object micrometers for calibration of measuring eyepieces |
|
|
AE.1110 |
Object micrometer 1 mm. divided into 100 parts, printed on glass plate 76 x 26 mm. |
|
AE.1111 |
Object micrometer 2 mm. divided into 200 parts, printed on glass plate 76 x 26 mm. |
|
Supplementary objectives for stereo microscopes with 1x/2x and 1x/3x objectives |
|
|
AE.1846 |
Objective 0.5x, W.D. 100 mm. |
|
AE.1847 |
Objective 0.75x, W.D. 63 mm. |
|
AE.1848 |
Objective 1.5x, W.D. 35 mm. |
|
AE.1849 |
Objective 2.0x, W.D. 21 mm. |
|
Supplementary objectives for stereo microscopes with 2x/4x objectives |
|
|
AE.1851 |
Objective 0.5x, W.D. 100 mm. |
|
AE.1852 |
Objective 0.75x, W.D. 63 mm. |
|
AE.1853 |
Objective 1.5x, W.D. 35 mm. |
|
AE.1854 |
Objective 2.0x, W.D. 21 mm. |
|
Supplementary objectives for stereo microscopes |
|
|
AE.1850 |
Objective 0.7x, W.D. 300 mm. for EE.1521, W.D. 233 mm. for ZE.1659 |
|
AE.1822 |
Objective 0.57x, W.D. 300 mm. for ZE.1659 |
|
Supplementary objectives for zoom stereo microscopes with tube 45º or 60º |
|
|
AE.1855 |
Objective 0.3x, W.D. 250 mm., for stands ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1870 |
Objective 0.44x, W.D. 180 mm., for stands ST.1715, ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1856 |
Objective 0.5x, W.D. 150 mm., maximum object height for stand ST.1740 is 15 mm. |
|
AE.1857 |
Objective 0.75x, W.D. 97 mm. |
|
AE.1858 |
Objective 1.5x, W.D. 50 mm. |
|
AE.1859 |
Objective 2.0x, W.D. 34 mm. |
|
Supplementary objectives for zoom stereo microscopes with straight tube 90º |
|
|
AE.1805 |
Objective 0.3x, W.D. 330 mm., for stands ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1806 |
Objective 0.5x, W.D. 198 mm., for stands ST.1715, ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1807 |
Objective 0.75x, W.D. 125 mm. |
|
AE.1808 |
Objective 1.5x, W.D. 62 mm. |
|
AE.1809 |
Objective 2.0x, W.D. 42 mm. |
|
Supplementary objectives for zoom stereo microscope ZE.1657 |
|
|
AE.1816 |
Objective 0.35x, W.D. 250 mm. |
|
AE.1817 |
Objective 0.5x, W.D. 174 mm. |
|
AE.1818 |
Objective 1.5x, W.D. 57 mm. |
|
Safety glasses, to be fitted below the objectives |
|
|
AE.1843 |
Safety glass for E Series with objectives 1x/2x or 1x/3x |
|
AE.1844 |
Safety glass for E Series with objectives 2x/4x |
|
AE.1845 |
Safety glass for Zoom stereo microscopes except ZE.1659 |
|
AE.1825 |
Safety glass for EE.1521, ZE.1659. Can not be used in combination with supplementary objectives |
|
SMD attachment |
|
|
AE.1940 |
Rotatable attachment for inspection of PCB, etc. Soldered components can be inspected both vertically and angled. Built-in lens 0.3x for angled and 0.44x for vertical observation. Working distance 110 mm. and 80 mm. To be mounted below the objectives of the zoom heads ZE.1624 and ZE.1654. Only for ST.1720 and ST.1770 |
|
Darkfield |
|
|
AE.1878 |
Darkfield attachment suitable for all stands with transmitted illumination |
|
AE.1879 |
Iris diaphragm with adaptor, fits on AE.1878 |
|
AE.1871 |
Object stage for darkfield attachment. With using an objective slide it is possible to observe a transparent object like a contact lens or gem. Only for stand ST.1760 |
|
Polarisation |
|
|
AE.1890 |
Analyser in rotatable mount. For stereo microscopes except ZE.1659 |
|
AE.1891 |
Polariser in holder. For stands ST.1740 and ST.1760 |
|
AE.1892 |
Retardation filter, gypsum red 1st. order, fits on polariser AE.1891 |
|
Mechanical Stages |
|
|
AE.1876 |
Attachable mechanical stage with ball bearings. The top plate (145 x 115 mm.) can be moved with horizontal coaxial control knobs. With scale and vernier. Range 75 x 50 mm. For stands ST.1710, ST.1715 and ST.1740 |
|
AE.1896 |
Similar to ST.1876 but centred glass plate for transmitted illumination. For stands ST.1740 and ST.1760 |
|
AE.1877 |
Attachable top plate mechanical stage 170 x 155 mm. The top plate has ball bearings and can easily be moved by hand. X-Y translation 100 x 105 mm. Suitable for stands ST.1710, ST.1715 and ST.1740 |
|
AE.1950 |
Large SMD mechanical stage with ball bearings, size 390 x 390 mm. X-Y translation 360 x 260 mm. Suitable for stands ST.1720, ST.1770, ST.1780 and ST.1785 |
|
Object Stage |
|
|
AE.1884 |
Round object stage, high model, with diffuse glass filter. Exchangeable with darkfield set up of stand ST.1760 |
|
AE.1885 |
Round object stage, high model, with diffuse glass filter. Exchangeable with object plate of stand ST.1740 |
|
Object Plate, 94 mm. diameter |
|
|
AE.1880 |
Plexiglass object plate, transparent frosted |
|
AE.1881 |
Transparent glass object plate |
|
AE.1882 |
Black/white plastic object plate |
|
Filters, 40 mm. diameter |
|
|
AE.1897 |
Diffuse glass filter |
|
AE.1898 |
Blue frosted filter |
|
Object Clamp |
|
|
AE.5446 |
Moveable object clamp for gems, etc. Exchangeable with object clamp |
|
Cabinets for Microscopes |
|
|
AE.1886 |
Cabinet with handle and lock for stands ST.1710, ST.1715 and ST.1740 |
|
AE.1887 |
Cabinet with handle and lock for stand ST.1750 |
|
Spare Bulbs and Fuses |
|
|
SL.1868 |
Spare 30 Watt bulb for transmitted illumination of stand ST.1750 |
|
SL.1869 |
Spare halogen bulb 6 Volts 10 Watt for illuminator of stand ST.1740 |
|
AE.3683 |
Glass fuses for stand ST.1740, pack of 10 |
|
Accessories for Photography and Video Cameras |
|
|
AE.5046 |
Photo eyepiece PH 3.3x with micrometer 10/100 mm/ |
|
AE.5061 |
Photo eyepiece PH 2.5x/16 |
|
AE.5062 |
Photo eyepiece PH 5.0x/9.5 |
|
AE.5127 |
Adaptor for SLR camera with T2 mount. To be used with a photo eyepiece |
|
AE.5129 |
SLR camera-adaptor with built-in optics and set up eyepiece with image mask. With T2 mount to be used with a photo eyepiece |
|
AE.5018 |
C-mount adaptor with built-in optics for CCD camera |
|
AE.5006 |
C-mount adaptor with lens 0.6x for models ZE.1657 and ZE.1659, optional with micrometer |
|
AE.5059 |
Universal C-mount adaptor with photo eyepiece 0.45x, optional with micrometer |
|
AE.5063 |
Universal C-mount adaptor with photo eyepiece 0.7x, optional with micrometer |
NOTE: On request Euromex supply T2-adaptors for AE.5127 and AE.5129 and adaptors for digital photo cameras. Please enquire for an overview of Euromex’s camera and illuminator range.
Euromex F Series and G Series Biological Microscopes
The Euromex F and G Series bright field biological microscopes are routine and research microscopes for use in higher education, science and biological, medical and industrial laboratories. The inverted microscopes in the F Series are used for research of cells and tissue cultures. These microscopes provide an excellent and flat image. The large eye lenses of the eyepieces are suitable for people wearing spectacles. The F and G Series have a robust, heavy and stable stand and can be equipped for phase contrast or dark field applications.
The G Series microscopes offer an extra comfort due to the reversed revolver. On top of that the microscopes of this series are equipped with an extra strong illuminator which helps to produce a very clear image at higher magnification. This is for example important when using a camera.
For F and G Series there is a wide choice of system components like binocular and trinocular heads, objectives, eyepieces, condensers, polarisation sets, filters, etc.
Optical equipment
The F Series microscopes are standard equipped with semiplan objectives which are parfocally adjusted to the DIN tube, The G Series has plan objectives. The trinocular models have a vertical third tube for mounting a photo or video camera. When using this option the light is divided between the photo tube (80%) and the eyepieces (20%). The ball bearing revolvers are suitable for five objectives and those of the G Series are tilted. The revolver of the inverted microscopes is suitable for four objectives.
The F and G Series microscopes are equipped with a height adjustable Abbe condenser, an iris diaphragm with filter holder and daylight blue filter. The inverted microscopes are supplied with a condenser N.A. 0.30 and / or N.A. 0.55, with working distance 55 / 21 mm.
Stand
The stand is very stable and has coaxial coarse and fine adjustment knobs. An adjustable safety device protects the specimen and objective from damage. Friction can be adjusted in accordance with personal preference.
Stage
Flat-top type mechanical stage, 171 x 140 mm., ball bearing with X-Y translation 80 x 52 mm., readable in 0.1 mm. with coaxial controls and detachable specimen holder. The models with heating are supplied with a 125 x 140 mm. stage with attached mechanical stage, X-Y translation 75 x 40 mm. Heating elements are mounted under the stage for a smooth temperature adjustment up to 50ºC.
The size of the stages of the inverted microscopes is 180 x 200 mm. and they are supplied with a detachable mechanical stage, ball bearing, X-Y translation 112 x 72 mm., coaxial control. This mechanical stage is optional for models FE.2910 and FE.2915.
Illuminator
The built-in 30 Watt Köhler halogen illumination of the F Series has a field diaphragm and pre-centred lamp with collector lens.
The light source of the G Series is even more powerful at 50 Watt and guarantees a perfect illumination. The inverted microscopes have a built-in halogen illuminator 6 Volts, 30 Watt.
General technical information
- Observation tube: Binocular or trinocular, 30º tube, 360º rotatable, adjustable inter-pupillary distance 53 – 72 mm.
- Stand: Stable stand with coaxial coarse and fine adjustment knobs with graduated scale (interval 2.5μm).
- Protection: Adjustable specimen protection to prevent damage to objective and specimen
- Eyepieces: Paired DIN eyepieces KHWF 10x/20, also suitable for people with spectacles. Inverted microscopes with eyepieces HWF 10x/18, also suitable for people with spectacles.
- Revolving nosepiece:Suitable for 5 objectives, with click-stop. The G Series microscopes have a tilted nosepiece. The inverted microscopes have a nosepiece which can contain up to 4 objectives.
- Objectives F Series: Depending on the model with semiplan, plan or phase objectives
- Objectives G Series: Depending on the model with plan or plan phase objectives.
- Abbe condenser: Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and blue filter in holder. Inverted microscopes with height adjustable condenser N.A. 0.30, working distance 55 mm. and / or N.A. 0.55, working distance 21 mm.
- Phase contrast condenser: The microscopes with phase contrast have an Abbe condenser with rotatable disc with phase positions which can be centred and with aperture for bright field. A sliding holder with phase annulus can be mounted in the condenser N.A. 0.55 of the inverted microscopes.
- Dark field condenser: Height adjustable Cardiod condenser N.A. 1.20 suitable for objectives 10x – 100x
- Packing: Complete with dust cover in styrofoam case
Ordering information:
|
F Series models |
|||||
|
Model |
Tube |
DIN objectives |
Remarks |
||
|
FE.2020 |
Binocular |
Semiplan 4x, 10x, S40x, S100x |
Standard version Semiplan |
||
|
FE.2025 |
Trinocular |
Semiplan 4x, 10x, S40x, S100x |
Standard version Semiplan |
||
|
FE.2030 |
Binocular |
Plan 4x, 10x S40x, S100x |
Standard version Plan |
||
|
FE.2035 |
Trinocular |
Plan 4x, 10x, S40x, S100x |
Standard version Plan |
||
|
FE.2040 |
Binocular |
Semiplan 4x and Plan phase 10x, S40x |
Phase contrast set – medium dark ‘Zernike’ type |
||
|
FE.2045 |
Trinocular |
Semiplan 4x and Plan phase 10x, S40x |
Phase contrast set – medium dark ‘Zernike’ type |
||
|
FE.2520 |
Binocular |
Semiplan 4x, 10x, S40x |
With built-in heating stage |
||
|
FE.2525 |
Trinocular |
Semiplan 4x, 10x, S40x |
With built-in heating stage |
||
|
FE.2540 |
Binocular |
Semiplan 4x and Plan phase 10x, S40x |
Phase contrast set – medium dark ‘Zernike’ type with built-in heating stage |
||
|
FE.2545 |
Trinocular |
Semiplan 4x and Plan phase 10x, S40x |
Phase contrast set – medium dark ‘Zernike’ type with built-in heating stage |
||
|
FE.2910 |
Binocular |
Infinity type Semiplan 4x, 10x, 20x |
Inverted microscope, condenser N.A. 0.30 |
||
|
FE.2915 |
Trinocular |
Infinity type Semiplan 4x, 10x, 20x |
Inverted microscope, condenser N.A. 0.30 |
||
|
FE.2930 |
Binocular |
Infinity type Semiplan 4x, 10x, 20, 40x |
Inverted microscope with detachable mechanical stage, X-Y translation 112 x 72 mm. Coaxial controls. Condensers N.A. 0.30 and N.A. 0.55 |
||
|
FE.2935 |
Trinocular |
Infinity type Semiplan 4x, 10x, 20, 40x |
Inverted microscope with detachable mechanical stage, X-Y translation 112 x 72 mm. Coaxial controls. Condensers N.A. 0.30 and N.A. 0.55 |
||
|
FE.2950 |
Binocular |
Infinity type Semiplan 4x, Semiplan phase 10x, 20x |
Inverted microscope with detachable mechanical stage, X-Y translation 112 x 72 mm. Coaxial controls. Condensers N.A. 0.55 with phase annulus in sliding holder |
||
|
FE.2955 |
Trinocular |
Infinity type Semiplan 4x, Semiplan phase 10x, 20x |
Inverted microscope with detachable mechanical stage, X-Y translation 112 x 72 mm. Coaxial controls. Condensers N.A. 0.55 with phase annulus in sliding holder |
||
|
G Series models |
|||||
|
Model |
Tube |
DIN objectives |
Remarks |
||
|
GE.3030 |
Binocular |
Plan 4x, 10x, S40x, S100x |
Standard version Plan |
||
|
GE.3035 |
Trinocular |
Plan 4x, 10x, S40x, S100x |
Standard version Plan |
||
|
GE.3040 |
Binocular |
Plan 4x, and Plan phase 10x, S40x, S100x |
Phase contrast set – medium dark ‘Zernike’ type |
||
|
GE.3045 |
Trinocular |
Plan 4x, and Plan phase 10x, S40x, S100x |
Phase contrast set – medium dark ‘Zernike’ type |
||
|
Accessories: |
|||||
|
Heads, without eyepieces |
|||||
|
AE.1105 |
Monocular 30º tube, 360º rotatable |
||||
|
AE.1107 |
Binocular 30º tube, 360º rotatable |
||||
|
AE.1109 |
Trinocular head with binocular 30º tube, 360º rotatable |
||||
|
Eyepieces (suitable for spectacle wearers) |
|||||
|
AE.1120 |
Wide field eyepiece HWF 10x / field number 18 |
||||
|
AE.1121 |
Wide field eyepiece HWF 15x /12 |
||||
|
AE.1122 |
Wide field eyepiece HWF 12.5x / 15 |
||||
|
AE.1123 |
Wide field eyepiece HWF 20x / 9 |
||||
|
AE.1125 |
Paired wide field eyepiece KHWF 10x / 20 |
||||
|
AE.1140 |
Wide field eyepiece HWF 10x / 18 with arrow pointer |
||||
|
AE.1104 |
Pair of eyeshades for wide field eyepieces, please mention part number of the eyepiece when ordering |
||||
|
Measuring eyepieces with adjustable eye lens (suitable for spectacle wearers) |
|||||
|
AE.1143 |
Wide field eyepiece HWF 10x / 18 with micrometer scale 10 mm. / 100 |
||||
|
AE.1145 |
Wide field eyepiece HWF 10x / 18 with cross hair |
||||
|
AE.1146 |
Wide field eyepiece HWF 10x / 18 with graticule 10 x 10 mm. divided into 400 squares |
||||
|
AE.1179 |
Micrometer eyepiece 10x / 15 with screw thread micrometer, range 10 mm. One interval is 1 mm. divided into 100 parts |
||||
|
Measuring scales for calibration of measuring eyepieces |
|||||
|
AE.1110 |
Stage micrometer 1 mm. divided into 100 parts, on 76 x 26 mm. glass slide |
||||
|
AE.1111 |
Stage micrometer 2 mm., divided into 200 parts, on 76 x 26 mm. glass slide |
||||
|
SMP Semiplan and PL Plan achromatic DIN objectives bright field |
|||||
|
|
Objective |
Numerical aperture (N.A.) |
Working distance |
||
|
AE.3411 |
SMP 4x |
N.A. 0.10 |
19.83 mm. |
||
|
AE.3412 |
SMP 5x |
N.A. 0.10 |
19.83 mm. |
||
|
AE.3413 |
SMP 10x |
N.A. 0.25 |
6.23 mm. |
||
|
AE.3414 |
SMP S20x |
N.A. 0.40 |
3.13 mm. |
||
|
AE.3417 |
SMP S40x |
N.A. 0.65 |
0.43 mm. |
||
|
AE.3418 |
SMP S50x oil |
N.A. 0.95 |
0.44 mm. |
||
|
AE.3419 |
SMP S60x |
N.A. 0.85 |
0.23 mm. |
||
|
AE.3420 |
SMP S100x oil |
N.A. 1.25 |
0.12 mm. |
||
|
AE.3421 |
PL 4x |
N.A. 0.10 |
17.9 mm. |
||
|
AE.3422 |
PL 5x |
N.A. 0.10 |
17.9 mm. |
||
|
AE.3423 |
PL 10x |
N.A. 0.25 |
8.9 mm. |
||
|
AE.3424 |
PL 20x |
N.A. 0.40 |
8.6 mm. |
||
|
AE.3427 |
PL S40x |
N.A. 0.65 |
0.65 mm. |
||
|
AE.3429 |
PL S60x |
N.A. 0.85 |
0.26 mm. |
||
|
AE.3430 |
PL S 100x oil |
N.A. 1.25 |
0.33 mm. |
||
|
PLPH Plan achromatic phase DIN objectives |
|||||
|
|
Objective |
Numerical aperture (N.A.) |
Working distance |
||
|
AE.3443 |
PLPH 10x |
N.A. 0.25 |
8.9 mm. |
||
|
AE.3444 |
PLPH 20x |
N.A. 0.40 |
8.6 mm. |
||
|
AE.3447 |
PLPH S40x |
N.A. 0.65 |
0.65 mm. |
||
|
AE.3450 |
PLPH S100x oil |
N.A. 1.25 |
0.33 mm. |
||
|
SMI Semiplan objectives with long working distance (LWD) Infinity type, corrected for 1.2 mm. cover glass. For inverted microscopes |
|||||
|
|
Objective |
Numerical aperture (N.A.) |
Working distance |
||
|
AE.3521 |
SMI 4x |
N.A. 0.10 |
19.95 mm. |
||
|
AE.3523 |
SMI 10x |
N.A. 0.25 |
6.64 mm. |
||
|
AE.3524 |
SMI 20x |
N.A. 0.40 |
4.49 mm. |
||
|
AE.3527 |
SMI 40x |
N.A. 0.65 |
0.78 mm. |
||
|
SMIPH Semiplan phase objectives with long working distance (LWD) Infinity type, corrected for 1.2 mm. cover glass. For inverted microscopes |
|||||
|
|
Objective |
Numerical aperture (N.A.) |
Working distance |
||
|
AE.3533 |
SMIPH 10x |
N.A. 0.25 |
6.64 mm. |
||
|
AE.3534 |
SMIPH 20x |
N.A. 0.40 |
4.49 mm. |
||
|
AE.3537 |
SMIPH 40x |
N.A. 0.65 |
0.78 mm. |
||
|
Bright field |
|||||
|
AE.3605 |
Large Abbe condenser N.A. 1.25 with iris diaphragm and filter holder for 30 mm. diameter filters |
||||
|
AE.1309 |
Achromatic-Aplanatic condenser N.A. 1.40 with iris diaphragm and filter holder for 31.8 mm. diameter filters |
||||
|
AE.3806 |
Condenser N.A. 0.55 for inverted microscopes. To be used with objective AE.3527 |
||||
|
Dark field |
|||||
|
AE.3611 |
Dark field condenser N.A. 1.20 suitable for objectives 10x – 40x and 100x objective with iris diaphragm AE.3613 |
||||
|
AE.3613 |
Plan achromatic objective S100x N.A. 1.25 oil with iris diaphragm |
||||
|
AE.3632 |
Dark field diaphragm disc which fits in the filter holder of the Abbe condenser AE.3605. Suitable for all SMP and PL bright field objectives of 4x – 40x |
||||
|
Phase contrast |
|||||
|
AE.3617 |
‘Zernike’ phase Abbe condenser N.A. 1.25 with rotatable disc with phase positions which can be centred and with aperture for bright field. To be used in combination with phase objectives AE.3443 – AE.3450 |
||||
|
AE.3810 |
Sliding holder with phase annulus for inverted microscopes, suitable to be mounted in condenser AE.3806. To be used in combination with objectives AE.3533 – AE.3537. Also with position for bright field. |
||||
|
AE.1329 |
Centring telescope for centring phase rings on the phase objectives |
||||
|
Polarisation |
|||||
|
AE.3635 |
Polarisation set for F Series with bright field objectives. The analyser is placed in the aperture below the inclined head, the rotatable polariser is placed on the illuminator. |
||||
|
AE.3636 |
Polarisation set similar to AE.3635 but for G Series |
||||
|
Mechanical stage and specimen holders for inverted microscopes |
|||||
|
AE.3875 |
Large attachable mechanical stage for inverted microscope FE.2910 or FE.2915 with low positioned coaxial control knobs, X-Y translation 112 x 72 mm. |
||||
|
AE.3887 |
Petri dish holder 54 mm. diameter |
||||
|
AE.3888 |
Specimen glass holder 76 x 26 mm. |
||||
|
AE.3889 |
Teresaki-plate holder with 60, 72 or 120 test fields |
||||
|
Filters 30 mm. diameter |
|||||
|
AE.1339 |
Green filter G53, clear |
||||
|
AE.1340 |
Blue filter KB12, clear |
||||
|
AE.1341 |
Blue filter KB12, one side frosted |
||||
|
AE.1344 |
Yellow filter Y48, clear |
||||
|
AE.1342 |
Neutral filter ND4 |
||||
|
AE.1343 |
Neutral filter ND8 |
||||
|
AE.1352 |
Polaroid filter |
||||
|
Filters for inverted microscopes 46 mm. diameter |
|||||
|
AE.3839 |
Green filter G53, clear in metal holder |
||||
|
AE.3840 |
Blue filter KB12, one side frosted, in metal holder |
||||
|
Spare bulbs and fuses |
|||||
|
SL.3678 |
Spare halogen bulb 6 Volts 30 Watt for F-series |
||||
|
SL.3679 |
Spare halogen bulb 12 Volts 50 Watt for G-series |
||||
|
AE.3683 |
Fuses 250 Volts/1A. Packed per 10 pieces |
||||
|
Cabinets for microscopes |
|||||
|
AE.5685 |
Cabinet with handle and lock for F-series microscopes. FE.2520 - FE.2545 without power supply. Not suitable for inverted microscopes |
||||
|
AE.5801 |
Cabinet with handle and lock for G-series microscopes |
||||
|
Accessories for photography and video cameras |
|||||
|
AE.1106 |
Vertical tube. Exchangeable with binocular head of the F- and G-series.To be used with camera-adapters AE.5127, AE.5129 and C-mount adapters. |
||||
|
AE.5046 |
Photo eyepiece PH 3.3x with micrometer 10/100 mm |
||||
|
AE.5061 |
Photo eyepiece PH 2.5x / 16 |
||||
|
AE.5062 |
Photo eyepiece PH 5.0x / 9,5 |
||||
|
AE.5127 |
Adapter for SLR camera with T2 mount.To be used with a photo eyepiece |
||||
|
AE.5129 |
SLR camera-adapter with built-in optics and set up eyepiece with image mask.With T2 mount to be used with a photo eyepiece |
||||
|
AE.5017 |
C-mount adapter with built-in optics for CCD camera |
||||
|
AE.5059 |
Universal C-mount adapter with photo eyepiece 0,45x,optional with micrometer |
||||
|
AE.5063 |
Universal C-mount adapter with photo eyepiece 0,7x,optional with micrometer |
||||
NOTE: On request Metascientific.com supply T2 adaptors for AE.5127 and AE.5129 and adaptors for digital photo cameras. Please enquire for an overview of our camera range.
Euromex X Series and C Series Biological Microscopes
The Euromex X Series microscopes are perfect for use at schools and in laboratories.The nice, ergonomically designed stand is very comfortable
The famous C Series microscopes have a steady position in the marketplace. The C Series is often considered as the original of these types of microscopes and is due to the firm construction which is extremely suitable for use at schools and in small laboratories.
Optical Equipment
The achromatic objectives are parfocally aligned on the 160 mm. DIN tubes. When changing the magnification the image remains perfectly centred and the slide remains visible. The high quality lenses provide an optimal image quality and the anti-reflection coating prevents unwanted image distortion. The DIN eyepieces WF 10x/18 of the X and C Series provide a large image view. The parfocal length of the C Series objectives is 35 mm., that of the X Series are 45 mm. All X Series microscopes are equipped with a height adjustable Abbe condenser and can be used with a 100x objective. With the C Series one can choose between a fixed one lens condenser or a height adjustable Abbe condenser.
Stand
The object can be focused by using coarse and fine adjustment knobs. The knobs of the X Series are coaxial and the fine adjustment works over the entire range of adjustment which enables a very precise focusing. The coarse adjustment is equipped with a safety device which prevents damaging the objectives and slide.
Table
The fixed table of 120 x 120 mm. has two object clamps. With the optional mechanical stage the object can be moved by using translation knobs. The XE.5647 microscope has a large built-in mechanical stage, X-Y translation 70 x 30 mm., Vernier 0.1 mm., with vertical coaxial controls.
Illuminator
The X Series and C Series are supplied with a 20 Watt standard illumination, a fluorescent illumination or a halogen illumination. The X Series can also be supplied with an LED illumination. The advantage of using fluorescent illumination is the reproduction of the natural colours of the slide and the very low heat development. Beside these advantages this illumination is very pleasant to work with due to its homogeneous character. The LED illumination – with built-in rechargeable battery and charger- is ideal in case there is no 230 Volts connection. The light power is adjustable. Fully charged batteries are suitable for 75 hours of usage.
General technical information
- Observation tube: Monocular or binocular 45º tube, 360º rotatable, tube length 160 mm. The binocular head has eye correction on both tubes, ± 5 diopters. Adjustable inter-pupillary distance 50 – 75 mm.
- Stand X Series: Focusing through coaxial coarse and fine adjustment knobs with scale (interval 5μm).
- Stand C Series: Focusing through coarse and fine adjustment knobs with scale (interval 2μm).
- Protection: Specimen protection to prevent damage to objective and specimen
- Eyepieces: WF 10x/18,with the monocular models equipped with fixed arrow pointer and screw locked. XE.5647 microscope with DIN HWF 10x/18 eyepieces, suitable for people with spectacles.
- Revolving nosepiece:With ball bearings and click stop for 4 objectives.
- Stage: 120 x 120 mm. with 2 fixed object clamps. XE.5647 microscope with large built-in mechanical stage, X-Y translation 70 x 30 mm., Vernier 0.1 mm., with vertical coaxial control.
- Objectives X Series: Achromatic DIN objectives 4x, 10x, 40x with colour code. The 40x objective is spring loaded.
- Objectives C Series: Achromatic objectives 4x, 10x, 40x with colour code. The 40x objective is spring loaded.
- Condenser X Series: Height adjustable Abbe condenser.
- Condenser C Series: Fixed one lens condenser or height adjustable Abbe condenser.
- Packing: Complete with dust cover in styrofoam case
Ordering information:
|
X Series |
|||||
|
Model |
Tube |
DIN eyepieces with arrow pointer |
Achromatic DIN objectives |
Illumination |
Remarks |
|
XE.5612 |
Monocular |
WF 10x/18 |
4x, 10x, 40x |
Adjustable LED |
Built-in charger with Ni/MH battery |
|
XE.5647 |
Binocular |
Pair HWF 10x/18 without arrow pointer |
4x, 10x, 40x, 100x |
Adjustable halogen 12V, 10W |
Integrated mechanical stage with vertical control |
|
C Series |
|||||
|
Model |
Tube |
DIN eyepieces with arrow pointer |
Achromatic DIN objectives |
Illumination |
Remarks |
|
CE.5815-LED |
Monocular |
WF 10x/18 |
4x, 10x, 40x |
LED and rechargeable battery |
Abbe condenser |
Optional accessories:
|
Heads, without eyepieces |
|||||
|
AE.5804 |
Monocular 45º tube, 360º rotatable |
||||
|
AE.5808 |
Binocular 45º tube, 360º rotatable with diopter adjustment |
||||
|
AE.5811 |
Discussion tube for simultaneous observing |
||||
|
Eyepieces |
|||||
|
AE.5064-C |
Huygens eyepiece 6x / 18.5 |
||||
|
AE.5065-C |
Huygens eyepiece 10x / 12.5 |
||||
|
AE.5071 |
Wide field eyepiece WF 5x / 20 |
||||
|
AE.5072 |
Wide field eyepiece WF 10x / 18 |
||||
|
AE.5073 |
Wide field eyepiece WF 15x / 12 |
||||
|
AE.5087 |
Wide field eyepiece WF 16x / 10.5 |
||||
|
AE.5082 |
Wide field eyepiece WF 20X / 11.5 |
||||
|
AE.5081 |
Wide field eyepiece WF 10x / 18 with fixed pointer |
||||
|
AE.5360 |
Eyeshade suitable for all eyepieces |
||||
|
Micrometers |
|||||
|
AE.5074 |
Micrometer wide field eyepiece WF 10x / 18, adjustable eye lens, scale 10 mm. / 100 parts |
||||
|
AE.5084 |
Micrometer wide field eyepiece WF 10x / 18, fixed eye lens, scale 10 mm. / 100 parts |
||||
|
AE.5075 |
Eyepiece micrometer scale 10 mm. / 100 parts dia. 19 or 21 mm. |
||||
|
AE.5076 |
Eyepiece micrometer scale, 10 mm. / 100 parts and cross hair, dia. 19 or 21 mm. |
||||
|
AE.5077 |
Eyepiece scale with cross hair, dia. 19 or 21 mm. |
||||
|
AE.5078 |
Eyepiece scale 10 x 10 mm., divided into 400 squares, dia. 19 or 21 mm. |
||||
|
|
When ordering please mention the part number of the eyepiece |
||||
|
AE.5110 |
Stage micrometer on glass slide 76 x 26 mm., 1 mm. / 100 parts |
||||
|
AE.5111 |
Stage micrometer on glass slide 76 x 26 mm., 2 mm. / 200 parts |
||||
|
Achromatic DIN objectives for X Series microscopes |
|||||
|
45 mm. parfocal length |
|||||
|
AE.5691 |
DIN objective 4x, N.A. 0.10 |
||||
|
AE.5693 |
DIN objective 10x, N.A. 0.25 |
||||
|
AE.5694 |
DIN objective S20x, N.A. 0.40 |
||||
|
AE.5697 |
DIN objective S40x, N.A. 0.65 |
||||
|
AE.5699 |
DIN objective S60x, N.A. 0.85 |
||||
|
AE.5700 |
DIN objective S100x, oil immersion, N.A. 1.25 |
||||
|
Achromatic objectives for C Series microscopes |
|||||
|
35 mm. parfocal length |
|||||
|
AE.5091-C |
Objective 4x, N.A. 0.10 |
||||
|
AE.5093-C |
Objective 10x, N.A. 0.25 |
||||
|
AE.5094-C |
Objective S20x, N.A. 0.40 |
||||
|
AE.5097-C |
Objective S40x, N.A. 0.65 |
||||
|
AE.5099-C |
Objective S60x, N.A. 0.85 |
||||
|
AE.5102-C |
Objective S100x, oil immersion, N.A. 1.25 |
||||
|
|
|||||
|
Dark field |
|||||
|
AE.5172 |
Dark field diaphragm disc for objectives 10x – 40x. This diaphragm can simply be inserted in the filter holder |
||||
|
Polarisation |
|||||
|
AE.5150 |
Polarisation set. The analyser is placed in the eyepiece and the polariser is mounted in the filter holder. |
||||
|
AE.5153 |
Polarisation set for microscopes without mechanical stage. The analyser is placed on the top of the eyepiece. The polariser is mounted in an attachable stage (90 x 65 mm.). Rotating object holder with object clamps, graduation 360º, accuracy 5º |
||||
|
AE.5155 |
Retardation filter set. Small plate of gypsum, red – 540 μm – and mica – 140 μm – to be used in combination with a polarising set. |
||||
|
|
|
||||
|
Mechanical stages (attachable) |
|||||
|
AE.5173 |
Stable mechanical stage, range 50 x 30 mm., double Vernier 0.1 mm., horizontal control knobs |
||||
|
AE.5176 |
Stable mechanical stage, range 65 x 25 mm., double Vernier 0.1 mm., vertical control knobs |
||||
|
AE.5175 |
Large attachable mechanical stage with ball bearings, low-mounted coaxial control knobs, range 75 x 30 mm., double Vernier 0.1 mm. |
||||
|
Sub stage microscope illuminators, to replace the mirror |
|||||
|
LE.5184 |
Sub stage microscope illuminator 230 Volts, 20 Watt with power cable and switch. Suitable for C Series, also available for 6, 12, 24 and 120 Volts* |
||||
|
LE.5185 |
LED sub stage microscope illuminator with rechargeable batteries. Operating time approx. 80 hours. Suitable for C Series |
||||
|
LE.5195 |
|
||||
|
Spare bulbs and fuses |
|||||
|
SL.5180 |
Fluorescent bulb 5 Watt |
||||
|
SL.5182 |
Spare bulb 230 Volts, 20 Watt with reflector for sub stage microscope illuminator LE.5184, in case more light is needed* |
||||
|
SL.5189 |
Spare bulb 230Volts, 20 Watt, on request also available for 6, 12, 24 or 120 Volts* |
||||
|
SL.5190 |
Spare bulb 230 Volts, 20 Watt with reflector for XE.5615, CE.5805 and CE.5815, in case more light is needed* |
||||
|
SL.5206 |
Spare halogen bulb 12 Volts, 10 Watt with cold light reflector for X Series with halogen illumination |
||||
|
SL.1379 |
Spare halogen bulb 12 Volts, 20 Watt for C Series with halogen illumination |
||||
|
SL.5227 |
Fuses 250 Volts / 1A, pack of 10 pieces |
||||
|
|
* Standard 230 Volts. For other voltages, e.g. 120 Volts, please add – 120 to the article number |
||||
|
Drawing attachment, filters etc. |
|||||
|
AE.5202 |
Blue filter - daylight filter, frosted, 32 mm |
||||
|
AE.5207 |
Blue filter plexi-glass, 32 mm |
||||
|
AE.5203 |
Yellow filter plexi-glass, 32 mm |
||||
|
AE.5204 |
Neutral grey filter, 32 mm |
||||
|
AE.5205 |
Green filter, frosted, 32 mm |
||||
|
Cabinets for microscopes |
|||||
|
AE.5685 |
Cabinet with handle and lock for X-series microscopes |
||||
|
AE.5801 |
Cabinet with handle and lock for C-series microscopes |
||||
|
Accessories for photography and video cameras |
|||||
|
AE.5061 |
Photo eyepiece PH 2.5x / 16 |
||||
|
AE.5126 |
Adapter for SLR camera with T2 mount.To be used with a photo eyepiece. Also for AE.5811. |
||||
|
AE.5812 |
Vertical tube with C-mount for video cameras VC.3011 or VC.3021 |
||||
|
AE.5813 |
Discussion head with C-mount for CCD camera on the vertical tube |
||||
NOTE: On request Metascientific.com supply T2 adaptors for AE.5126 and adaptors for digital photo cameras. Please enquire for an overview of our camera range.
Novex B Series Biological Microscopes
The fully equipped B- series for biomedical sciences are commonly used for general lab research, in secondary and higher education and veterinarians. Next to the ergonomics the functionality of these microscopes is very high due to:
- Standard HWF 10x/18 eyepieces
- Semi-Plan or Plan achromatic 4x 10x S40x S100x bright field objectives
- Semi-Plan or Plan Phase achromatic 10x 20x S40x S100x objectives
- ICS - Infinity Corrected System achromatic- 4x 10x S40x S100x objectives
- Monocular, binocular of trinocular microscope head
- Abbe condenser N.A. 1.25 in centrable holder, Zernike Phase disk or Phase slide condenser. With iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
- Cardioid oil-immersion condensor for darkfield contrast
- Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Optionally equipped with heating elements and PID controller
- Built-in adjustable 20 watt halogen or LED illuminator. The LED versions offer 50 hours of cordless use
Viewing Head and Eyepieces
The microscopes of the Novex B series are available in three configurations: monocular, binocular or trinocular. The viewing head is mounted at 30º angle and can be rotated through 360º. Supplied with a WF 10x eyepiece(s), these microscopes have a coaxial coarse and fine focus adjustment.
Revolving Objective Changer
All models are equipped with a reversed quadruple revolving objective changer with ball bearings slides for precise indexing (except for models 86.525, 86.541, 86.125 and 86.141). A five position objective changer can be supplied as an option.
Achromatic Objectives
There is a wide choice of Semiplan, Plan, Phase Contrast and ICS objectives (Infinity Corrected System).
Condenser
The Abbe condenser N.A. 1.25 can be centred and focused and is equipped with an iris diaphragm, filter holder and blue daylight filter.
Bright Field Illumination
Besides the built-in 6 volts, 20 Watt halogen illumination there are also models with LED illumination with rechargeable batteries for approximately 50 hours of usage and internal power supply.
Mechanical Stage
The standard 125 x 135 mm. stage is equipped with a ball bearing X–Y stage (range 75 x 35 mm.) and a double vernier reading to 0.1 mm. The specimen holder is removable.
Darkfield Illumination
The darkfield set consists of a special condenser with a large numerical aperture N.A. 1.20 (86.627), a DIN Plan 100x objective with iris diaphragm (86.521) and a cold light source (LE.5210 or LE.5211) with a flexible light guide (LE.5241)
One example of the use of this darkfield technique is living blood analysis (LBA). The LBA is a morphological research technique that enables observation of the shape of red blood-corpuscles (Erythrocytes). Anomalies in shape or function provide an approximate indication of possible pathological diseases.
Phase Contrast Set
The Novex B Series microscopes are available with several Zernike medium-dark phase contrast sets, complete with centring phase telescope and green filter. The models 86.410 to 86.491 have a Zernike phase contrast set with phase condenser N.A. 1.25 and a sliding phase plate containing a phase ring and an aperture for bright field. The sets are complete with a Plan phase S40x objective and 4x, 10x and S100x Semi-plan or Plan bright field objectives. For phase contrast an objective with a retardation plate and a condenser with a phase-ring is used.
Temperature Controlled Plate
Besides a phase set the models 86.525 and 86.541 have a specifically designed heat stage. The temperature of the stage can be adjusted up to 50ºC by a PID controller. The heater is mounted below the microscope stage and can only be ordered when purchasing a new microscope.
Camera and Video Set
The trinocular head phototube can be activated and de-activated. When it is activated the image remains visible in one eyepiece, which gives the maximum light intensity to the photo/video equipment. A separate brochure describes the digital and analogue photo/video camera solutions.
Ordering information:
|
Mono |
Bino |
Trino |
Objectives |
Illumination |
Remarks |
|
86.010 |
86.025 |
86.041 |
Semiplan SP 4x/0.10, SP 10x0.25, SP S40x/0.65, SP S100x/1.25 oil |
Halogen, adjustable intensity |
|
|
86.010-LED |
86.025-LED |
86.041-LED |
Semiplan SP 4x/0.10, SP 10x0.25, SP S40x/0.65, SP S100x/1.25 oil |
LED, adjustable intensity |
|
|
86.060 |
86.075 |
86.091 |
Plan PL 4x/0.10, PL 10x0.2, PL S40x/0.65, PL S100x/1.25 oil |
Halogen, adjustable intensity |
86.091-DF100 with LE.5210 |
|
86.060-LED |
86.075-LED |
86.091-LED |
Plan PL 4x/0.10, PL 10x0.2, PL S40x/0.65, PL S100x/1.25 oil |
LED, adjustable intensity |
|
|
|
86.125(2) |
86.141(2) |
Infinity corrected SP 4x/0.10, SP 10x/0.25, SP S40x/0.65, SP S100x/1.25 oil |
Halogen, adjustable intensity |
|
|
|
86.125-LED(2) |
86.141-LED(2) |
Infinity corrected SP 4x/0.10, SP 10x/0.25, SP S40x/0.65, SP S100x/1.25 oil |
LED, adjustable intensity |
|
|
86.310 |
86.325 |
86.341 |
Plan Phase PLPH 10x/0.25, PLPH 20x/0.40, PLPH S40x/0.65, PLPH S100x/1.25 oil |
Halogen, adjustable intensity |
Phase condenser with rotating disc |
|
86.310-LED |
86.325-LED |
86.341-LED |
Plan Phase PLPH 10x/0.25, PLPH 20x/0.40, PLPH S40x/0.65, PLPH S100x/1.25 oil |
LED, adjustable intensity |
Phase condenser with rotating disc |
|
86.360 |
86.375 |
86.391 |
Phase PH 10x/0.25, PH 20x/0.40, PH S40x/0.65, PH S100x/1.25 oil |
Halogen, adjustable intensity |
Phase condenser with rotating disc |
|
86.360-LED |
86.375-LED |
86.391-LED |
Phase PH 10x/0.25, PH 20x/0.40, PH S40x/0.65, PH S100x/1.25 oil |
LED, adjustable intensity |
Phase condenser with rotating disc |
|
86.410 |
86.425 |
86.441 |
Semiplan SMP 4x/0.10, SMP 10x/0.25, SMP S100x/1.25 oil, PLPH S40x/0.65 |
Halogen, adjustable intensity |
Phase condenser with 40x phase plate |
|
86.410-LED |
86.425-LED |
86.441-LED |
Semiplan SMP 4x/0.10, SMP 10x/0.25, SMP S100x/1.25 oil, PLPH S40x/0.65 |
LED, adjustable intensity |
Phase condenser with 40x phase plate |
|
86.460 |
86.475 |
86.491 |
Plan PL 4x/0.10, PL 10x/0.25, PL S100x/1.25 oil, PLPH S40x/0.65 |
Halogen, adjustable intensity |
Phase condenser with 40x phase plate |
|
86.460-LED |
86.475-LED |
86.491-LED |
Plan PL 4x/0.10, PL 10x/0.25, PL S100x/1.25 oil, PLPH S40x/0.65 |
LED, adjustable intensity |
Phase condenser with 40x phase plate |
|
|
86.525(2) |
86.541(2) |
Phase PH 10x/0.25, PH 20x/0.40, PH S40x/0.65, PH S100x/1.25 oil |
Halogen, adjustable intensity |
Phase condensers with rotating disc and heated stage |
|
|
86.525-LED(2) |
86.541-LED(2) |
Phase PH 10x/0.25, PH 20x/0.40, PH S40x/0.65, PH S100x/1.25 oil |
LED, adjustable intensity |
Phase condensers with rotating disc and heated stage |
(2) Only available with non-reversed objective changer for a maximum of 4 objectives
Accessories:
|
Eyepieces DIN |
||
|
86.572 |
Wide field eyepiece WF 10x/18 |
|
|
86.573 |
Wide field eyepiece WF 15x/12 |
|
|
86.882 |
Wide field eyepiece WF 20x/10 |
|
|
86.574 |
Wide field eyepiece WF 10x/18, with graticule 10 mm. / 100 parts, adjustable lens |
|
|
Objectives |
||
|
86.891 |
Achromatic Semiplan Objective DIN SMP 4x N.A. 0.10 |
|
|
86.893 |
Achromatic Semiplan Objective DIN SMP 10x N.A. 0.25 |
|
|
86.894 |
Achromatic Semiplan Objective DIN SMP 20x N.A. 0.40 |
|
|
86.897 |
Achromatic Semiplan Objective DIN SMP S40x N.A. 0.65 |
|
|
86.900 |
Achromatic Semiplan Objective DIN SMP S100x N.A. 1.25 oil |
|
|
|
|
|
|
80.899 |
Achromatic Objective DIN S60x N.A. 0.85 |
|
|
|
|
|
|
86.511 |
Achromatic |
|
|
86.513 |
Achromatic |
|
|
86.514 |
Achromatic |
|
|
86.517 |
Achromatic |
|
|
80.519 |
Achromatic |
|
|
86.520 |
Achromatic Plan Objective DIN PL S100x N.A. 1.25 oil |
|
|
86.521 |
Achromatic Plan Objective DIN PL S100x N.A. 1.25 oil with iris diaphragm |
|
|
|
|
|
|
86.413 |
Achromatic Phase Objective DIN PH 10x N.A. 0.25 |
|
|
86.414 |
Achromatic Phase Objective DIN PH 20x N.A. 0.40 |
|
|
86.417 |
Achromatic Phase Objective DIN PH S40x N.A. 0.65 |
|
|
86.420 |
Achromatic Phase Objective DIN PH S100x N.A. 1.25 oil |
|
|
|
|
|
|
86.313 |
Achromatic Plan Phase Objective DIN PLPH 10x N.A. 0.25 |
|
|
86.314 |
Achromatic Plan Phase Objective DIN PLPH 20x N.A. 0.40 |
|
|
86.317 |
Achromatic Plan Phase Objective DIN PLPH S40x N.A. 0.65 |
|
|
86.320 |
Achromatic Plan Phase Objective DIN PLPH S100x N.A. 1.25 oil |
|
|
Phase Contrast and Darkfield Equipment |
||
|
86.613 |
Zernike medium dark phase contrast set. The set consists of a special phase condenser N.A. 1.25 with phase plate, an aperture for brightfield illumination and a Phase Objective DIN PLPH S40x N.A. 0.65. Delivered with centring telescope and green filter. |
|
|
86.615 |
Zernike medium dark phase contrast set. The set consists of a special phase condenser N.A. 1.25 with rotating wheel of phase annuli and an aperture for brightfield illumination. Complete with Achromatic Phase Objectives DIN PH 10x N.A. 0.25, ph 20X n.a. O.40, PH S40x N.A. 0.65 and PH S100x N.A. 1.25 oil. Delivered with centring telescope and green filter. |
|
|
86.617 |
Zernike medium dark phase contrast set, same as 86.615, but with Plan Phase Objectives DIN PLPH 10x N.A. 0.25, PLPH 20x N.A. 0.40, PLPH S40x N.A. 0.65 and PLPH S100x N.A. 1.25 oil |
|
|
86.172 |
Darkfield disc to be used with objectives from 10x to 40x. It fits in the filter holder. |
|
|
86.627 |
Condenser for darkfield N.A. 1.20 for objectives 10x to 100x. For blood analysis it is recommended to use the S100 N.A. 1.25 oil objective with iris diaphragm (86.521). The darkfield condenser is used in combination with a cold light source (LE.5210 or LE.5211) and fibre guide (LE.5251). |
|
|
LE.5210 |
Cold light source, 100 Watt Halogen |
|
|
LE.5211 |
Cold light source, 150 Watt Halogen |
|
|
LE.5241 |
Fibre optic light guide, to be mounted under darkfield condenser 86.627 |
|
|
Miscellaneous |
||
|
80.839 |
Pair eyecups for eyepieces, 28 mm. diameter |
|
|
80.810 |
Object glass 76 x 26 mm. with graticule 1 mm. / 100 parts |
|
|
86.812 |
Discussion tube with vertical and oblique tube. Eyepieces not included |
|
|
86.817 |
C-mount adaptor for CCD camera |
|
|
86.820 |
Adaptor for reflex camera for 2.5x and 4x objectives |
|
|
86.127 |
Adaptor for reflex camera. T2 adaptors on request |
|
|
80.861 |
Photo eyepiece PH 2.5x, to be used with 86.127 |
|
|
86.851 |
Polarisation set. The analyser fits under the viewing head and the polariser attaches to the lamp |
|
|
86.852 |
Polarisation set for models with LED illumination |
|
|
86.860 |
Köhler diaphragm with centring, to be mounted on lamp |
|
|
86.889 |
Spare halogen bulb, 6Volt 20 Watt |
|
|
86.101 |
LED assembly replacement for 86.xxx-LED models |
|
|
86.806 |
Mirror with adaptor to be mounted on lamp |
|
|
86.960 |
Wooden cabinet with handle and lock |
|
|
86.961 |
Plastic cabinet |
|
|
|
|
|
|
AE.5202 |
Blue filter, 32 mm. diameter |
|
|
AE.5203 |
Yellow filter, 32 mm. diameter |
|
|
AE.5204 |
Neutral density filter, 32 mm. diameter |
|
|
AE.5205 |
Green filter, 32 mm. diameter |
|
|
AE.5207 |
Blue filter, Plexiglass, 32 mm. diameter |
|
|
AE.5227 |
Spare fuses, 1A, pack of 10 |
|
|
|
|
|
|
PB.5155 |
Microscope 76 x 36 mm. glass slides, edges ground, pack of 50 |
|
|
PB.5168 |
Cover glasses 22 x 22 mm., thickness 0.13 – 0.17 mm., pack of 100 |
|
|
PB.5255 |
Immersion oil n = 1.482, 25 ml. |
|
|
PB.5274 |
Isopropanol 99%, 200ml. cleaning fluid |
|
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
Novex B-Plus Microscopes for Life Sciences
The Novex B-Plus series of bright field and phase control microscopes are ideal for life sciences and are used to observe animal and botanical micro-organisms, cells and tissues with translucent (diascopic) light. These microscopes have an extended 20mm field of view, NeoLED™ illumination and a 5 year warrenty.
- EyepiecesDIN widefield eyepieces WF10x/22 mm
- Head Siedentopf trinocular versions with 30° inclined tube(s), fully rotatable over 360°. Interpupillary distance adjustable between 48 and 75 mm. One eyepiece with diopter adjustment
- Nosepiece Revolving quintuple reversed nosepiece on ball-bearings except models 86.019, 86.019-LED, 86.029, 86.029-LED, 86.049 and 86.049-LED that are equipped with revolving quadruple reversed nosepiece on ball-bearings
- Objectives Available with:
• Semi Plan SMP 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.40, S100x/1.25 oil-immersion DIN objectives
• Plan 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.40,S60x/0.85, S100x/1.25 oil-immersion DIN objectives
• Plan infinity corrected IOS PL 4x/0.10, 10x/0.25, S40x/0.40, S100x/1.25 oil-immersion DIN objectives
• Phase contrast PH 10x/0.25, 20x/0.40, S40x/0.40, S100x/1.25 oil-immersion DIN objectives
• Plan Phase contrast PLPH 10x/0.25, 20x/0.40, S40x/0.40, S100x/1.25 oil-immersion DIN objectives - Stage Standard 125 mm x 135 mm stage equipped with a 75 mm x 35 mm integrated mechanical stage
- Condenser In height adjustable N.A. 1.25 Abbe condenser with filter holder
- Focusing AdjustmentCoaxial coarse and fine adjustments, 2 µm precision Friction adjustment
- Illumination Diascopic intensity adjustable NeoLED™ illumination with internal power supply /charger and 3 NiMH AA batteries for cordless operation or 20W halogen illumination for 85V-240V operation
- Packing Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case
|
Features |
||||||
|
Models |
Mono |
Bino |
Trino |
Nosepiece - Max 4 Obj |
Nosepiece - Max 5 Obj |
Objectives |
|
86.019-LED |
• |
|
|
• |
|
Semi Plan 4x / 10x / S40x / S100-oil |
|
86.029-LED |
|
• |
|
• |
|
Semi Plan 4x / 10x / S40x / S100-oil |
|
86.049-LED |
|
|
• |
• |
|
Semi Plan 4x / 10x / S40x / S100-oil |
|
86.069-LED |
• |
|
|
|
• |
Plan 4x / 10x / S40x / S100-oil |
|
86.079-LED |
|
• |
|
|
• |
Plan 4x / 10x / S40x / S100-oil |
|
86.099-LED |
|
|
• |
|
• |
Plan 4x / 10x / S40x / S100-oil |
|
86.129-LED |
|
• |
|
|
• |
Plan IOS 4x / 10x / S40x / S100-oil |
|
86.149-LED |
|
|
• |
|
• |
Plan IOS 4x / 10x / S40x / S100-oil |
|
86.319-LED |
• |
|
|
• |
|
Semi Plan 4x / 10x / S40x / S100-oil |
|
86.329-LED |
|
• |
|
• |
|
Semi Plan Phase 4x / 10x / S40x / S100-oil |
|
86.349-LED |
|
|
• |
• |
|
Semi Plan Phase 4x / 10x / S40x / S100-oil |
|
86.369-LED |
• |
|
|
|
• |
Plan Phase 4x / 10x / S40x / S100-oil |
|
86.379-LED |
|
• |
|
|
• |
Plan Phase 4x / 10x / S40x / S100-oil |
|
86.399-LED |
|
|
• |
|
• |
Plan Phase 4x / 10x / S40x / S100-oil |
|
Accessories & Spare Parts |
|
|
86.573 |
HWF 15x/12 mm eyepiece |
|
86.574 |
HWF 10x/18 mm eyepiece with micrometer reticule |
|
86.575 |
HWF 10x/20 mm eyepiece |
|
80.882 |
HWF 20x/12 mm eyepiece |
|
80.839 |
Pair eyecups for eyepieces, ø28 mm |
|
86.891 |
Semi Plan DIN SMP 4x/0.10 objective |
|
86.893 |
Semi Plan DIN SMP 10x/0.25 objective |
|
86.894 |
Semi Plan DIN SMP 20x/0.40 objective |
|
86.897 |
Semi Plan DIN SMP S40x/0.65 objective |
|
86.900 |
Semi Plan DIN SMP S100x/1.25-oil objective |
|
80.899 |
Achromatic DIN S60x/0.85 objective |
|
86.511 |
Plan DIN PL 4x/0.10 objective |
|
86.513 |
Plan DIN PL 10x/0.25 objective |
|
86.514 |
Plan DIN PL 20x/0.40 objective |
|
86.517 |
Plan DIN PL S40x/0.65 objective |
|
86.519 |
Plan DIN PL S60x/0.85 objective |
|
86.520 |
Plan DIN PL S100x/1.25-oil objective |
|
86.521 |
Plan DIN PL S100x/1.25-oil objective with iris diaphragm |
|
86.560 |
Plan Infinity colour corrected DIN PL IOS 4x/0.10 objective |
|
86.562 |
Plan Infinity colour corrected DIN PL IOS 10x/0.25 objective |
|
86.564 |
Plan Infinity colour corrected DIN PL IOS 20x/0.40 objective |
|
86.566 |
Plan Infinity colour corrected DIN PL IOS S40x/0.65 objective |
|
86.567 |
Plan Infinity colour corrected DIN PL IOS S60x/0.85 objective |
|
86.568 |
Plan Infinity colour corrected DIN PL IOS S100x/1.25-oil objective |
|
86.413 |
Semi Plan Phase DIN PH 10x/0.25 objective |
|
86.414 |
Semi Plan Phase DIN PH 20x/0.40 objective |
|
86.417 |
Semi Plan Phase DIN PH S40x/0.65 objective |
|
86.420 |
Semi Plan Phase DIN PH S100x/1.25-oil objective |
|
86.313 |
Plan Phase DIN PH 10x/0.25 objective |
|
86.314 |
Plan Phase DIN PH 20x/0.40 objective |
|
86.317 |
Plan Phase DIN PH S40x/0.65 objective |
|
86.320 |
Plan Phase DIN PH S100x/1.25-oil objective |
|
86.613 |
Zernike medium dark phase contrast set. The set consists of a special phase condenser N.A.1 .25 with phase plate, an aperture for bright field illumination and a Phase Objective DIN PLPH S40x/0.65. Delivered with centering telescope and green filter |
|
86.615 |
Zernike medium dark phase contrast set. The set consists of a special phase condenser N.A. 1.25 with rotating wheel of phase annuliand an aperture for bright field illumination. Complete with Achromatic Semi Plan Phase Objectives DIN PH10x/0.25, PH 20x/0.40,PH S40x/0.65 and PH S100x/1.25-oil. Delivered with centering telescope and green filter |
|
86.617 |
Zernike medium dark phase contrast set. The set consists of a special phase condenser N.A. 1.25 with rotating wheel of phase annuliand an aperture for bright field illumination. Complete with Achromatic Plan Phase Objectives DIN PLPH10x/0.25, PLPH 20x/0.40,PLPH S40x/0.65 and PLPH S100x/1.25-oil. Delivered with centering telescope and green filter |
|
86.806 |
Mirror with adapter to be mounted in lamp house |
|
86.851 |
Polarization set. The analyser fits under the viewing head and the polarizer to be mounted on the lamp house |
|
86.852 |
Polarization set for models with LED illumination. The analyser fits under the viewing head and the polarizer attaches to the lamp house |
|
86.860 |
Köhler field diaphragm |
|
86.172 |
Dark field disc to be used with objectives from 10x up to S40x. Fits the filter holder |
|
86.812 |
Discussion head with vertical and obliquetube. Eyepieces not included |
|
86.817 |
C-mount adapter for B series trino tube |
|
86.127 |
Adapter for reflex SLR camera. Require either 80.861 or AE.5049 and a T-2 adapter |
|
80.861 |
2.5x objective for 86.127 to be used with full frame digital camera |
|
AE.5049 |
1,9x objective for 86.127 to be used with APS-C digital cameras |
|
AE.5040 |
T-2 adapter for Canon EOS SLR digital camera |
|
AE.5025 |
T-2 adapter for Nikon SLR digital camera |
|
86.889 |
Spare halogen 6 V 20 W bulb |
|
AE.5202 |
Blue filter ø32 mm |
|
AE.5203 |
Yellow filter ø32 mm |
|
AE.5204 |
Neutral density filter ø32 mm |
|
AE.5205 |
Green filter ø32 mm |
|
AE.5206 |
Blue filter, plexiglas ø32 mm |
|
AE.5227 |
Spare fuses 1A, pack of 10 |
|
AE.5155 |
Microscope glass slides 76 x 26 mm, edges grinded, 50 pcs |
|
AE.5245 |
Lens cleaning paper, 100 sheets |
|
AE.5255 |
Immersion oil n = 1.482, 25 ml |
|
AE.5168-B |
Stage with heating elements and temperature PID controller for B series. Note: Only available with new microscopes |
Novex FL100 and SH45 Monocular Biological Microscopes
The Novex biological microscopes FL-100 and SH-45 are perfect for students and amateur biologists alike. The excellent optical and mechanical construction of these microscopes together with their attractive prices makes them ideal to introduce students to nature sciences.With these robust microscopes you can study the cells of plants and animal tissues. Transparent specimens like wings of a mosquito. a hair, a piece of skin or a drop of water with paramecia can easily be placed between an object and cover glass and examined.
Magnification
The total magnification can be calculated from the magnification of the eyepiece multiplied by the magnification of the objective. All microscopes in this range are equipped with one wide field eyepiece WF 10x/18 with fixed pointer and three objectives 4x, 10x and 40x to achieve magnifications of 40x, 100x and 400x. Magnifications of 200x and 600x can be achieved using 20x and 60x objectives respectively that are available for the FL-100, FL-100 H, SH-45 and SH-45 LED. The SH-45 and SH-45 LED can also be equipped with a 100x objective for magnifications of up to 1000x.
Numerical Aperture
The numerical aperture (N.A.) of the objective indicates the resolution. The higher the numerical aperture the better you can differentiate two points close to each other. It is essential to use a height adjustable Abbe condenser for microscopes with magnifications above 600x. The condenser is mounted below the mechanical stage and focuses the exact amount of light needed through the specimen, which results in a very detailed image.
Condenser
The FL-100 and FL-100 H are equipped with a single lens condenser N.A. 0.65 with iris diaphragm. The SH-45 and SH-45 LED are equipped with a height adjustable Abbe condenser N.A. 1.25.
Focusing
Coarse and fine adjustment knobs provide easy and precise focusing. In the case of the models SH-45 and SH-45 LED these knobs are coaxial, which means that they are mounted on a common axis.
Objective Changer and Objectives
The objective changer of the FL-100 and FL-100 H models can take three objectives. The SH-45 models have an objective changer for mounting four DIN objectives.
The S40x / 0.65 objective is spring-loaded to protect the specimen from damage.
X-Y Stage
For magnifications of 400x and above it is recommended to use an X-Y positioning stage that enables the user to position the specimen slowly and smoothly under the objective.
The SH-45 and SH-45 LED are both supplied with a 50 x 30 mm. X-Y stage on which the control knobs are horizontally positioned. The FL-100 and FL-100 H microscopes that have a plain stage and object clamps can be optionally equipped with an attachable 50 x 30 mm. mechanical stage.
Illumination
Good illumination for microscopes is crucial to get a detailed image of the specimen. Too low light intensity will result in low resolution. Depending on the application you can choose a 20 Watt Tungsten lamp, a 10 Watt halogen lamp or a microscope with a LED illumination.
With a LED illumination with a colour temperature of 4300ºK no heat is developed. The microscope can be used in the field since it is equipped with rechargeable batteries. The LED version is supplied with an adaptor for 230 Volt operations. A halogen illumination with a colour temperature of 3100ºK produces a high intensity light and is very close to the colour spectrum of daylight.
The FL-100 has a Tungsten lamp illumination.
The FL-100 H has a halogen illumination.
The FL-100 LED has an adjustable LED illumination
The SH-45 has an adjustable halogen illumination.
The SH-45 LED has an adjustable LED illumination.
Ordering information:
|
Model |
Viewing head |
Eyepiece |
Objective |
Stage |
|
FL-100 80.200 |
Monocular 160 mm., 45º, 360º rotatable |
WF 10x/18 with fixed pointer, secured |
DIN achromatic 4x/0.10, 10x/0.25, S40x/0.65 |
100 x 120 mm. optional X-Y stage |
|
FL-100 H 80.300 |
Monocular 160 mm., 45º, 360º rotatable |
WF 10x/18 with fixed pointer, secured |
DIN achromatic 4x/0.10, 10x/0.25, S40x/0.65 |
100 x 120 mm. optional X-Y stage |
|
FL-100 LED 80.400 |
Monocular 160 mm., 45º, 360º rotatable |
WF 10x/18 with fixed pointer, secured |
DIN achromatic 4x/0.10, 10x/0.25, S40x/0.65 |
100 x 120 mm. optional X-Y stage |
|
SH-45 82.500 |
Monocular 160 mm., 45º, 360º rotatable |
WF 10x/18 with fixed pointer, secured |
DIN achromatic 4x/0.10, 10x/0.25, S40x/0.65 |
120 x 120 mm. with X-Y stage |
|
SH-45 LED 82.600 |
Monocular 160 mm., 45º, 360º rotatable |
WF 10x/18 with fixed pointer, secured |
DIN achromatic 4x/0.10, 10x/0.25, S40x/0.65 |
120 x 120 mm. with X-Y stage |
|
|
||||
|
Model |
Condenser |
Focusing |
Safety |
Illumination |
|
FL-100 80.200 |
Fixed, N.A. 0.65 with iris diaphragm, filter holder and daylight filter |
Fine and coarse adjustments, non-coaxial (coarse with friction control) |
Adjustable |
Tungsten lamp, 230 Volt 20 Watt |
|
FL-100 H 80.300 |
Fixed, N.A. 0.65 with iris diaphragm, filter holder and daylight filter |
Fine and coarse adjustments, non-coaxial (coarse with friction control) |
Adjustable |
Halogen lamp, 12 Volt 10 Watt |
|
FL-100 LED 80.400 |
Fixed, N.A. 0.65 with iris diaphragm, filter holder and daylight filter |
Fine and coarse adjustments, non-coaxial (coarse with friction control) |
Adjustable |
LED adjustable with rechargeable batteries and adaptor for 230V operation |
|
SH-45 82.500 |
Fixed, N.A. 0.65 with iris diaphragm, filter holder and neutral density filter |
Fine and coarse adjustments, coaxial |
Fixed |
Halogen lamp, 12 Volt 10 Watt adjustable |
|
SH-45 LED 82.600 |
Fixed, N.A. 0.65 with iris diaphragm, filter holder and neutral density filter |
Fine and coarse adjustments, coaxial |
Fixed |
LED adjustable with rechargeable batteries and adaptor for 230V operation |
Accessories:
|
Eyepieces |
|
|
80.885 |
Wide Field eyepiece HWF 10x/18, suitable for users wearing spectacles |
|
80.873 |
Wide field eyepiece WF 15x/12 |
|
80.882 |
Wide Field eyepiece WF 20x/10 |
|
80.574 |
Eyepiece WF 10/18 with adjustable lens and measuring graticule 10 mm. / 100 parts |
|
80.861 |
Photo eyepiece PH 2.5x/10 |
|
Objectives |
|
|
80.894 |
Achromatic DIN objective S20x N.A. 0.40 for FL-100 / FL-100 H |
|
80.899 |
Achromatic DIN objective S60x N.A. 0.85 for FL-100 / FL-100 H |
|
82.894 |
Achromatic DIN objective S20x N.A. 0.40 for SH-45 / SH-45 LED |
|
82.899 |
Achromatic DIN objective S60x N.A. 0.85 for SH-45 / SH-45 LED |
|
82.900 |
Achromatic DIN objective S100x N.A. 1.25 for SH-45 / SH-45 LED |
|
Miscellaneous |
|
|
80.839 |
Eyecup, suitable for all eyepieces with 28 mm. diameter |
|
80.852 |
Polarisation set. Analyser fits in eyepiece and polariser fits into filter holder |
|
80.853 |
Polarisation set. Analyser fits over eyepiece. The polariser is to be mounted into removable stage. Can be rotated over 360º with 5º resolution |
|
80.810 |
Stage micrometer 1 mm. / 100 parts |
|
80.889 |
Spare bulb 230 Volt 20 Watt for FL-100 |
|
80.882 |
Spare halogen bulb 12 Volt 10 Watt for FL-100 H and SH-45 |
|
80.927 |
Adaptor for reflex SLR camera with T2 thread. To be used with photo eyepiece 80.861. T2 rings on request |
|
80.973 |
Positioning X-Y stage, 50 x 30 mm. for FL-100 and FL-100 H |
|
80.960 |
Wooden cabinet with handle and lock for FL-100 and FL-100 H |
|
80.961 |
Plastic cabinet with lock for FL-100 and FL-100 H |
|
82.960 |
Wooden cabinet with handle and lock for SH-45 and SH-45 LED |
Novex Basic Teaching Microscopes
Novex microscopes stand for quality and reliability. A lot of attention has been paid to the mechanical and optical components for basic teaching. The microscopes are very well priced despite the use of high quality materials.
Novex Junior Biological Microscope (Model No. 81.500)
The Novex Junior with LED illumination and rechargeable batteries is a perfect biological microscope for basic education. It can be used everywhere in the class or in the field without the need for a 230 Volts power supply.
Technical information:
- Viewing head: Monocular, 45º tube inclined and 360º rotatable
- Eyepiece: Wide field WF 10x with fix arrow.
- Objectives: 4x / 0.10, 10x / 0.25 and a spring loaded S40X / 0.65 objectives
- Stand: Light metal, 150 x 120 mm. (L x W).
- Revolver:With 3 objectives.
- Stage: 90 x 90 mm. with 2 object clamps.
- Condenser: 6 positions single lens disc condenser.
- Illuminator : LED illumination with rechargeable batteries
- Focusing: Lateral positioned coarse focusing mechanism
- Safety: Height adjustable safety stop, preventing damage to objective and specimen
- Packing: Styrofoam box. Dust cover included
Novex OP-1 Stereo Microscope (Model No. 50.890)
The Novex OP-1 stereo microscope is very suitable for biology classes in basic teaching. Compact, light and without illumination.
Technical information:
- Viewing head: Binocular with diopter adjustment
- Eyepieces: Pair of secured wide field WF 10x eyepieces with eyeshades
- Objective: Interchangeable 2x objective
- Stand: Light metal, white epoxy plated, with 180 x 115 mm. (L x W) base, object plate and two object clamps
- Illumination: None
- Focusing: Lateral positioned coarse focusing mechanism
- Safety: Height adjustable safety stop, preventing damage to objective and specimen
- Packing: Styrofoam box. Dust cover included
Options:
50.831 Interchangeable 1x objective
50.833 Interchangeable 3x objective
50.834 Interchangeable 4x objective
50.836 Interchangeable 6x objective
Novex MA Macroscope (Model No. 55.300)
The Novex MA or Macroscope is a single objective and single eyepiece microscope. Very compact and without illumination.
Technical information:
- Viewing head: Monocular, rotatable
- Eyepiece: Interchangeable wide field WF 10x
- Objective: Fix mounted 2x objective
- Stand: Light metal, white epoxy plated, with 140 x 110 mm. (L x W) base, object plate and two object clamps
- Illumination: None
- Focusing: Lateral positioned coarse focusing mechanism
- Safety: Height adjustable safety stop, preventing damage to objective and specimen
- Packing: Styrofoam box. Dust cover included
Options:
80.873 Wide field eyepiece WF 15x / 12
50.882 Wide field eyepiece WF 20x / 10
Novex MicroSmart Compact, Affordable Binocular Biological Microscopes
In the category of compact binocular biological microscopes, the NovexμSmart is the only model equipped with 4 achromatic objectives, a mechanical stage and a height adjustable Abbe condenser. Together with the coarse and fine adjustment and a strong halogen light source, the μSmart offers an ideal solution for everybody with a limited budget to acquire an outstanding microscope of this category.
The μSmart is suitable for education purposes and demanding amateurs
General technical information
- Eyepiece:WF 10x/18 wide field eyepiece, secured with screw. Monocular models have an eyepiece with built-in pointer
- Observation tube:Binocular with 30º inclined Siedentopf type head, 360° rotatable. One tube is equipped with diopter adjustment. Interpupillary adjustment between 55 and 75 mm. Tube length 160 mm.
- Nosepiece: With ball bearings and for 4 objectives
- Objectives:Achromatic, 35 mm. parfocal 4x / 0.10, 10x / 0/25, S40x / 0.65 and S100x / 1.25 oil immersion objectives / The S40x and S100X objectives are spring mounted
- Stand: Coarse and fine adjustment knobs
- Protection:Built in protection system for specimen and objective
- Stages:A 120 x 115 mm plain stage and mechanical stage with 80 x 35 mm range with coaxial vertical mounted adjustment knobs. Double 0.1 mm, nonius and removable object holder
- Focus control: Coaxial coarse and fine vertical mounted adjustment knobs
- Condenser: Height adjustable Abbe condenser N.A. 1.25 mounted in centreing ring. With aperture diaphragm, filter holder and blue filter
- Illumination: Built-in 12 Volts 20 Watt halogen illumination with adjustable light intensity. Built-in 230 Volts transformer with On / Off switch
- Packaging: Complete with dustcover in styrofoam case.
- Dimensions: 205L x 150W x 340H mm.
Ordering information:
|
Options and spare parts: |
|
|
81.600 |
Novex MicroSmart Binocular Biological Microscope |
|
81.672 |
Wide field WF 10x / 18 eyepiece |
|
80.873 |
Wide field WF 15x /12 eyepiece |
|
80.882 |
Wide field WF 20x / 10 |
|
80.574 |
Micrometer wide field WF 10x / 18 eyepiece with adjustable lens 10 / 100 mm. scale (to be used together with 80.572 eyepiece) |
|
80.839 |
Eyeshade |
|
80.810 |
Stage micrometer 1 mm. / 100 parts |
|
AE.5191-C |
Achromatic 4x / 0.10 35 mm. objective |
|
AE.5193-C |
Achromatic 10x / 0.25 35 mm. objective |
|
AE.5194-C |
Achromatic 20x / 0.40 35 mm. objective |
|
AE.5197-C |
Achromatic S40x / 0.65 35 mm. objective |
|
AE.5199-C |
Achromatic S60x / 0.85 35 mm. objective |
|
AE.5102-C |
Achromatic S100x / 1.25 oil immersion 35 mm. objective |
|
AE.5150 |
Polarisation set. The analyser is placed in the eyepiece and the polariser in the filter holder |
|
SL.1379 |
Spare halogen bulb 12 Volts 20 Watt |
|
AE.5227 |
Spare fuses 1A (pack of 10) |
Stereo Microscopes
Euromex D Series Advanced Stereo Zoom Microscopes
These modular microscopes are engineered around a precise common main objective and a parallel zoom system to reach unrivalled optical performance with stunning images. Ergonomics, quality and flexibility have been the basics for these top class microscopes designed to meet today’s demanding applications.
Zoom Body
The heart of the system is the D Zoom stereo body featuring a 10:1 zoom ratio and built-in adjustable double iris diaphragms. The zooming knob features click-stops which eliminates the need to remove your eyes from the eyepieces while changing the magnification. A coaxial coarse and fine focus mechanism with a 50 mm. focusing range is provided for ultra smooth and precise focus control
Stereo Heads
One can choose between a standard and ergonomic head. The eyepiece tubes of the ergonomic head are positioned low and can be adjusted between 10º and 50º, which enables easy and comfortable operation in the right position. The interpupillary distance is adjustable between 52 mm. and 75 mm. The standard head is equipped with a 45º angled tube, interpupillary distance 46 – 75 mm.
Optics
The parallel optical paths of the Euromex D Series together with a common main objective and ultra wide field eyepieces offer distortion-free, high resolution images at magnifications ranging from 3.75x to 300x.
Parallel Optical System
Two perpendicular columns of eight zoom lenses in four groups move in a smooth, continuous motion by rotating the ergonomically positioned zoom control. This parallel system design allows quick mounting and exchanging a diversity of optical components such as an independent beamsplitter, a coaxial illuminator and photo and video attachments. For a wide variety of applications this instrument can be configured according to customer demands.
Stands
The anti-static aluminium alloy base of the D Series are suited for ESD applications which enables work with sensitive electronic components. Both stands with or without built-in transmitted halogen illumination are available. Also available is a brightfield / darkfield stand including cold-light source and flexible light conductor especially for observing transparent objects.
Coaxial Illumination
The coaxial vertical illumination is used to observe flat, highly reflective objects such as integrated circuits, semiconductor wafers, polished metal specimens, solder balls or magnetic recording heads. The illuminator is mounted between the body and the viewing head and directs light down through the objective onto the specimen.
When using the stand without illuminator or the brightfield / darkfield stand a separate transformer must be used. When the stand with illumination is used the coaxial illuminator can be connected to the transformer of the stand. The total magnification is increased by a factor 1.5x when the coaxial illuminator is used.
A quarter wave plate is delivered together with the coaxial vertical illuminator to view reflective specimens. The quarter wave plate is attached to the bottom of the objective and is rotated to achieve the desired effect.
Incidence Illumination
When using the microscope for longer periods it is essential to use a proper illuminator. One can choose to use a cold-light illumination with several glass fibre light conductors, neon-fluorescence illumination or a LED ring illuminator. Euromex has a specific brochure with a detailed overview of the different types of illuminators.
Photo / Video Attachment
With the photo / video attachment it is possible to attach a digital photo camera as well as a video camera. This attachment has a prism beamsplitter that divides the light between the photo tube (80%) and the eyepieces (20%). This enables observing through the eyepieces and through the camera or at the monitor at the same time.
Optionally an additional video attachment is available which fits on the left side of the photo / video attachment and to which a CCD video camera can be connected. There is a wide variety of photo camera and C-mount adaptors for photo and CCD cameras available.
Plan achromatic objectives – ocular UWF 10x – field number 24
|
|
Objective 1.0x |
Objective 0.5x |
Objective 0.75x |
|||
|
Zoom indication |
Working distance 76 mm. Total Field of view magnification in mm |
Working distance 164 mm. Total Field of view magnification in mm. |
Working distance 101 mm. Total Field of view magnification in mm. |
|||
|
0.75 |
7.5x |
32 |
3.75x |
64 |
5.62x |
42.7 |
|
1 |
10x |
24 |
5x |
48 |
7.5x |
32 |
|
1.5 |
15x |
16 |
7.5x |
32 |
11.25x |
21.3 |
|
2 |
20x |
12 |
10x |
24 |
15x |
16 |
|
2.5 |
25x |
9.6 |
12.5x |
19.2 |
18.75x |
12.8 |
|
3 |
30x |
8 |
15x |
16 |
22.5x |
10.7 |
|
3.5 |
35x |
6.9 |
17.5x |
13.7 |
26.25x |
9.1 |
|
4 |
40x |
6 |
20x |
12 |
30x |
8 |
|
5 |
50x |
4.8 |
25x |
9.6 |
37.5x |
6.4 |
|
6 |
60x |
4 |
30x |
8 |
45x |
5.3 |
|
7 |
70x |
3.4 |
35x |
6.9 |
52.5x |
4.6 |
|
7.5 |
75x |
3.2 |
37.5x |
6.4 |
56,25x |
4.3 |
continued:
|
|
Objective 1.5x |
Objective 2.0x |
||
|
Zoom indication |
Working distance 43 mm. Total Field of view magnification in mm |
Working distance 29 mm. Total Field of view magnification in mm. |
||
|
0.75 |
11.25x |
21.3 |
15x |
16 |
|
1 |
15x |
16 |
20x |
12 |
|
1.5 |
22.5x |
10.7 |
30x |
8 |
|
2 |
30x |
8 |
40x |
6 |
|
2.5 |
37.5x |
6.4 |
50x |
4.8 |
|
3 |
45x |
5.3 |
60x |
4 |
|
3.5 |
52.5x |
4.6 |
70x |
3.4 |
|
4 |
60x |
4 |
80x |
3 |
|
5 |
75x |
3.2 |
100x |
2.4 |
|
6 |
90x |
2.7 |
120x |
2 |
|
7 |
105x |
2.3 |
140x |
1.7 |
|
7.5 |
112.5x |
2.1 |
150x |
1.6 |
Plan achromatic objectives – ocular UWF 15x – field number 16
|
|
Objective 1.0x |
Objective 0.5x |
Objective 0.75x |
|||
|
Zoom indication |
Working distance 76 mm. Total Field of view magnification in mm |
Working distance 164 mm. Total Field of view magnification in mm. |
Working distance 101 mm. Total Field of view magnification in mm. |
|||
|
0.75 |
11.25x |
21.3 |
5.62x |
42.7 |
8.43x |
28.4 |
|
1 |
15x |
16 |
7.5x |
32 |
11.25x |
21.3 |
|
1.5 |
22.5x |
10.7 |
11.25x |
21.3 |
16.87x |
14.2 |
|
2 |
30x |
8 |
15x |
16 |
22.5x |
10.7 |
|
2.5 |
37.5x |
6.4 |
18.75x |
12.8 |
28.12x |
8.5 |
|
3 |
45x |
5.3 |
22.5x |
10.7 |
33.75x |
7.1 |
|
3.5 |
52.5x |
4.6 |
26.2x |
9.1 |
39.37x |
6.1 |
|
4 |
60x |
4 |
30x |
8 |
45x |
5.3 |
|
5 |
75x |
3.2 |
37.5x |
6.4 |
56.25x |
4.3 |
|
6 |
90x |
2.7 |
45x |
5.3 |
67.5x |
3.6 |
|
7 |
105x |
2.3 |
52.5x |
4.6 |
78.7x |
3 |
|
7.5 |
112.5x |
2.1 |
56.25x |
4.3 |
84.37x |
2.8 |
continued:
|
|
Objective 1.5x |
Objective 2.0x |
||
|
Zoom indication |
Working distance 43 mm. Total Field of view magnification in mm |
Working distance 29 mm. Total Field of view magnification in mm. |
||
|
0.75 |
16.87x |
14.2 |
22.5x |
10.7 |
|
1 |
22.5x |
10.7 |
30x |
8 |
|
1.5 |
33.75x |
7.1 |
45x |
5.3 |
|
2 |
45x |
5.3 |
60x |
4 |
|
2.5 |
56.25x |
4.3 |
75x |
3.2 |
|
3 |
67.5x |
3.6 |
90x |
2.7 |
|
3.5 |
78.75x |
3 |
105x |
2.3 |
|
4 |
90x |
2.7 |
120x |
2 |
|
5 |
112.5x |
2.1 |
150x |
1.6 |
|
6 |
135x |
1.8 |
180x |
1.3 |
|
7 |
157.5x |
1.5 |
210x |
1.1 |
|
7.5 |
168.7x |
1.4 |
225x |
1 |
Plan achromatic objectives – ocular UWF 20x – field number 12
|
|
Objective 1.0x |
Objective 0.5x |
Objective 0.75x |
|||
|
Zoom indication |
Working distance 76 mm. Total Field of view magnification in mm |
Working distance 164 mm. Total Field of view magnification in mm. |
Working distance 101 mm. Total Field of view magnification in mm. |
|||
|
0.75 |
15x |
16 |
7.5x |
32 |
11.25x |
21.3 |
|
1 |
20x |
12 |
10x |
24 |
15x |
16 |
|
1.5 |
305x |
8 |
15x |
16 |
22.5x |
10.7 |
|
2 |
40x |
6 |
20x |
12 |
30x |
8 |
|
2.5 |
50x |
4.8 |
25x |
9.6 |
37.5x |
6.4 |
|
3 |
60x |
4 |
30x |
8 |
45x |
5.3 |
|
3.5 |
70x |
3.4 |
35x |
6.9 |
52.5x |
4.6 |
|
4 |
80x |
3 |
40x |
6 |
60x |
4 |
|
5 |
100x |
2.4 |
50x |
4.8 |
75x |
3.2 |
|
6 |
120x |
2 |
60x |
4 |
90x |
2.7 |
|
7 |
140x |
1.7 |
70x |
3.4 |
105x |
2.3 |
|
7.5 |
150x |
1.6 |
75x |
3.2 |
112.5x |
2.1 |
continued:
|
|
Objective 1.5x |
Objective 2.0x |
||
|
Zoom indication |
Working distance 43 mm. Total Field of view magnification in mm |
Working distance 29 mm. Total Field of view magnification in mm. |
||
|
0.75 |
22.5x |
10.7 |
30x |
8 |
|
1 |
30x |
8 |
40x |
6 |
|
1.5 |
45x |
5.3 |
60x |
4 |
|
2 |
60x |
4 |
80x |
3 |
|
2.5 |
75x |
3.2 |
100x |
2.4 |
|
3 |
90x |
2.7 |
120x |
2 |
|
3.5 |
105x |
2.3 |
140x |
1.7 |
|
4 |
120x |
2 |
160x |
1.5 |
|
5 |
150x |
1.6 |
200x |
1.2 |
|
6 |
180x |
1.3 |
240x |
1 |
|
7 |
210x |
1.1 |
280x |
0.9 |
|
7.5 |
225x |
1 |
300x |
0.8 |
Ordering information:
The D zoom body is the base unit for configuring your specific D Series microscope. You can choose between a standardand ergonomic head after which the desired stand can be chosen. By selecting the eyepieces and objectives your microscope is complete. Besides these main components the configuration can be extended with several accessories.
|
Body |
|
|
DE.1400 |
10:1 zoom body with built-in dual iris diaphragm and click-stops |
|
Heads |
|
|
DE.1425 |
Binocular head 45º |
|
DE.1430 |
Ergonomic binocular head, angle adjustable between 10º and 50º |
|
UWF – ultra wide field eyepieces, with high eye point complete with eyeshades, per piece |
|
|
DE.1436 |
UWF 10x/24 ocular, focusable |
|
DE.1437 |
UWF 15x/17 ocular, focusable |
|
DE.1438 |
UWF 20x/12 ocular, focusable |
|
DE.1439 |
UWF 10x/24 ocular, focusable, with micrometer. Scale on X andY axes, 10 mm. / 100 |
NOTE: All other eyepieces can be equipped with micrometer and cross hair
|
Objectives |
|
|
DE.1446 |
Plan objective 0.5x, working distance 164 mm. |
|
DE.1447 |
Plan objective 0.75x, working distance 101 mm. |
|
DE.1448 |
Plan objective 1.0x, working distance 76 mm. |
|
DE.1449 |
Plan objective 1.5x, working distance 43 mm. |
|
DE.1450 |
Plan objective 2.0x, working distance 29 mm. |
|
Stands and attachable mechanical stages |
|
|
DE.1410 |
Stand with black/white object plate, 95 mm. dia., size base plate 280 x 255 x 35 mm. with vertical stand post 325 mm. |
|
DE.1415 |
Stand with transmitted adjustable halogen illumination, 6 Volts, 30 Watt. Connection for 230V. With transparent object plate, 95 mm. dia. Size base plate 280 x 255 x 85 mm. with vertical stand post 325 mm. Including a second transformer to connect the optional coaxial illumination |
|
DE.1420 |
Stand brightfield / darkfield for observing transparent objects. Adjustable transmitted illumination through 100 Watt cold-light source with flexible 8 mm. glass fibre light conductor, length 1000 mm. Brightfield / darkfield fader switch on the front of the stand. With transparent object plate, 95 mm. dia. Size base plate 280 x 255 x 85 mm. with vertical stand post 325 mm. |
|
DE.1482 |
Attachable mechanical stage, 170 x 155 mm. The top plate has ball bearings and can easily be moved by hand. X-Y translation 100 x 105 mm. For stand DE1410 |
|
DE.1483 |
Attachable mechanical stage, 145 x 115 mm. with horizontal coaxial control knobs. With scale and vernier, X-Y translation 75 x 50 mm. With glass plate for transmitted light for stands DE.1415 and DE.1420 |
|
DE.1485 |
Polarisation stage, 150 mm. dia., rotatable with scale 1 degree. Including polariser, quarter wave plate and object clamps. To be used with analyser DE.1486. An optional filter gypsum red, 1st. order is available |
|
DE.1486 |
Analyser for mounting below the objective |
|
Illuminators and Filters |
|
|
DE.1470 |
Coaxial vertical illuminator, 6 Volts 30 Watt halogen, including quarter wave plate in holder |
|
DE.1471 |
Transformer 230 Volts for DE.1470 for stands DE.1410 and DE.1420 |
|
DE.1473 |
Filter gypsum red. 1st. order |
|
The filters below can be shifted – per 2 pieces – in the coaxial illuminator |
|
|
DE.1474 |
Blue filter clear LB100 in metal holder, 18 mm. dia. |
|
DE.1475 |
Green filter G533 in metal holder, 18 mm. dia. |
|
DE.1476 |
Yellow filter clear Y48 in metal holder, 18 mm. dia. |
|
DE.1477 |
Neutral density filter ND2 in metal holder, 18 mm. dia. |
|
DE.1478 |
Neutral density filter ND8 in metal holder, 18 mm. dia. |
|
DE.1490 |
Neon-fluorescence ring illumination, colour temperature 5200ºK, 40,000 Hz. Connection for 230V |
|
LE.5210 |
Cold-light illumination with 100 Watt halogen lamp, adjustable light intensity |
|
LE.5214 |
Dual arm, self-supporting light conductors, length 500 mm. |
|
LE.5239 |
Ring illuminator with 600 mm. flexible arm, glass fibre bundle, 8 mm. dia. |
|
LE.1970 |
LED ring illuminator containing 56 LED’s, colour temperature max. 4300ºK. Adjustable light intensity |
|
SL.5219 |
Spare bulb for LE.5210 |
|
SL.5230 |
“Long-life” spare bulb for LE.5210 |
|
Photo / Video Attachment |
|
|
DE.1491 |
Photo / video attachment |
|
DE.1492 |
Additional video attachment, for mounting on DE.1491 |
|
C-mount Adaptors |
|
|
AE.5059 |
Universal C-mount adaptor with photo-eyepiece 0.45x, optionally a micrometer can be built-in |
|
AE.5063 |
Universal C-mount adaptor with photo-eyepiece 0.7x, optionally a micrometer can be built-in |
|
Photo Adaptors |
|
|
AE.5061 |
Photo eyepiece PH 2.5x / 16 |
|
AE.5062 |
Photo eyepiece PH 5x / 9.5 |
|
AE.5046 |
Photo eyepiece PH 3.3x with micrometer 10 / 100 |
|
AE.5129 |
SLR camera adaptor with built-in optics and set up eyepiece with image mask. With T2 mount to be used with a photo eyepiece |
NOTE: On request Metascientific.com supply T2 adaptors for AE.5127 and AE.5129 and adaptors for digital photo cameras. Please enquire for an overview of our camera range.
Euromex E Series Stereo and Z Series Stereo Zoom Microscopes
Stereo microscopes are often used in science and industry for research, inspection, manufacturing or modification of extremely small objects. Due to its high contrast and wide field of view, stereo microscopes are perfectly suitable for such applications.
The E Series and Z Series microscopes are used in a wide variety of applications for medical doctors, biologists, dental technicians and renovators. In the electronics, fine mechanical, galvanic, graphical and food industry these high quality microscope series are used for research and quality control due to their brilliant optical performance.
The E Series and Z Series microscopes can be configured in accordance with customer specifications due to its modular components. For each application it is possible to choose the right stereo head and stand and with the wide choice of supplementary objectives and eyepieces the desired magnifications can simply be constructed. The robust metal frame of these microscopes guarantees a long life time.
Optical System
The super wide field eyepieces 10x/23 together with the highly light transmitting objectives provide an outstanding image clarity with a large field of view and high contrast. This results in comfortable viewing even after long hours of observation. The E Series has two pairs of objectives mounted in a revolving nosepiece. The left tube has diopter adjustment.
The magnification of the zoom objective of the Z Series can smoothly be adjusted through easy to operate ergonomic control knobs located on both sides of the microscope. Both tubes have diopter adjustment.
Illumination
When using the microscope for longer periods it is essential to use a proper illuminator. One can choose to use a cold light illumination with several glass fibre light conductors, neon-fluorescence illumination or a LED ring illuminator. Euromex has a specific brochure with a detailed overview of the different types of illuminators.
Ordering information:
|
Stereo heads E Series 45º tube, with 2 pair of objectives in revolving nosepiece |
||||||||||
|
EE.1521 - binocular |
EE.1522 – binocular EE.1552 - trinocular |
EE.1523 - binocular EE.1553 - trinocular |
EE.1524 – binocular EE.1554 - trinocular |
|||||||
|
Objectives: 0.5x and 1x Magnification: 5x and 10x Field number: 46 and 23 mm. Free working distance: 200 mm. Specifically for stands ST.1715, ST.1720, ST.1770, ST.1780, ST.1785 |
Objectives: 1x and 2x Magnification: 10x and 20x Field number: 23 and 11.5 mm. Free working distance: 110 mm. |
Objectives: 1x and 3x Magnification: 10x and 30x Field number: 23 and 7.7 mm. Free working distance: 80 mm. |
Objectives: 2x and 4x Magnification: 20x and 40x Field number: 11.5 and 5.7 mm. Free working distance: 63 mm. |
|||||||
|
Stereo heads Z Series with zoom objective |
||||||||||
|
ZE.1624 – binocular* ZE.1654 – trinocular* |
ZE.1670 – binocular ZE.1671 – trinocular |
ZE.1626 - binocular |
||||||||
|
Tube: 45º Zoom objective: 0.7x – 4.5x Magnification: 7x – 45x Field number: 32 – 5.1 mm. Free working distance: 93 mm. |
Tube: 45º Zoom objective: 1x – 7x Magnification: 10x – 70x Field number: 23 – 3.29 mm. Free working distance: 104 mm. ZE.1671: when using photo tube the image remains visible in both eyepieces |
Similar to ZE.1624 but with 60º tube, suitable to mount on instruments or machines. Free working distance: 93 mm. |
||||||||
|
ZE.1629 - binocular |
ZE.1657 – trinocular |
ZE.1659 - trinocular |
||||||||
|
Similar to ZE.1624 but with 90º tube, suitable to mount on instruments or machines. Free working distance: 110 mm. |
Similar to ZE.1654 but when using photo tube the image remains visible in both eyepieces. Free working distance: 104 mm. |
Similar to ZE.1657 but with Zoom objective: 0.4x – 2.5x Magnification: 4x – 25x Free working distance: 185 mm. With opening for flexible light conductor for semi coaxial illumination |
||||||||
* For click-stop versions add suffix D to article number
|
Stands without illumination |
||||||||||
|
ST.1710 |
ST.1715 |
ST.1717 |
||||||||
|
210 mm. stand post 20 mm. dia. Black/white object plate 2 object clamps Holder ST.1790 for height adjustment Size: 240L x 150W x 250H mm. |
Similar to ST.1710 but with Holder ST.1792 for stereo head with moveable lamp holder 250 mm. long post Size: 240L x 150W x 290H mm. |
Similar to ST.1710 but with extra large base and a 250 mm. long post Size: 320L x 250W x 290H mm. |
||||||||
|
Stand with illumination |
||||||||||
|
ST.1740 |
Base plate 60 mm. height with telescopic arm Black/white and transparent object plate The height adjustable holder is mounted to the telescopic arm Size: 240H x 160W x 240-290H mm. Adjustable halogen illumination 10 Watt Incident illumination with blue filter, Transmitted illumination with diffuse filter. The illumination can be controlled separately and simultaneously Built-in transformer 230 Volts Not for stereo head EE.1521 |
|||||||||
|
Stands with darkfield illumination |
||||||||||
|
ST.1750 stand, perfectly suitable to observe gems |
ST.1760 stand, perfectly suitable to observe gems, contact lenses and other objects with poor contrast |
|||||||||
|
Round base plate, 260 mm. dia, Tilted adjustable stand With moveable object holder AE.5446 The height adjustable holder is mounted to the arm Size: 260L x 260W x 300H mm. Illumination: darkfield 230 Volts, 40 Watt halogen, mounted in the stage Light intensity can be adjusted with the iris diaphragm Not for stereo head EE.1521 |
Stand post 210 mm. x 20 mm. dia. With moveable object holder AE.5446 Holder ST.1790 for height adjustment Size: 240L x 150W x 260H mm. Illumination: transmitted illumination through fibre optic conductor, which is connected to the 100 Watt cold-light source LE.5210. Attachable darkfield set up AE.1878 An additional fibre light conductor can be supplied on request Not for stereo heads EE.1521 or ZE.1659
|
|||||||||
|
Stands with darkfield illumination |
||||||||||
|
ST.1750 stand, perfectly suitable to observe gems |
ST.1760 stand, perfectly suitable to observe gems, contact lenses and other objects with poor contrast |
|||||||||
|
Round base plate, 260 mm. dia, Tilted adjustable stand With moveable object holder AE.5446 The height adjustable holder is mounted to the arm Size: 260L x 260W x 300H mm. Illumination: darkfield 230 Volts, 40 Watt halogen, mounted in the stage Light intensity can be adjusted with the iris diaphragm Not for stereo head EE.1521 |
Stand post 210 mm. x 20 mm. dia. With moveable object holder AE.5446 Holder ST.1790 for height adjustment Size: 240L x 150W x 260H mm. Illumination: transmitted illumination through fibre optic conductor, which is connected to the 100 Watt cold-light source LE.5210. Attachable darkfield set up AE.1878 An additional fibre light conductor can be supplied on request Not for stereo heads EE.1521 or ZE.1659
|
|||||||||
|
Articulating arm stands for table or wall mounting |
||||||||||
|
ST.1780 for table mounting |
ST.1785 for wall mounting |
|||||||||
|
Stand post 560 mm, x 28 mm with console for table mounting Holder ST.1790 for height adjustment Stand Size 1100L x 100W x 560H mm |
Similar to ST.1780 but without stand post With console for wall mounting
|
|||||||||
|
Holders for stereo heads with height adjustment to attach on instruments or machines |
||||||||||
|
ST.1790 |
ST.1792 |
ST.1794 |
ST.1796 |
ST.1798 |
||||||
|
Connection opening for base pillar 20 mm. dia. Internal diameter ring holder 84 mm. Friction is adjustable |
Similar to ST.1790 but with moveable holder for illuminator |
Similar to ST.1792 but with hinge for movement in all directions |
Similar to ST.1790 but with coaxial coarse and fine adjustment with scale |
Similar to ST.1794 but with coaxial coarse and fine adjustment with scale |
||||||
Optional Accessories:
|
Super wide field eyepieces, per pair |
|
|
AE.1835 |
SWF 5x / field number 26 |
|
AE.1836 |
SWF 10x/23 |
|
AE.1834 |
SWF 12.5x / 20 |
|
AE.1837 |
SWF 15x / 16 |
|
AE.1838 |
SWF 20x / 11.5 |
|
AE.1840 |
SWF 30x / 7.5 |
|
AE.5439 |
Eyeshades for all eyepieces |
|
AE.5425 |
Eyeshades for spectacle wearers, for all eyepieces |
|
SWF measuring eyepieces with adjustable eye lens, per piece |
|
|
AE.1839 |
SWF 10x/21 with micrometer 10 mm. / 100 and cross hair |
|
AE.1841 |
SWF 10x/21 with reticule 10 x 10 mm. in 400 squares |
|
AE.1842 |
SWF 10x/21 with image masks for photography |
|
Object micrometers for calibration of measuring eyepieces |
|
|
AE.1110 |
Object micrometer 1 mm. divided into 100 parts, printed on glass plate 76 x 26 mm. |
|
AE.1111 |
Object micrometer 2 mm. divided into 200 parts, printed on glass plate 76 x 26 mm. |
|
Supplementary objectives for stereo microscopes with 1x/2x and 1x/3x objectives |
|
|
AE.1846 |
Objective 0.5x, W.D. 100 mm. |
|
AE.1847 |
Objective 0.75x, W.D. 63 mm. |
|
AE.1848 |
Objective 1.5x, W.D. 35 mm. |
|
AE.1849 |
Objective 2.0x, W.D. 21 mm. |
|
Supplementary objectives for stereo microscopes with 2x/4x objectives |
|
|
AE.1851 |
Objective 0.5x, W.D. 100 mm. |
|
AE.1852 |
Objective 0.75x, W.D. 63 mm. |
|
AE.1853 |
Objective 1.5x, W.D. 35 mm. |
|
AE.1854 |
Objective 2.0x, W.D. 21 mm. |
|
Supplementary objectives for stereo microscopes |
|
|
AE.1850 |
Objective 0.7x, W.D. 300 mm. for EE.1521, W.D. 233 mm. for ZE.1659 |
|
AE.1822 |
Objective 0.57x, W.D. 300 mm. for ZE.1659 |
|
Supplementary objectives for zoom stereo microscopes with tube 45º or 60º |
|
|
AE.1855 |
Objective 0.3x, W.D. 250 mm., for stands ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1870 |
Objective 0.44x, W.D. 180 mm., for stands ST.1715, ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1856 |
Objective 0.5x, W.D. 150 mm., maximum object height for stand ST.1740 is 15 mm. |
|
AE.1857 |
Objective 0.75x, W.D. 97 mm. |
|
AE.1858 |
Objective 1.5x, W.D. 50 mm. |
|
AE.1859 |
Objective 2.0x, W.D. 34 mm. |
|
Supplementary objectives for zoom stereo microscopes with straight tube 90º |
|
|
AE.1805 |
Objective 0.3x, W.D. 330 mm., for stands ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1806 |
Objective 0.5x, W.D. 198 mm., for stands ST.1715, ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1807 |
Objective 0.75x, W.D. 125 mm. |
|
AE.1808 |
Objective 1.5x, W.D. 62 mm. |
|
AE.1809 |
Objective 2.0x, W.D. 42 mm. |
|
Supplementary objectives for zoom stereo microscope ZE.1657 |
|
|
AE.1816 |
Objective 0.35x, W.D. 250 mm. |
|
AE.1817 |
Objective 0.5x, W.D. 174 mm. |
|
AE.1818 |
Objective 1.5x, W.D. 57 mm. |
|
Safety glasses, to be fitted below the objectives |
|
|
AE.1843 |
Safety glass for E Series with objectives 1x/2x or 1x/3x |
|
AE.1844 |
Safety glass for E Series with objectives 2x/4x |
|
AE.1845 |
Safety glass for Zoom stereo microscopes except ZE.1659 |
|
AE.1825 |
Safety glass for EE.1521, ZE.1659. Can not be used in combination with supplementary objectives |
|
SMD attachment |
|
|
AE.1940 |
Rotatable attachment for inspection of PCB, etc. Soldered components can be inspected both vertically and angled. Built-in lens 0.3x for angled and 0.44x for vertical observation. Working distance 110 mm. and 80 mm. To be mounted below the objectives of the zoom heads ZE.1624 and ZE.1654. Only for ST.1720 and ST.1770 |
|
Darkfield |
|
|
AE.1878 |
Darkfield attachment suitable for all stands with transmitted illumination |
|
AE.1879 |
Iris diaphragm with adaptor, fits on AE.1878 |
|
AE.1871 |
Object stage for darkfield attachment. With using an objective slide it is possible to observe a transparent object like a contact lens or gem. Only for stand ST.1760 |
|
Polarisation |
|
|
AE.1890 |
Analyser in rotatable mount. For stereo microscopes except ZE.1659 |
|
AE.1891 |
Polariser in holder. For stands ST.1740 and ST.1760 |
|
AE.1892 |
Retardation filter, gypsum red 1st. order, fits on polariser AE.1891 |
|
Mechanical Stages |
|
|
AE.1876 |
Attachable mechanical stage with ball bearings. The top plate (145 x 115 mm.) can be moved with horizontal coaxial control knobs. With scale and vernier. Range 75 x 50 mm. For stands ST.1710, ST.1715 and ST.1740 |
|
AE.1896 |
Similar to ST.1876 but centred glass plate for transmitted illumination. For stands ST.1740 and ST.1760 |
|
AE.1877 |
Attachable top plate mechanical stage 170 x 155 mm. The top plate has ball bearings and can easily be moved by hand. X-Y translation 100 x 105 mm. Suitable for stands ST.1710, ST.1715 and ST.1740 |
|
AE.1950 |
Large SMD mechanical stage with ball bearings, size 390 x 390 mm. X-Y translation 360 x 260 mm. Suitable for stands ST.1720, ST.1770, ST.1780 and ST.1785 |
|
Object Stage |
|
|
AE.1884 |
Round object stage, high model, with diffuse glass filter. Exchangeable with darkfield set up of stand ST.1760 |
|
AE.1885 |
Round object stage, high model, with diffuse glass filter. Exchangeable with object plate of stand ST.1740 |
|
Object Plate, 94 mm. diameter |
|
|
AE.1880 |
Plexiglass object plate, transparent frosted |
|
AE.1881 |
Transparent glass object plate |
|
AE.1882 |
Black/white plastic object plate |
|
Filters, 40 mm. diameter |
|
|
AE.1897 |
Diffuse glass filter |
|
AE.1898 |
Blue frosted filter |
|
Object Clamp |
|
|
AE.5446 |
Moveable object clamp for gems, etc. Exchangeable with object clamp |
|
Cabinets for Microscopes |
|
|
AE.1886 |
Cabinet with handle and lock for stands ST.1710, ST.1715 and ST.1740 |
|
AE.1887 |
Cabinet with handle and lock for stand ST.1750 |
|
Spare Bulbs and Fuses |
|
|
SL.1868 |
Spare 30 Watt bulb for transmitted illumination of stand ST.1750 |
|
SL.1869 |
Spare halogen bulb 6 Volts 10 Watt for illuminator of stand ST.1740 |
|
AE.3683 |
Glass fuses for stand ST.1740, pack of 10 |
|
Accessories for Photography and Video Cameras |
|
|
AE.5046 |
Photo eyepiece PH 3.3x with micrometer 10/100 mm/ |
|
AE.5061 |
Photo eyepiece PH 2.5x/16 |
|
AE.5062 |
Photo eyepiece PH 5.0x/9.5 |
|
AE.5127 |
Adaptor for SLR camera with T2 mount. To be used with a photo eyepiece |
|
AE.5129 |
SLR camera-adaptor with built-in optics and set up eyepiece with image mask. With T2 mount to be used with a photo eyepiece |
|
AE.5018 |
C-mount adaptor with built-in optics for CCD camera |
|
AE.5006 |
C-mount adaptor with lens 0.6x for models ZE.1657 and ZE.1659, optional with micrometer |
|
AE.5059 |
Universal C-mount adaptor with photo eyepiece 0.45x, optional with micrometer |
|
AE.5063 |
Universal C-mount adaptor with photo eyepiece 0.7x, optional with micrometer |
NOTE: On request Euromex supply T2-adaptors for AE.5127 and AE.5129 and adaptors for digital photo cameras. Please enquire for an overview of Euromex’s camera and illuminator range.
Euromex EduBlue Stereoscopic Microscopes
The Euromex EduBlue stereo microscopes for education are available with:
- Wide Field eyepieces HWF 10x/20 with eyeshades
- Binocular 45º inclined tube. One ± 5 diopter adjustment
- Interpupillary distance adjustable between 55 and 75 mm
- Dual 1x/3x, 2x/4x or Triple 1x/2x/3x, 1x/2x/4x magnification objectives mounted in revolving nosepiece
- Field of views of 20 mm, 10 mm, 6.7 mm and 5.0 mm
- Working distance 60 mm
- Rack and pinion or pillar ergonomic stand versions. Flat ergonomically designed base with 2 object clamps
- Digital head
- Adjustable incident and diascopic LED illuminations that can be used simultaneously
- Built-in rechargeable 1.800 mAh battery delivered with AC/DC adapter
|
Features |
|||||||
|
Models |
Digital head |
1x/3x obj |
2x/4x obj |
1x/2x/3x obj |
1x/2x/4x obj |
Pillar stand |
Rack & Pinion stand |
|
ED.1302-P |
|
• |
|
|
|
• |
|
|
ED.1302-S |
|
• |
|
|
|
|
• |
|
ED.1305-S |
• |
• |
|
|
|
|
• |
|
ED.1402-P |
|
|
• |
|
|
• |
|
|
ED.1402-S |
|
|
• |
|
|
|
• |
|
ED.1405-S |
• |
|
• |
|
|
|
• |
|
ED.1502-S |
|
|
|
• |
|
|
• |
|
ED.1505-S |
• |
|
|
• |
|
|
• |
|
ED.1802-S |
|
|
|
|
• |
|
• |
|
ED.1805-S |
• |
|
|
|
• |
|
• |
|
Accessories & Spare Parts |
|
|
ED.6005 |
Pair HWF 5x/22 mm eyepieces |
|
ED.6010 |
Pair HWF 10x/20 mm eyepieces |
|
ED.6015 |
Pair HWF 15x/12 mm eyepieces |
|
ED.6020 |
Pair HWF 20x/10 mm eyepieces |
|
ED.6110 |
HWF 10x/20 mm eyepiece with micrometer reticle |
|
ED.6099 |
Pair eyeshades |
|
ED.9570 |
Object clamp for stage |
|
ED.9950 |
Stage plate frosted glass, opaque, 60 mm diameter |
|
ED.9956 |
Stage plate black/white, 60 mm diameter |
|
SL.5504 |
LED replacement unit for EduBlue, incident illumination |
|
SL.5505 |
LED replacement unit for EduBlue, transmitted illumination |
|
AE.1112 |
Object micrometer 50 mm divided in 500 parts on glass slide 76 x 26 mm |
Euromex StereoBlue Stereoscopic Microscopes
Especially developed stereo microscopes suitable for various applications in the education field and highly appreciated by biologists, entomologists, geologists, mechanical and electronical engineers but also by professionals such as jewellers and dental technicans
Choice between fixed 10x/30x and 20x/40x magnifications models in revolving nosepiece and a zoom stereo microscopes model with magnification from 7x to 45x.
- Eyepieces Paired wide field eyepieces WF10x / 20 mm with eyeshades
- Head Binocular 45º inclined tubes and 360º rotatable. Diopter adjustment
Zoom models available with a bino- or trinocular head, 360º rotatable and with 45º inclined tubes
Interpupillary distance adjustable between 55 and 75 mm
- Stand Ergonomic large stand, perfect for hands support. Alloy metal cast and stove hardened off-white painted. With transparent and black/white stage plate. Coarse adjustment with tension control
- Illumination Incident- and diascopic adjustable LED illuminations. Both illuminations can be used at the same time
- Packing Complete with dust cover in styrofoam case
|
Features |
||||||
|
Models |
Head |
Objectives |
Magnification |
FOV |
Working Distance |
Stand |
|
SB.1302 |
Binocular |
1x/3x |
10x/30x |
20/6.67 mm |
100 mm |
Rack & Pinion |
|
SB.1302-P |
Binocular |
1x/3x |
10x/30x |
20/6.67 mm |
100 mm |
Pillar |
|
SB.1402 |
Binocular |
2x/4x |
20x/40x |
10/5 mm |
100 mm |
Rack & Pinion |
|
SB.1402-P |
Binocular |
2x/4x |
20x/40x |
10/5 mm |
100 mm |
Pillar |
|
SB.1902 |
Binocular Zoom |
0.7x to 4.5x |
7x to 45x |
28.5 - 4.5 mm |
100 mm |
Rack & Pinion |
|
SB.1902-P |
Binocular Zoom |
0.7x to 4.5x |
7x to 45x |
28.5 - 4.5 mm |
100 mm |
Pillar |
|
SB.1902-U |
Binocular Zoom |
0.7x to 4.5x |
7x to 45x |
28.5 - 4.5 mm |
100 mm |
Universal |
|
SB.1903 |
Trinocular Zoom |
0.7x to 4.5x |
7x to 45x |
28.5 - 4.5 mm |
100 mm |
Rack & Pinion |
|
SB.1903-P |
Trinocular Zoom |
0.7x to 4.5x |
7x to 45x |
28.5 - 4.5 mm |
100 mm |
Pillar |
|
SB.1903-U |
Trinocular Zoom |
0.7x to 4.5x |
7x to 45x |
28.5 - 4.5 mm |
100 mm |
Universal |
|
SB.3903 |
Trinocular Zoom |
0.7x to 4.5x |
7x to 45x |
28.5 - 4.5 mm |
100 mm |
Rack & Pinion |
|
SB.3903-P |
Trinocular Zoom |
0.7x to 4.5x |
7x to 45x |
28.5 - 4.5 mm |
100 mm |
Pillar |
Note: Other magnifications and working distances can be reached with wide field eyepieces WF 5x/18, WF 15x/15 or WF 20x/10 and 0.5x and 1.5x additional lenses
|
Accessories & Spare Parts |
|
|
SB.6010 |
Pair HWF 10x/20 mm eyepieces |
|
SB.6015 |
Pair HWF 15x/15 mm eyepieces |
|
SB.6020 |
Pair HWF 20x/10 mm eyepieces |
|
SB.6110 |
Pair of HWF 10x/20 mm eyepieces with micrometer reticle |
|
SB.6099 |
Pair eyeshades |
|
SB.8905 |
Auxiliary 0.5x lens, only suitable for zoom models with pillar stands (SB.1902-P & SB.1903-P) With rack- and pinion models the sample thickness is max. 2 cm. Working distance 170 mm |
|
SB.8907 |
Auxiliary 0.75x lens for zoom models Working distance 114 mm |
|
SB.8915 |
Auxiliary 1.5x lens for zoom models Working distance 48 mm |
|
SB.9570 |
Object clamp for stage |
|
SB.9833 |
C-mount adapter with 0.33x lens for 1/3" cameras.Only for trinocular models |
|
SB.9850 |
C-mount adapter with 0.5x lens for 1/2" cameras. Only for trinocular models |
|
SB.9952 |
Stage plate transparent, ø 60 mm |
|
SB.9956 |
Stage plate black/white, ø 60 mm |
|
AE.1112 |
Object micrometer 50 mm divided in 500 parts on glass slide 76 x 26 mm |
Euromex DZ Series Stereo Zoom Microscopes for Industry and Research
Optical Equipment
- The DZ Series is designed around a highly precise Infinity Parallel Zoom body equipped with a Plan Apochromatic corrected main objective providing the necessary high contrasted images and resolving power to high-tech applications
- Choose between a 1:6.3 or 1:8 zoom ratio zoom body
- Both versions can be equipped with 3 different common main objectives with 0.5x, 1.0x and 2.0x magnifications
- Together with standard Extended Wide Field EWF 10x/22 well corrected eyepieces, magnifications up to 160x are achievable
- Optionally WF 15x16 and WF 20x/12 eyepieces are available
- Two head versions are available, a fixed 20º binocular head or an ergonomic head with adjustment of the inclination from 0º to 35º
Magnifications and Fields of View with EWF 10x/22 Extended Wide Field eyepieces
|
|
Objective 0.5x Working distance 126 mm. |
Objective 1.0x Working distance 78 mm. |
Objective 2.0x Working distance 33 mm. |
|
Zoom indication |
Total Field of view magnification in mm. |
Total Field of view magnification in mm. |
Total Field of view magnification in mm. |
|
0.8x |
4x 55 |
8x 27.5 |
16x 13.7 |
|
1.0x |
5x 44 |
10x 22 |
20x 11 |
|
1.5x(1) |
7.5x 29.3 |
15x 14.6 |
30x 7.3 |
|
2.0x |
10x 22 |
20x 11 |
40x 5.5 |
|
3.0x |
15x 14.6 |
30x 7.3 |
60x 3.6 |
|
4.0x |
20x 11 |
40x 5.5 |
80x 2.7 |
|
5.0x |
25x 8.8 |
50x 4.4 |
100x 2.2 |
|
6.5x(2) |
32.5x 6.7 |
65x 3.4 |
130x 1.7 |
(1) zoom indication only with DZ.0630 models
(2) Magnifications and zoom indication only with DZ.0800 models
DZ stand with dual LED illuminations
The DZ Series can be mounted on an ergonomic stand with incident and transmitted LED illuminations. Both illuminations are adjustable by separate knobs. The focusing range is 105 mm.
Universal stand without illumination
A universal stand with holder enables industrial applications where the operator must be able to move the stereomicroscope away from their desk.
Dual iris diaphragm and phototube
A dual iris diaphragm DZ.9010 can be added to the configuration in order to achieve maximum contrast and resolving power.
A camera can be mounted with the optional phototube DZ.9005.
Cold light illuminations
LE.5210 or LE.5211 multi-functional 100 Watt or 150 Watt halogen cold light sources are commonly used illuminations. The light intensity is fully adjustable. Light guides are chosen separately.
Depending on the application, these cold light sources can be used with flexible or gooseneck type guides or fibre optic ring lights.
Industrial LED ring illuminations
An industrial ring light illumination LE.19xx can be mounted around the objective providing a very white ring illumination of the object.
The LED illuminations are available with 0 – 100% light intensity power supply or a 7 segment LED controller. The controller enables to select one of the 7 segments of the LED ring light in order to achieve oblique illumination to reveal other details.
The ring lights can be equipped with focusing Fresnel lenses or a protection glass window and a polariser / analyser to perform petrological analyses.
Ordering information:
|
Systems |
|
|
DZ.1600 |
DZ Zoom 1:6.3 stereomicroscope with Ergo binocular head 10 - 50º, EWF 10x/22 eyepieces, 1x Plan main objective and large ergonomic LED stand. Magnification from 8x up to 50x |
|
DZ.1605 |
DZ Zoom 1:6.3 stereomicroscope with standard binocular head 20º, EWF 10x/22 eyepieces, 1x Plan main objective and large ergonomic LED stand. Magnification from 8x up to 50x |
|
DZ.1800 |
DZ Zoom 1:8 stereomicroscope with Ergo binocular head 10 - 50º, EWF 10x/22 eyepieces, 1x Plan main objective and large ergonomic LED stand. Magnification from 8x up to 64x |
|
DZ.1805 |
DZ Zoom 1:8 stereomicroscope with standard binocular head 20º, EWF 10x/22 eyepieces, 1x Plan main objective and large ergonomic LED stand. Magnification from 8x up to 64x |
|
DZ.1100 |
DZ Zoom 1:10 stereo microscope with Ergo bino head 5-35º, EWF 10x/22 Eyepieces,1x Plan Apochromatic Main Objective and large ergonomic LED stand. Magnification from 8x up to 80x |
|
DZ.1105 |
DZ Zoom 1:10 stereo microscope with standard bino head 20º, EWF 10x/22 Eyepieces,1x Plan Apochromatic Main Objective and large ergonomic LED stand. Magnification from 8x up to 80x |
|
Components |
|
|
DZ.0630 |
DZ Zoom body 1:6.3, magnification 0.8x to 5.0x |
|
DZ.0800 |
DZ Zoom body 1:8, magnification 0.8x to 6.4x |
|
DZ.1000 |
DZ Zoom body 1:10, magnification 0.8x to 8.0x |
|
DZ.2020 |
Ergo binocular head 10 - 50º |
|
DZ.2025 |
Standard binocular head 20º |
|
DZ.3010 |
EWF 10x/22 eyepiece, 1 piece |
|
DZ.3012 |
EWF 10x/22 eyepiece with crosshair, 1 piece |
|
DZ.3015 |
WF 15x/16 eyepiece, 1 piece |
|
DZ.3020 |
WF 20x/12 eyepiece |
|
DZ.4005 |
0.5x Plan main objective |
|
DZ.4010 |
1.0x Plan main objective |
|
DZ.4020 |
2.0x Plan main objective |
|
DZ.5020 |
Universal stand without illumination |
|
DZ.5040 |
Large Ergo stand with dual LED illuminations |
|
DZ.9005 |
Single photo attachment with 23.2 mm tube |
|
DZ.9007 |
Dual photo attachment with two 23.2 mm tubes |
|
DZ.9009 |
Single photo attachment for fluorescence attachment with 23.2 mm tube |
|
DZ.9010 |
Dual iris diaphragm module |
|
DZ.9011 |
C-mount adapter with 0.4x lens for photo attachment |
|
DZ.9013 |
C-mount adapter with 1.0x lens for photo attachment |
|
DZ.9020 |
Translation stage |
|
DZ.9040 |
Darkfield attachment for DZ.5040 |
|
DZ.9045 |
Polarisator 360º rotatable, fits all DZ objectives |
|
DZ.9047 |
Polarisator 360º rotatable, fits on DZ.5040 stand |
|
DZ.9050 |
Fluorescence attachment with 100W mercury-vapor lamp |
|
DZ.9060 |
Filter block GFP-B (EX 460-500, DM 505, EM 510-560) |
|
DZ.9061 |
Filter block GFP-L (EX 460-500, DM 505, EM 510) |
|
DZ.9062 |
Filter block CFP-B (EX 430-450, DM 455, EM 465-495) |
|
DZ.9063 |
Filter block YFP-B (EX 490-510, DM 525, EM 530-560) |
|
DZ.9064 |
Filter block G (EX 515-550, DM 570, EM 590) |
|
DZ.9065 |
Filter block RFP-B (EX 525-555, DM 570, EM 585) |
|
Illumination systems |
|
|
Cold light source components |
|
|
LE.5210 |
100 Watt halogen cold light source. Supplied without light guides |
|
LE.5211 |
150 Watt halogen cold light source. Supplied without light guides |
|
LE.5213 |
Self-supporting Gooseneck single arm, 4 mm. diameter light glass fibre conductor, 50 cm. long |
|
LE.5214 |
Self-supporting Gooseneck dual arm, 4 mm. diameter light glass fibre conductor, 50 cm. long |
|
LE.5239 |
Glass fibre ring light for LE.5210 or LE.5211, 8 mm. diameter light glass fibre conductor, 60 cm. long |
|
LE.5240 |
Glass fibre ring light for LE.5210 or LE.5211, 8 mm. diameter light glass fibre conductor, 100 cm. long |
|
LE.5222 |
Focusing head suitable for LE.5213 and LE.5214 |
|
LE.5228 |
Focusing head with iris diaphragm suitable for LE.5213 and LE.5214 |
|
LE.5223 |
Colour RGB filter set for LE.5222 and LE.5228 |
|
LE.5224 |
Aspherical focusing lens for LE.5222 and LE.5228 |
|
LE.5229 |
Polarisation filter for LE.5222 and LE.5228 |
|
SL.5230 |
Spare halogen bulb, 12V 100 Watt for LE.5210 |
|
SL.5235 |
Spare halogen bulb, 12V 150 Watt for LE.5211 |
|
Industrial LED ring illumination components |
|
|
LE.1980 |
LED ring light 48 LEDs for 0 – 100 power supply |
|
LE.1981 |
LED ring light 48 LEDs for segment controller |
|
LE.1990 |
LED ring light 72 LEDs for 0 – 100% power supply |
|
LE.1991 |
LED ring light 72 LEDs for segment controller |
|
LE.1992 |
0 – 100% adjustable 110 – 230V power supply |
|
LE.1993 |
Digital segment controller and power supply |
|
LE.1984 |
Diffuser plate for LE.1980 and LE.1981 |
|
LE.1984-100 |
Fresnel lens WD 100 mm. for LE.1980 and LE.1981 |
|
LE.1985 |
Protection glass window for LE.1980 and LE.1981 |
|
LE.1986 |
Polariser filter for LE.1980 and LE.1981 |
|
LE.1987 |
Polariser / Analyser kit for LE.1980 and LE.1981 |
|
LE.1994 |
Diffuser plate for LE.1990 and LE.1991 |
|
LE.1994-100 |
Fresnel lens WD 100mm. for LE.1990 and LE.1991 |
|
LE.1995 |
Protection glass window for LE.1990 and LE.1991 |
|
Accessories |
|
|
AE.1112 |
Object micrometer 50 mm divided in 500 divisions |
|
AE.1900 |
Glass stage, 100 mm diameter |
|
AE.1903 |
Black/white acrylic stage, 100 mm diameter |
|
AE.5128 |
SLR camera adapter with 2x lens for 23.2 mm tubes To be used with T-2 camera adapter |
|
AE.5025 |
T-2 adapter for Nikon SLR camera |
|
AE.5040 |
T-2 adapter for Canon SLR camera |
|
AE.1385 |
Spare 100 W mercury-vapor lamp for DZ.9050 |
|
SL.5520 |
LED replacement for incident illumination of DZ.5040 |
|
SL.5222 |
LED replacement for transmitted illumination of DZ.5040 |
Euromex BE Series
The microscopes of the BE series are specifically developed for professional users who require high resolving powers and long working distances (160/115 mm).
- Oculars Paired interchangeable wide field eyepieces WF10x/20 with eye shades
- Objective Interchangeable objectives 1x and 2x. Working distances 160 and 115 mm, field of view 20 and 10 mm, respectively. The dovetailed objectives can be easily slid onto the microscope head.
- Stand The base is approximately 7 kg and is provided with a 300 mm long rod and a horizontal hinged arm, length 255 mm. Focus control by means of knobs on both sides. Maximum object height about 200 mm.
- Lighting Incident 6 volt 7,2 watt illuminator with two-lens condenser. The lamp can be fixed behind the tubes or be mounted adjustable beside the binocular head. The base contains a transformer and an on/off switch. Adapted for 220 volt operation.
- BE-50 LED 45º binocular head with one diopter adjustment. Adjustable distance between the eyepieces 51 and 75 mm. Incident 1W LED adjustable intensity illumination is built in to the stand. The BE.1802 has a 0.5x fixed magnification objective, magnification 5x, field of view 10mm, working distance 250mm. The BE.1812 has a 1x fixed magnification objective magnification 10x, field of view 20mm, working distance 230mm Other magnifications available with optional eyepieces
- Packaging Complete with dust cover in styrofoam case
|
Models |
|
|
BE.1802 |
Euromex stereomicroscope BE50-LED with 45° binocular tube and 0.5x objective working distances 250 mm 1W LED illumination |
|
BE.1812 |
Euromex stereomicroscope BE50-LED with 45° binocular tube and 1x objective working distances 230 mm 1W LED illumination |
|
BE.4301 |
Euromex stereo head BM 1x/2x with WF10x |
|
BE.4801 |
Euromex stereo head BMK 1x/2x with WF10x |
|
Accessories |
|
|
BE.6005 |
Pair HWF 5x/22mm eyepieces |
|
BE.6010 |
Pair HWF 10x/20mm eyepieces |
|
BE.6015 |
Pair HWF 15x/12mm eyepieces |
|
BE.6020 |
Pair HWF 20x/10mm eyepieces |
|
BE.6110 |
HWF 10x/20mm eyepiece with micrometer |
|
BE.6099 |
Pair of eyeshades for BE-50 LED |
|
BE.7405 |
0.5x objective for BE-50 LED |
|
BE.7410 |
1x objective for BE-50 LED |
|
AE.1839 |
Pair Super wide field SWF 10 x / 20 eyepieces with 10 mm / 100 micrometer and crosshair reticle |
|
AE.1112 |
Object micrometer 50 mm divided in 500 parts on glass slide 76 x 26 mm |
|
AE.1878 |
Dark field attachment suitable for all stands with transmitted illumination |
|
AE.1879 |
Iris diaphragm with adapter, fits on AE.1878 |
|
AE.1881 |
Transparent glass object plate 94 mm |
|
AE.1960 |
Round positioning table, tabletop can be positioned in all directions, 20 cm |
|
AE.5419 |
Plexiglas transparent frosted stage plate, 60 mm diameter |
|
AE.5424 |
Black and white Plexiglas stage plate 60 mm diameter |
|
AE.5427 |
Wide angle eyepieces WF 10x |
|
AE.5428 |
Achromatic 3,5x objective pair for BMK stereo microscopes |
|
AE.5432 |
Achromatic 3,5x objective pair for BM stereo microscopes |
|
AE.5435 |
Wide angle eyepieces WF 5x/22 |
|
AE.5436 |
Wide angle eyepiece micrometer WF10x/20 with integrated micrometer plate 10 mm divided into 100 parts |
|
AE.5439 |
Eyeshades, for all eyepieces |
|
AE.5950 |
Wooden cabinet with handle and lock for BE stereo microscopes |
|
LE.5210 |
100 Watt halogen cold light source. Supplied without light guides |
|
LE.5211 |
150 Watt halogen cold light source. Supplied without light guides |
|
LE.5213 |
Single arm light guide, self-sustaining "goose-neck" type glass fibre light guide, diameter 4 mm, length 50 cm |
|
LE.5214 |
Double arm light guide, self-sustaining "goose-neck" type glass fibre light guide diameter 4 mm, length 50 cm for LE.5210 and LE.5211 cold light sources |
|
LE.5215 |
Triple arm light guide self-sustaining "goose-neck" glass fibre light guide diameter 4 mm, length 50 cm for LE.5210 and LE.5211 cold light sources |
|
LE.5216 |
Single arm flexible glass fibre light guide, diameter 4 mm, length 100 cm |
|
LE.5217 |
Triple arm flexible glass fibre light guide, diameter 4 mm, length 100 cm |
|
LE.5218 |
Single arm flexible glass fibre light guide, diameter 8 mm, length 100 cm |
|
LE.5219 |
Double arm light guide self-sustaining "goose-neck" glass fibre light guide diameter 4 mm, length 70 cm |
|
LE.5220 |
Single arm flexible glass fibre light guide, diameter 8 mm, length 200 cm |
|
LE.5222 |
Focusing set for condenser lens LE.5224 and filters. Suitable for the self-sustaining and flexible light guides |
|
LE.5223 |
Set of red, blue and green colour filters, fitting the LE.5222 and LE.5228 for light guides |
|
LE.5224 |
Aspherical condenser lens, fitting the LE.5222 and LE.5228 |
|
LE.5228 |
Focusing set like the LE.5222 but with iris diaphragm so the light intensity and can be adjusted without influencing the colour temperature |
|
LE.5229 |
Polarization filter to reduce reflections for mounting in the LE.5222 |
|
LE.5231 |
Conversion filter KB12/80B for photos with a daylight film |
|
LE.5235 |
Double arm flexible glass fibre light guide, diameter 4 mm, length 100 cm |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5274 |
Isopropanol 99%, 200 ml cleaning liquid |
|
SL.5198 |
Halogen bulb with reflector, 12V, 20 Watt for LE.5194 |
|
SL.5201 |
Lamp 6.5 Volt 20 Watt for LE.5200 |
|
SL.5219 |
Halogen bulb with cold mirror, 12 V, 100 Watt for LE.5210 |
SL.5230 |
Longlife Halogen bulb, 12 V, 100 Watt for LE.5210 |
SL.5240 |
Longlife halogen lamp, 15 V, 150 Watt for LE.5211 |
Euromex NexiusZoom Stereo Microscopes
The NexiusZoom stereo microscopes are often used for education, scientific research, by professionals and industrial users because of their excellent optical and mechanical properties.
The NexiusZoom, -EVO and NexiusZoom ESD stereo microscopes
are supplied with a large choice of objectives and stands, with or
without illumination. Ideal for all kinds of industrial applications.
Magnifications from 3.3 up to 220 times can be achieved
with auxiliary lenses and eyepieces.
ESD safe microscopes for the electronics
industry complete this series
Highlights
- Binocular and trinocular heads with HWF 10x/22 (NexiusZoom) or HWF 10x/23mm eyepieces (NexiusZoom EVO)
- Zoom ratio 1:6.7, 6.7x to 45x or 1:8.4, 6.5x to 55x:
- Configurations up to 220x magnification:
- Ergonomically designed stands:
- Double 3W LED adjustable illumination system:
- ESD safe models available:
- 10 years warranty:
Technical Specification
- Eyepieces The standard NexiusZoom is supplied with a pair of HWF 10x/22mm eyepieces. The NexiusZoom EVO is supplied with a pair of HWF 10x/23mm eyepieces
- Head 360º rotatable bino- and trinocular stereo heads with 45º inclined tubes Both eyepieces with ±5 diopter adjustments. Interpupillary distance adjustable between 54mm and 75mm. Trinocular head is supplied with a fixed light path beamsplitter (50:50)
- Objective The standard NexiusZoom is supplied with a 1:6.7 zoom
objective with 0.67x to 4.5x magnifications, a field of
view from 33 mm to 4.9 mm. Working distance 110mm.
The NexiusZoom EVO is supplied with a 1:8.4 zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4 mm to 4.2 mm. Working distance 110mm.
Auxiliary lenses 0.3x, 0.5x, 0.75x, 1.5x and 2.0x are also available for the standard NexiusZoom and for the NexiusZoom EVO All optics are anti-fungus treated and anti-reflection coated for maximum light throughput - Polarisation The NexiusZoom and NexiusZoom EVO can be supplied with an optional 360° rotatable round stage with built-in polarisation filter and/or an optional rotatable analyser filter in mount to be screwed under the objective
- Stands
- Pillar or rack & pinion stand with 3W incident and 3W transmitted LED illuminations (-P and -S stands)
- Ergonomically designed pillar stand with two 3W gooseneck type incident LED illuminations on each side and a 3W transmitted LED illumination (-PG stand)
- Ergonomic pillar stand with rotating mirror and 3W LED transmitted and incident illuminations (-M stand)
- Ergonomic designed universal or boom stands, without illumination (-U, -B and BC stands)
- Articulated arm stand for table mounting or with heavy desktop stand, both without head holder, without illumination (-A and -AP stands)
All pillar and rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating. - Stage 180 x 155mm X-Y mechanical stage with 76 x 55mm translation stage and transparent glass plate for NexiusZoom, fixed on stage of microscope. Only available with new microscopes (due to fixing),
- Illumination 3W transmitted and incident LED illuminators with internal
power supply 100-240V. Both illuminators can be used
simultaneously and the light intensities can be adjusted
separately. The universal single or double arm stands
and the articulated stands can be equipped with the ring
illuminators LE.1974 and LE.1973 with respectively 72 or 144
power LEDs controlled in segments, ideal for creating or
lifting shades
- ESD Safe Microscopes For inspection and assembly applications. Electrostatic
discharge (ESD) is the unwanted sudden flow of electricity
between two electrically charged objects. ESD can cause a
range of harmful effects as well as permanent damage to
solid state electronics components.
Euromex has introduced electrostatic protected microscopes for the NZ1902-P and NZ1903-P models. The body and stand of the microscope are coated with a special static dissipative paint eliminating harmful electrostatic discharges making the microscopes suitable for all static-sensitive environments
Magnifications NexiusZoom Standard and ESD
Working distance and field of view with standard HWF 10x / 22mm High Wide Field eyepieces
Magnifications NexiusZoom EVO
Working distance and field of view with standard HWF 10x / 23mm High Wide Field eyepieces
|
Accessories & Spare Parts |
|
|
Eyepieces |
|
|
NZ.5312 |
NexiusZoom EVO binocular head with eyepieces |
|
NZ.5313 |
NexiusZoom EVO trinocular head with eyepieces |
|
NZ.6010 |
WF 10x/22 mm eyepiece |
|
NZ.6210 |
Pair of HWF 10x / 23mm eyepieces (only suitable for NexiusZoom EVO) |
|
NZ.6015 |
HWF 15x/16 mm eyepiece |
|
NZ.6020 |
HWF 20x/12 mm eyepiece |
|
NZ.6110 |
HWF 10x/22 mm eyepiece with 1/100 mm micrometer reticule |
|
NZ.6099 |
Pair of eyeshades |
|
Auxilliary Lenses |
See Auxilliary Lens Compatibility Table |
|
NZ.8903 |
Auxiliary 0,3x lens for NexiusZoom. working distance 278mm. |
|
NZ.8904 |
Auxiliary 0,4x lens for NexiusZoom. working distance 220mm. |
|
NZ.8905 |
Auxiliary lens 0.5x. working distance 165mm |
|
NZ.8907 |
Auxiliary lens 0.75x, working distance 120mm |
|
NZ.8915 |
Auxiliary lens 1.5x, working distance 53mm |
|
NZ.8920 |
Auxiliary lens 2.0x, working distance 30mm |
|
NZ.8950 |
Protection glass for NexiusZoom head. Not suitable with auxiliary lenses |
|
Stands |
|
|
NZ.9000 |
Ergonomic pillar stand without illumination |
|
NZ.9005 |
Ergonomic pillar stand adjustable transmitted 3W LED illumination |
|
NZ.9010 |
Ergonomic rack & pinion stand with 3W transmitted and incident LED illuminators |
|
NZ.9015 |
Ergonomic pillar stand with 3W transmitted and incident LED illuminators |
|
NZ.9018 |
Ergonomically designed pillar stand with two 3W goose-neck type incident LED illuminations on each side and a 3W transmitted LED illumination |
|
NZ.9020 |
Universal (single arm) stand without NexiusZoom head holder |
|
NZ.9025 |
Black universal stand with table clamp without NrxiusZoom head holder |
|
NZ.9027 |
Black universal stand with heavy baseplate without NrxiusZoom head holder |
|
NZ.9030 |
Boom (double arm) stand without NexiusZoom head holder |
|
NZ.9032 |
Boom (double arm) stand with table clamp (without NexiusZoom head holder NZ.9090) |
|
NZ.9042 |
Ergonomic pillar stand with rotating mirror and transmitted and incident 3W LED illumination |
|
NZ.9081 |
Head 76 mm holder for NZ and black universal stand NZ.9025/NZ.9027 |
|
NZ.9090 |
NexiusZoom head holder (for NZ.9020, NZ. 9030 and NZ. 9032) |
|
NZ.9095 |
NexiusZoom head holder with fine coarse (for NZ.9020, NZ. 9030 and NZ. 9032) |
|
NZ.9095-ADD |
NexiusZoom head holder with fine coarse ADD-ON for NZ.9020, NZ. 9030 and NZ.9032 (Only available with new microscopes) |
|
NZ.9025 |
Articulated arm stand with table clamp (without NexiusZoom head holder) |
|
NZ.9027 |
Articulated arm stand with heavy stand (without NexiusZoom head holder |
|
NZ.9081 |
NexiusZoom head holder (for articulated arm stand NZ.9025 and NZ.9027) |
|
Illumination |
See Accessories for more illumination options |
|
LE.1974 |
Ring illuminator with 72 LEDs with adjustable light intensity. External power supply 110-240 Vac / 12 Vdc (50/60 Hz). With segment controller. Brightness of 20,000 Lux at 100 mm distance and color temperature of 6500K. Mounting for stereo head with diameter from 25 to 61 mm |
|
LE.1973 |
Ring illuminator with 144 LEDs with adjustable light intensity. External power supply 100-240 Vac / 12 Vdc (50/60 Hz). With segment controller. Brightness of 23,000 Lux at 100 mm distance and color temperature of 6500 K. Mounting for stereo head with diameter from 25 to 61 mm |
|
LE.5208 |
Multifunctional dual LED adjustable light source with Gooseneck flexible. Equipped with two flexible gooseneck arms with LED illuminator |
|
LE.5210 |
Euromex cold light illuminator EK-1, 100 W, 110V and 230V models available |
|
LE.5211 |
Euromex cold light illuminator, 150 W halogen, 110 V and 230 V models available |
|
LE.5211-LED |
Euromex cold light illuminator LED, 30W high power LED |
|
LE.5212 |
Euromex illumination station with two independently controlled goosenecks, a ring light and a transmitted stage illuminator |
|
Stages |
|
|
NZ.9520 |
Polarization kit for NexiusZoom: 360° rotatable round stage with built-in polarization filter (NZ.9524) + analyzer in mount to be screwed under the head (NZ.9525). Not suitable with auxiliary lenses |
|
NZ.9524 |
360° rotatable round stage with built-in polarization filter for NexiusZoom |
|
NZ.9525 |
360° rotatable analyzer in mount to be screwed under the head of NexiusZoom. Not suitable for use in combination with auxiliary lenses |
|
AE.5168-NZ |
Heating stage with PID controller up to 50%deg;C. Only with the purchase of a new microscope |
|
NZ.9950 |
Standard opaque stage plate |
|
NZ.9956 |
Black/white stage plate |
|
Accessories |
|
|
NZ.9570 |
Pair of object clamps for stage |
|
NZ.9572 |
Adjustable GEM object clamp for -P, -PL and -S stands |
|
50.876 |
Darkfield attachment (for -S and -P stands) |
|
NZ.9833 |
C-mount adapter with 0.33x lens for 1/3" cameras. Suitable for trinocular models |
|
NZ.9850 |
C-mount adapter with 0.5x lens for 1/2" cameras.Suitable for trinocular models |
|
AE.5130 |
Universal SLR camera adapter with 2x projection lens for 23.2mm tubes. Needs T2 adapter |
|
AE.5025 |
T2 adapter for Nikon D digital SLR cameras |
|
AE.5040 |
T2 adapter for Canon EOS digital SLR cameras |
|
AE.1112 |
Object micrometer 50 mm (divided in 500 parts on glass slide 76 x 26mm) |
Euromex NexiusZoom EVO Stereo Microscope for Gemology
The specialised backwards tilting stand of the NexiusZoom EVO stereo microscopes for gemology applications offers 30W halogen transmitted illumination towards the specimen at oblique angles. This enables the examination of your gems in perfect darkfield conditions. The stand is also available with 1W LED or a 7W fluorescent incident illumination for brightfield contrast.
Highlights
- Binocular and trinocular heads
- Standard HWF 10x eyepieces with 22mm or 23mm field of view:
- Zoom objectives with 0.7 to 4.5x or 0.65 to 5.5x magnification:
- Ergonomically designed backwards tilting stand:
- 30 Watt halogen transmitted illumination:
- 1W LED or 7W fluorescent incident illumination:
- Configurations up to 220x magnification:
Technical Specification
- Eyepieces Pair of HWF 10x eyepieces with 23 mm field of view
- HeadBinocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments. Interpupillary distance adjustable between 54mm and 75mm
- Objective The NexiusZoom EVO is supplied with a 1:8.4 zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4mm to 4.2mm. WD approx. 110mm Auxiliary lenses 0.75x, 1.5x and 2.0x are available All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
- Stands Ergonomically designed stand with backwards 0 to 45° tilting arm with 76mm head holder for darkfield and brightfield. Built-in 100-240V power supply
- Stage Flat darkfield stage with clamp object holder, iris diaphragm and incident illumination
- Illumination 30 Watt halogen transmitted illumination, 1W LED or 7W fluorescent incident illumination. With internal power supply 100-240V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately
Magnifications NexiusZoom EVO
Working distance and field of view with standard HWF 10x / 23mm High Wide Field eyepieces
|
Accessories & Spare Parts |
|
|
Heads & Eyepieces |
|
|
NZ.5302 |
NexiusZoom binocular head with eyepieces |
|
NZ.5303 |
NexiusZoom trinocular head with eyepieces |
|
NZ.5312 |
NexiusZoom EVO binocular head with eyepieces |
|
NZ.5313 |
NexiusZoom EVO trinocular head with eyepieces |
|
NZ.6010 |
WF 10x/22 mm eyepiece |
|
NZ.6210 |
Pair of HWF 10x / 23mm eyepieces (only suitable for NexiusZoom EVO) |
|
NZ.6015 |
HWF 15x/16 mm eyepiece |
|
NZ.6020 |
HWF 20x/12 mm eyepiece |
|
NZ.6110 |
HWF 10x/22 mm eyepiece with 1/100 mm micrometer reticule |
|
NZ.6099 |
Pair of eyeshades |
|
NZ.8907 |
Auxiliary lens 0.75x, working distance 120mm |
|
NZ.8915 |
Auxiliary lens 1.5x, working distance 53mm |
|
NZ.8920 |
Auxiliary lens 2.0x, working distance 30mm Not suitable for -S model |
|
NZ.8950 |
Protection glass for NexiusZoom head. Not suitable with auxiliary lenses |
|
NZ.9525 |
360° rotatable analyzer in mount to be screwed under the head of NexiusZoom. Not suitable for use in combination with auxiliary lenses |
|
NZ.9572-G |
Adjustable GEM object clamp for NexiusZoom with tilting stand for gemology |
|
NZ.9833 |
C-mount adapter with 0.33x lens for 1/3" cameras. Suitable for trinocular models |
|
NZ.9850 |
C-mount adapter with 0.5x lens for 1/2" cameras.Suitable for trinocular models |
|
AE.5130 |
Universal SLR camera adapter with 2x projection lens for 23.2mm tubes. Needs T2 adapter |
|
AE.5025 |
T2 adapter for Nikon D digital SLR cameras |
|
AE.5040 |
T2 adapter for Canon EOS digital SLR cameras |
|
AE.1112 |
Object micrometer 50 mm (divided in 500 parts on glass slide 76 x 26mm) |
Novex AP and P Series Stereo Microscopes
The small stereomicroscopes of the AP and P series are suitable for secondary schools and hobby use. Models with magnifications from 10x to 80 times are available. These stereomicroscopes are very suitable for the observation with an increased depth of field of insects, plants, rocks, stamps, coins, etc
The AP-1 and AP-2 stereo microscopes have a vertical binocular head with dioptre adjustment and adjustable eye separation of 55 to 75 mm. Focusing movement is adjusted by two knobs via a transmission clutch. The stand is made of light metal and is supplied with black-white stage plate.
The AP-2 model is equipped with a built-in 12 Volt 10 Watt incident illuminator. With the optional WF 5x, WF15x and WF 20x eyepieces and interchangeable objectives 1x, 3x, 4x and 6x magnifications of 5x to 120x can be reached.
The AP-1, AP-2 and AP-4 models are supplied as standard with WF10x/20 eyepieces and a 2x objective.
The AP-4 and AP-5 models have a 45° mounted binocular head with dovetailed objectives and are supplied as standard with a 2x objective and secured WF 10x/20 eyepieces. With the optional interchangeable objectives 1x, 3x, 4x and 6x and
optional eyepieces WF 5x, WF 15x and WF 20x, magnifications of 5 to 120 times can be reached.
The AP-4 and AP-5 models have a 12 Volt, 10 Watt incident illuminator.
The AP-5model also has transmitted illumination.
The AP-7 model is equipped with a revolving 1x/3x objective.
The AP-8 model has a revolving 2x/4x objective. Both models are supplied as standard with secured WF 10x/20 eyepieces.
The AP-7 and AP-8 models are supplied with 12 Volt, 10 Watt incident and transmitted illumination (50.925 and 50.930).
The AP-7 LED and AP-8 LED models have LED illumination (50.926 and 50.931).
The P-10 and P-20 models are equipped with a 360° revolving binocular tube and have a revolving objective turret with 1x/3x or 2x/4x objectives. Secured WF10x/20 eyepieces are supplied as standard.
The P-10 and P-20 microscopes have powerful 12 Volts, 10 Watt halogen or LED light sources for both incident and transmitted illumination. Both illuminators can be operated independently or simultaneously.
- The incident LED illumination can be used continuously for 35 hours
- The LED models come with three rechargeable 2000 Ma NiMh AA-batteries with 200 mA battery charger
- With the optional eyepieces WF 5x, WF 15x and WF 20x you can reach magnifications of 5 to 60 times with the AP-7 and P-10.
- With the AP-8 and P-20 magnifications of 10 to 80 times can be reached.
- All AP and P models are supplied with a black-white stage plate.
- The AP-5, AP-7, AP-8, P-10 and P-20 models also have a transparent stage plate for transmitted illumination
Ordering information:
|
Model |
Binocular |
Eyepiece |
Objective |
Magnification |
Illumination |
Field of view |
|
AP-1 50.890 |
Vertical, fixed |
WF 10x (1) |
2x dovetailed |
20x |
None (2) |
10 mm. |
|
AP-2 50.900 |
Vertical, fixed |
WF 10x (1) |
2x dovetailed |
20x |
12V 10W incident (2) |
10 mm. |
|
AP-4 50.915 |
45º inclined |
WF 10x (1) |
2x dovetailed |
20x |
12V 10W incident (2) |
10 mm. |
|
AP-5 50.920 |
45º inclined |
WF 10x (1) |
2x dovetailed |
20x |
12V 10W incident and transmitted (2, 3) |
10 mm. |
|
Model |
Binocular |
Eyepiece |
Objective |
Magnification |
Illumination (2, 3) |
Field of view |
|
AP-7 50.925 |
45º inclined |
WF 10x/20 |
1x / 3x rotating |
10x / 30x |
12V 10W incident and transmitted |
20 / 6.7 mm. |
|
AP-7 LED 50.926 |
45º inclined |
WF 10x/20 |
1x / 3x rotating |
10x / 30x |
LED incident and transmitted |
20 / 6.7 mm. |
|
AP-8 50.930 |
45º inclined |
WF 10x/20 |
2x / 4x rotating |
20x / 40x |
12V 10W incident and transmitted |
10 / 5 mm. |
|
AP-8 LED 50.931 |
45º inclined |
WF 10x/20 |
2x / 4x rotating |
20x / 40x |
LED incident and transmitted |
10 / 5 mm. |
|
P-10 60.100 |
45º inclined 360º |
WF 10x/20 |
1x / 3x rotating |
10x / 30x |
12V 10W incident and transmitted |
20 / 6.7 mm. |
|
P-10 LED 60.110 |
45º inclined 360º |
WF 10x/20 |
1x / 3x rotating |
10x / 30x |
LED incident and transmitted |
20 / 6.7 mm. |
|
P-20 60.200 |
45º inclined 360º |
WF 10x/20 |
2x / 4x rotating |
20x / 40x |
12V 10W incident and transmitted |
10 / 5 mm. |
|
P-20 LED 60.210 |
45º inclined 360º |
WF 10x/20 |
2x / 4x rotating |
20x / 40x |
LED incident and transmitted |
10 / 5 mm. |
(1) The eyepieces are firmly secured with a screw
(2) With built-in transformer and cable
(3) Illuminators can not be operated simultaneously except models P-10 and P-20
Accessories:
|
Wide field eyepieces |
|
|
50.805 |
Paired eyepieces WF 5x / 22 |
|
50.810 |
Paired eyepieces WF 10x / 20 |
|
50.811 |
Eyepiece WF 10x with micrometer graticule 10 mm. / 100 parts |
|
50.815 |
Paired eyepieces WF 15x / 16 |
|
50.820 |
Paired eyepieces WF 20x / 10 |
|
Interchangeable achromatic objectives (for AP-1, AP-2, AP-4 and AP-5) |
|
|
50.831 |
Objective 1x, working distance 50 mm. |
|
50.832 |
Objective 2x, working distance 75 mm. |
|
50.833 |
Objective 3x, working distance 60 mm. |
|
50.834 |
Objective 4x, working distance 55 mm. |
|
50.836 |
Objective 6x, working distance 35 mm. |
|
Miscellaneous |
|
|
50.840 |
Pair of eyecups, fits all eyepieces |
|
50.871 |
Stage plate black / white, 94 mm. diameter |
|
50.873 |
Stage plate opaque, 94 mm. diameter |
|
50.874 |
Black/white stage plate 60 mm diameter |
|
50.875 |
Adjustable object clamp for gems, etc. |
|
50.876 |
Dark field attachment for transmitted illumination. Suitable for observation of colourless or transparent objects e.g. gems |
|
50.882 |
Spare halogen bulb 12V, 10W for P Series (for transmitted illumination) |
|
50.884 |
Spare bulb 12V 10W for AP Series |
|
50.960 |
Wooden cabinet with handle and lock for AP and P Series |
|
50.961 |
Plastic cabinet with lock for AP and P Series |
|
50.975 |
External 100-240V mains adapter |
NOTE: Camera adaptors and T2 rings for SLR available on request
Novex AR-Zoom and AR-Stereo Stereo Microscopes
The microscopes of the Novex AR-series are equipped with an ergonomic base which provides a very good stability. Supplied with both transparent and black/white stage plates and two object clamps. The stand has a 260 mm chrome plated vertical post with a
diameter of 20 mm. Equipped with both incident and transmitted 12 Volt 10 Watt adjustable halogen illuminations with daylight filter (64.200 / 64.210) or both
incident and transmitted adjustable LED illuminations (64.400 / 64.410).
The AR-Stereo and AR-Zoom are equipped with two secured WF 10x/22 eyepieces and a 45° binocular viewing head which can rotate 360°.
The AR-Zoom also comes as a trinocular version onto which a camera can be mounted by means of optional adaptors. Optional supplementary objectives, 0.5x, 1.5x and 2x, can be supplied to achieve other magnifications and working distances. Eyepieces WF 5x, WF 15x, WF 20x and WF 10x with micrometer are available.
The AR-Stereo microscope has identical specification to the AR-zoom but is equipped
with fixed 2x / 4x objectives in a revolving objective turret.
Ordering information:
|
Model |
Tube |
Magnification (1) |
Working distance |
Illumination (2) |
Field of view |
|
|
AR-Zoom |
||||||
|
64.200 |
Binocular, zoom ratio 1:4 |
10x – 40x |
85 mm. |
Halogen 12V 10W |
22 - 5.5 mm. |
|
|
64.210 |
Trinocular, zoom ratio 1:4 |
10x – 40x |
85 mm. |
Halogen 12V 10W |
22 - 5.5 mm. |
|
|
64.400 |
Binocular, zoom ratio 1:4 |
10x – 40x |
85 mm. |
LED illuminations |
22 – 5.5 mm. |
|
|
64.410 |
Trinocular, zoom ratio 1:4 |
10x – 40x |
85 mm. |
LED illuminations |
22 – 5.5 mm. |
|
|
AR-Stereo |
||||||
|
64.220 |
Binocular, rotating objective |
20x / 40x |
80 mm. |
Halogen 12V 10W |
11 / 5.5 mm. |
|
(1) With standard WF 10x/22 eyepieces
(2) With built-in transformer and cable
Accessories:
|
Wide field eyepieces |
|
|
50.805 |
Paired eyepieces WF 5x / 22 |
|
50.810 |
Paired eyepieces WF 10x / 20 |
|
50.811 |
Eyepiece WF 10x with micrometer graticule 10 mm. / 100 parts |
|
50.815 |
Paired eyepieces WF 15x / 16 |
|
50.820 |
Paired eyepieces WF 20x / 10 |
|
Supplementary lenses for AR-Zoom and AR-Stereo |
|
|
64.305 |
Supplementary lens 0.5x, working distance 172 mm. |
|
64.315 |
Supplementary lens 1.5x, working distance 42 mm. |
|
64.320 |
Supplementary lens 2x, working distance 28 mm. |
|
Miscellaneous |
|
|
50.840 |
Pair of eyecups, fits all eyepieces |
|
50.871 |
Stage plate black / white, 94 mm. diameter |
|
50.873 |
Stage plate opaque, 94 mm. diameter |
|
50.875 |
Adjustable object clamp for gems, etc. |
|
50.876 |
Dark field attachment for transmitted illumination. Suitable for observation of colourless or transparent objects e.g. gems |
|
50.882 |
Spare halogen bulb 12V 10W for AR Series (for transmitted illumination) |
|
64.884 |
Spare halogen bulb for AR Series, 12V 10W with reflector (for incident illumination) |
NOTE: Camera adaptors and T2 rings for SLR available on request
Novex RZ Series Stereo Zoom Microscopes
The Novex RZ Series stereo zoom microscopes for industrial and medical research applications are of exceptional quality.
Binocular and Trinocular Zoom Heads
The Novex RZ Series stereo zoom microscopes are available in both binocular and trinocular versions, 45º inclined viewing head 360º rotatable. The eyepieces have an interpupillary distance adjustment from 52 to 80 mm. and a dioptic adjustment.
Optics
The Novex RZ is equipped with a 1:7 ratio zoom objective. In combination with the standard wide field eyepieces, WF 10/20, magnifications of 6.5 to 45 times can be reached at a working distance of 95 mm. Different magnifications and working distances can be achieved with supplementary lenses and optional WF 15x/16, WF 20x/13 and WF 25x/12 eyepieces.
|
Eyepiece |
WF 10x (standard) |
WF 15x (optional) |
WF 20x (optional) |
|
Supplementary |
F.O.V. |
F.O.V. |
F.O.V. |
|
65.753 0.4x 225 mm. |
2.6 – 18x 82 - 12 |
3.9 – 27x 65 – 9.8 |
5.2 – 36x 52 – 8.0 |
|
65.754 0.5x 160 mm. |
3.2 – 22x 64 – 9.0 |
4.9 – 33.7 52 – 7.3 |
6.52 – 45x 41 – 6.0 |
|
65.755 0.75x 110 mm. |
4.8 – 33x 40 – 5.7 |
7.3 – 50.5x 32 – 4.7 |
9.8 – 67x 26 – 3.7 |
|
|
|
|
|
|
Standard 95 mm. |
6.5 – 45x 31 – 4.4 |
9.7 – 67.5x 25 – 3.6 |
13.0 – 90x 20 – 2.9 |
|
|
|
|
|
|
65.757 1.5x 40 mm. |
9.7 – 67x 20 – 2.9 |
14.6 – 101x 16 – 2.3 |
19.5 – 135x 13 – 1.9 |
|
65.758 2.0x 25 mm. |
13 – 90x 15 – 2.2 |
19.5 – 135x 12 – 1.7 |
26.0 – 180x 10 – 1.4 |
Remark: The printed values for the fields of view are typical
Parfocal
These microscopes are 100% parfocal, which means that the image remains in focus throughout the entire zoom range. The benefit of good quality parfocality is that the microscope does not require to be refocused when the magnification is changed.
The trinocular head is equipped with a vertical phototube with C-mount adaptor to connect a digital camera. When the phototube is in use the image remains visible in one eyepiece. Adaptors for SLR cameras can be supplied on request.
Stands
PL Stand
This stand has an aluminium base with a chrome-plated column of 260 mm. x 30 mm. diameter. This particular stand does not have a built-in illuminator. PL stands are supplied with one black-white plastic stage plate and two object clamps.
SF stand
This stand is identical to the PL stand but has a built-in adjustable incident halogen illuminator, including daylight filter. The transmitted illumination is a fluorescence daylight type, 5 Watt, 6400ºK. By using one or two transparent stage plates you can vary the intensity of the transmitted illumination. SF-stands are supplied with two transparent stage plates, one black-white stage plate and two object clamps.
A large heavy stand for observation of larger objects up to 300 mm. in height. A 500 mm. x 38 mm. diameter vertical column is mounted on the heavy base, which is 255 x 255 mm. The horizontal arm can be positioned in all directions. The maximum distance from the vertical column to the optical axis is 660 mm. Weight is 18 kg. With the viewing head holder 65.720, the stereo zoom heads 65.700 or 65.710 can be mounted on to the horizontal arm.
LT Universal Stand
Identical to the LV Universal stand but equipped with a bench clamp to allow the microscope to be fixed to a bench with a maximum thickness of 65 mm.
Stereo Head Holder
With this holder a stereo zoom head (65.700 or 65.710) can be mounted on to universal stands (65.725 or 65.727).
Illumination
Good illumination of an object is crucial for stereo microscopy. When the correct illumination is chosen the details of the observed object will be more distinct. Comfort and desired light intensity are the factors that determine the choice.
EuroLed 56 and EuroLed 40 – 4300K
The ring light illuminators with respectively 56 or 40 white LED’s can both be adjusted between 10% and 100%. The colour temperature is a maximum 4300ºK. The LE.1970 and LE.1971 produce a clear and intense white light suitable for lengthy quality control applications.
Fluorescent Ring Illuminator
10 Watt fluorescent ring illuminator for incident illumination with ‘long-life’ lamp (> 5000 hours). For 230 Volts operation.
Fluorescent Ring Illuminator – 5200K
Fluorescent 40 kHz ring light for incident illumination. The colour temperature is a maximum 5200ºK. For 230 Volts operation. The 40 kHz frequency provides the user with a comfortable light which is excellent for lengthy microscopy sessions.
Cold-light Illuminators
Cold-light illuminators with a maximum colour temperature of 3100ºK are commonly used types of illumination. They are crucial when a high light intensity is required. For 230Volts operation only.
The 20 Watt cold-light source with light guide LE.5209 is compact and economical. The light intensity is factory pre-set and fixed. Supplied with a ‘flex & stay’ light guide, 40 cm. long, 6 mm. diameter.
The multi-functional 100 Watt cold-light source LE.5210 is a commonly used cold-light illuminator with a 100 Watt halogen lamp. The light intensity is fully adjustable. Supplied without light guide.
The multi-functional 150 Watt cold-light source LE.5211 is a new Euromex design cold-light illuminator with a 150 Watt halogen lamp. The light intensity is fully adjustable. Supplied without light guide.
Depending on the application, the cold-light sources LE.5210 and LE.5211 can be used with ‘flex & stay’ guides, fully flexible guides or fibre optic ring lights.
Positioning Tables
Positioning tables allow easy and precise positioning of objects when using high magnifications - e.g. in the electronic and mechanical industry – the X-Y table (AE.1950) with ball bearings is available. The size of this table is 395 x 395 x 30 mm.
The round positioning table AE.1960, 200 mm. diameter, is ideal to move objects freely around a central point smoothly and precisely.
Ordering information:
|
Model |
Description |
Remarks |
|
65.500 |
Binocular RZB microscope |
With PL stand without illumination |
|
65.510 |
Trinocular RZT microscope |
With PL stand without illumination |
|
65.550 |
Binocular RZB microscope |
With SF stand for incident and transmitted illumination |
|
65.560 |
Trinocular RZT microscope |
With SF stand for incident and transmitted illumination |
|
65.700 |
Binocular RZB head |
Head without stand |
|
65.710 |
Trinocular RZT head |
Head without stand |
|
65.720 |
Stereo head holder |
Height adjustable, for mounting of RZ binocular or trinocular stereo heads |
|
65.725 |
|
Weight 18 kg. to be used with stereo head holder 65.720 |
|
65.727 |
LT universal stand |
With bench clamp, to be used with stereo head holder 65.720 |
|
AE.1950 |
Positioning X-Y stage |
395 x 395 mm. ; translation X-7 360 x 260 mm. with ball bearings |
|
AE.1960 |
Round positioning table |
Tabletop can be positioned in all directions, 200 mm. diameter |
|
LE.1970 |
50 LED ring illuminator |
Working distance 55 to 120 mm. Adjustable light intensity. without supplementary lens, adaptor 65.868 is required with supplementary lens, adaptor 65.869 is required |
|
LE.1971 |
40 LED ring illuminator |
Working distance 25 to 75 mm. Adjustable light intensity. without supplementary lens, adaptor 65.868 is required with supplementary lens, adaptor 65.869 is required |
|
65.865 |
Fluorescent ring illuminator |
Fixed light intensity. without supplementary lens, no adaptor is required with supplementary lens, adaptor 65.869 is required |
|
LE.1863 |
Fluorescent 5200K ring illuminator |
Working distance 30 to 160 mm. Fixed light intensity. without supplementary lens, adaptor 65.868 is required with supplementary lens, adaptor 65.8679 is required |
|
LE.5209 |
20 W cold-light source |
With ‘flex & stay’ single arm fibre optic light guide |
|
LE.5210 |
100 W cold-light source |
Without light guides. Adjustable light intensity |
|
LE.5211 |
150 W cold-light source |
Without light guides. Adjustable light intensity |
|
LE.5213 |
Single arm glass fibre |
Gooseneck ‘flex & stay’ light guide, 4 mm. dia.x 500 mm. |
|
LE.5214 |
Two arm glass fibre |
Gooseneck ‘flex & stay’ light guide, 4 mm. dia.x 500 mm. |
|
LE.5215 |
Three arm glass fibre |
Gooseneck ‘flex & stay’ light guide, 4 mm. dia.x 500 mm. |
|
LE.5239 |
Ring light illumination |
With fibre optic light guide, 8 mm. dia. x 600 mm. (*) |
|
LE.5240 |
Ring light illumination |
With fibre optic light guide, 8 mm. dia. x 1000 mm. (*) |
(*) when a supplementary lens is used with a RZ stereo together with the ring light illuminator LE.5239 or LE.5240, a 65.869 adaptor is required. If no supplementary lens is used adaptor 65.868 is required.
Accessories:
|
Wide Field Eyepieces |
|
|
65.736 |
Pair of wide field eyepieces WF 10x/20 (standard) |
|
65.737 |
Pair of wide field eyepieces WF 15x/16 |
|
65.738 |
Pair of wide field eyepieces WF 20x/13 |
|
65.740 |
Pair of wide field eyepieces WF 25x/12 |
|
65.749 |
Wide field eyepieces WF 10x/20 with micrometer graticule 10 mm. / 100 parts. Adjustable lens |
|
65.750 |
Pair of eyecups for all eyepieces |
|
Supplementary Lenses and Adaptors for Illuminators |
|
|
65.753 |
Objective 0.4x, working distance 225 mm. |
|
65.754 |
Objective 0.5x, working distance 160 mm. |
|
65.755 |
Objective 0.75x, working distance 110 mm. |
|
65.757 |
Objective 1.5x, working distance 40 mm. |
|
65.758 |
Objective 2.0x, working distance 25 mm. |
|
65.867 |
Adaptor for LE.1863, required when using supplementary lenses |
|
65.868 |
Adaptor for LE.5239, LE.5240, LE.1970, LE.1971 and LE.1863, required when no supplementary lenses are used |
|
65.869 |
Adaptor for LE.5239, LE.5240, LE.1970, LE.1971 and LE.1863, required when using supplementary lenses |
|
Adaptors for camera |
|
|
65.818 |
23.2 mm. phototube for RZT trinocular head |
|
65.819 |
Adaptor for SLR camera with 2.5x photo eyepiece and T2 thread |
|
65.820 |
Adaptor for SLR camera with adjustable eyepiece. With 2.5x photo eyepiece and T2 thread |
|
Accessories for Cold-Light Sources |
|
|
LE.5222 |
Focusing head for mounting LE.5224 lens and filters. Suitable for ‘flex & stay’ and flexible light guides |
|
LE.5228 |
Focusing head identical to LE.5222 but with iris diaphragm for light intensity adjustment without altering the colour temperature |
|
LE.5223 |
Colour filter set (red/blue/green) for LE.5222 and LE.5228 |
|
LE.5224 |
Aspherical condenser lens for LE.5222 and LE.5228 |
|
LE.5231 |
Conversion filter KB12/80B for daylight film |
|
LE.5229 |
Polarisation filter for reducing reflections |
|
Miscellaneous |
|
|
65.871 |
Stage plate black/white, 94 mm. dia., for PL and SF stands |
|
65.872 |
Transparent glass stage plate, 87 mm. dia., for SF stand |
|
65.873 |
Transparent glass stage plate, 94 mm. dia., for SF stand |
|
65.895 |
Spare halogen bulb 6 Volt 10 Watt with reflector for incident illuminator for SF stand (65.550 and 65.560) |
|
65.896 |
Spare fluorescent bulb 5 Watt, 6400ºK for transmitted illumination for SF stand (65.550 and 65.560) |
|
65.960 |
Cabinet with handle and lock suitable for models RZ with PL stands (65.500 and 65.510) |
|
65.961 |
Cabinet with handle and lock suitable for models RZ with SF stands (65.550 and 65.560) |
|
|
|
|
SL.5208 |
Spare halogen bulb with reflector, 12 Volt, 20 Watt for LE.5209 |
|
SL.5219 |
Spare halogen bulb with reflector, 12 Volt, 100 Watt for LE.5210 |
|
SL.5230 |
Spare halogen “long-life” bulb with reflector, 12 Volt, 100 Watt for LE.5210 |
|
SL.5235 |
Spare halogen bulb with reflector, 15 Volt, 150 Watt for LE.5211 |
|
SL.1864 |
Spare bulb for LE.1863 |
|
AE.5227 |
Glass fuses 1 Amp, pack of 10 |
Microscopes for Life and Material Sciences

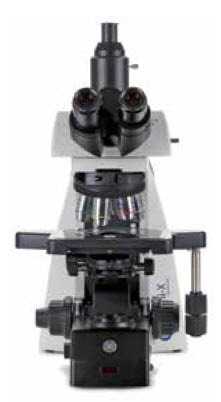

Delphi-X Observer™ for Life Science
State-of-the-art microscopes
for advanced Life Science
applications. The outstanding
optical performance of
the Delphi-X Observer™ with
25 mm fields of view and high
numerical aperture of the Plan 60 mm
parafocal EIS objectives enables
perfect observations and color color
rendering at high resolving power.
This is the perfect microscope for
anatomo-pathologists
Highlights
- Microscopes for advanced Life Sciences
- Trinocular model:
- Sextuple reversed nosepiece:
- Enhanced infinity corrected EIS optical system:
- Ergonomic tilting head:
- 60mm parafocal Plan EIS super contrast objectives:
- Plan Phase EIS super contrast objectives:
- 60mm Plan Semi Apochromatic EIS super contrast objectives:
- 190 x 152 mm stage with 78 x 32 mm integrated right-handed mechanical stage with scratch-free Gorilla glass:
- 3W NeoLED™ or 100W halogen light source, integraded Köhler:
- Face-to-face dual head system:
- DIC ready:
- iCare sensor for energy saving:
- CSS - Cable Storage System :
- 10 years warranty:
Technical Specification
Eyepieces
- DIN Super Wide field SWF 10x/25 mm, ø 30 mm eyepieces
- DIN Super Wide Field SWF 10x/22 mm, ø 30 mm eyepieces also available on special request
Heads
- Siedentopf trinocular with 30° inclined tubes
- Interpupillary distance adjustable between 47 and 78mm
- 3-Position beamsplitter (0:100/ 100:0/ 80:20)
- Diopter adjustment on both eyepieces
- Trinocular head is supplied with super wide field SWF 10x/25mm eyepieces.
The Delphi-X Observer™ can also be extended with a unique multihead system for in total 2, 3, 5 or 10 heads allowing simultaneous observation of specimens. The central attachment is equipped a trinocular head and with a joystick to move a green or red laser pointer across the entire field of views of all heads. Configurations with one, two, four or nine additional binocular heads, 30° inclined tubes and infinity corrected IOS objectives each extra binocular head is supplied with super wide field plan SWF 10x/25 mm eyepieces (except for the model with 9 binocular heads (10 users) that is supplied with EWF 10x/22 mm eyepieces)
DX.1156-xxx/n (NeoLED™ versions). n = total number of heads. xxx = objectives PLi, APLi or PLPHi
DX.2156-xxx/10 (Delphi-X Observer 10 head version is only available with a 100W halogen illumination)
Objectives
Clinical routine laboratories
Infinity corrected Plan Achromatic EIS 4x/0.10 WD 30mm, 10x/0.25 WD 10.2mm, 20x/0.40 WD 12.0mm,
S40x/0.65 WD 0.7mm, S100x/1.25 (oil immersion) WD 0.2mm objectives
Optional: 2x/0.06 WD 7.5mm, S50x/0.95 (oil immersion) WD 0.19mm and S60x/0.80 WD 0.30mm
Phase Contrast
Infinity corrected Plan Phase EIS 10x/0.25 WD 10.2mm, 20x/0.40 WD 12mm, S40x/0.65 WD 0.7mm,
S100x/1.25 (oil immersion). WD 0.2mm objectives
WD=Working Distance
Stages
The Delphi-X Observer™ is supplied with a 190 x 152mm stage with 78 x 32mm integrated right-handed
mechanical stage. The standard stage is supplied with scratch-resistant
Gorilla glass. Sapphire scratch-resistant glass is available on
request. A left-handed mechanical stage is available on request (Order references: Add -L to product number)
Condenser for Brightfield
Standard height adjustable Abbe N.A. 0.9/1.25 swing-out condenser with numerical aperture identification marks.
Condenser for Phase Contrast
In height adjustable N.A. 1.25 Zernike phase contrast condenser with phase annuli for 10/20/40x and S100x-oil
objectives. To be used with the phase contrast objectives
Focusing
Coaxial coarse and fine adjustments, 100 graduations, 1 µm
per graduation, 100 µm per rotation, total travel approximately
35 mm. Supplied with an adjustable rack stop to prevent
damage to sample and objectives. The coarse adjustments
are equipped with friction control. The focusing knobs can be
switched from left to right according to the user's preference
Diascopic Illumination
Two illuminations are available for the Delphi-X Observer™ microscope:
• Diascopic intensity adjustable 3W NeoLED™ illumination with internal 100-240V power supply
• Diascopic intensity adjustable 100W 24V halogen illumination with internal 100-240V power supply
The diascopic 100W 24V halogen illumination comes with 2 push-in/push-out neutral density filters
for smooth attenuation of the light intensity for all kind of samples. The diascopic NeoLED™ illumination comes with 1 neutral density filter
NeoLED™
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with
a short focal length in order to obtain three main benefits:
- More oblique light from the LED lightsource can be captured, which increases the light output significantly
- Less energy is required to achieve this level of light intensity
- The larger aperture of NeoLED™ allows the optical systems of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics
iCare Sensor
The unique iCare Sensor is present on all Delphi-X Observer® microsocopes and has been developed to avoid unnecessary
loss of energy. The illumination of the microscope
automatically switches off shortly after microscopists
step away from their position
Ordering information:
|
Accessories & Spare Parts |
|
|
Eyepieces |
|
|
DX.6010 |
SWF 10x/25mm eyepiece, ø 30mm tube |
|
DX.6010-22 |
EWF 10x/22mm eyepiece, ø 30mm tube |
|
DX.6012 |
SWF 12x/17mm eyepiece, ø 30mm tube |
|
DX.6015 |
SWF 15x/16mm eyepiece, ø 30mm tube |
|
DX.6020 |
SWF 20x/12mm eyepiece ø 30mm tube |
|
DX.6010-C |
SWF 10x/25mm eyepiece with micrometer, ø 30mm tube |
|
DX.6099 |
Pair of eyecups for eyepieces |
|
DX.6099-L |
Pair of eyecups for eyepieces (large) |
|
Objectives (Plan achromatic PLi) |
|
|
DX.7202 |
2x/0.06 infinity corrected objective. Working distance 7.5mm |
|
DX.7204 |
4x/0.10 infinity corrected objective. Working distance 30mm |
|
DX.7210 |
10x/0.25 infinity corrected objective. Working distance 10.2mm |
|
DX.7220 |
20x/0.40 infinity corrected objective. Working distance 12mm |
|
DX.7240 |
S40x/0.65 infinity corrected objective. Working distance 0.7mm |
|
DX.7250 |
S50x/0.95 oil immersion infinity corrected objective. Working distance 0.19mm |
|
DX.7260 |
S60x/0.80 infinity corrected objective. Working distance 0.3mm |
|
DX.7200 |
S100x/1.25 oil immersion infinity corrected objective. Working distance 0.2mm |
|
DX.7200-I |
S100x/1.25 oil immersion infinity corrected objective with built-in iris diaphragm. Working distance 0.2mm |
|
Objectives (Plan Semi-apochromatic PLi-Apo) |
|
|
DX.7304 |
4x/0.13 infinity corrected objective. Working distance 16.5mm |
|
DX.7310 |
10x/0.30 infinity corrected objective. Working distance 8.1mm |
|
DX.7320 |
20x/0.50 infinity corrected objective. Working distance 2.1mm |
|
DX.7340 |
S40x/0.75 infinity corrected objective. Working distance 0.7mm |
|
DX.7300 |
S100x/1.3 infinity corrected objective. Working distance 0.15mm |
|
Objectives (Plan Phase PLPHi) |
|
|
DX.7710 |
10x/0.25 infinity corrected objective Working distance 10.2mm |
|
DX.7720 |
20x/0.40 infinity corrected objective Working distance 12mm |
|
DX.7740 |
S40x/0.65 spring mounted infinity corrected objective. Working distance 0.7mm |
|
DX.7700 |
S100x/1.25 spring mounted oil immersion infinity corrected objective. Working distance 0.2mm |
|
Condensers |
|
|
DX.9105 |
Abbe condenser 0.9/1.25 with swing-out front lens |
|
DX.9126 |
Zernike phase contrast set with Plan Phase PLPHi 10/20/S40/S100x objectives, phase contrast condenser and telescope |
|
DX.9140 |
Zernike Phase contrast Abbe condenser with 4 phase annuli |
|
DX.9148 |
Telescope for phase contrast alignment, ø 30mm |
|
DX.9660 |
Simple polarization kit, consisting of polarizer in slider and analyzer on lamp house |
|
DX.9662 |
Simple polariation kit with 1? retardation plate for identification of gout crystals (monosodium urate) |
|
Filters |
|
|
DX.9700 |
Blue filter, ø 45mm, fits on lamphouse |
|
DX.9702 |
Green filter, ø 45mm, fits on lamphouse |
|
DX.9704 |
Yellow filter, ø 45mm, fits on lamphouse |
|
DX.9930 |
NeoLED™ replacement unit |
|
SL.3680 |
100W 24V halogen bulb |
|
Miscelleneous |
|
|
AE.5130 |
Universal ø 23.2mm tube adapter with built-in 2x lens for SLR photo camera with APS-C sensor. Needs T2 adapter |
|
AE.5025 |
T2 ring for Nikon D SLR digital camera |
|
AE.5040 |
T2 ring for Canon EOS SLR digital camera |
|
PB.5155 |
Microscope slides 76 x 26mm, ground edges, 50 pieces |
|
PB.5165 |
Cover glasses 18 x 18mm, thickness 0.13-0.17mm, 100 pieces |
|
PB.5168 |
Cover glasses 22 x 22mm, thickness 0.13-0.17mm, 100 pieces |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n = 1.482, 25 ml |
|
PB.5274 |
Isopropyl alcohol 99% 200 ml |
|
PB.5275 |
Cleaning kit: lens cleaning fluid, lint free lens tissue, brush, air blower, cotton swabs |
Euromex DZ Series Stereo Zoom Microscopes for Industry and Research
Optical Equipment
- The DZ Series is designed around a highly precise Infinity Parallel Zoom body equipped with a Plan Apochromatic corrected main objective providing the necessary high contrasted images and resolving power to high-tech applications
- Choose between a 1:6.3 or 1:8 zoom ratio zoom body
- Both versions can be equipped with 3 different common main objectives with 0.5x, 1.0x and 2.0x magnifications
- Together with standard Extended Wide Field EWF 10x/22 well corrected eyepieces, magnifications up to 160x are achievable
- Optionally WF 15x16 and WF 20x/12 eyepieces are available
- Two head versions are available, a fixed 20º binocular head or an ergonomic head with adjustment of the inclination from 0º to 35º
Magnifications and Fields of View with EWF 10x/22 Extended Wide Field eyepieces
|
|
Objective 0.5x Working distance 126 mm. |
Objective 1.0x Working distance 78 mm. |
Objective 2.0x Working distance 33 mm. |
|
Zoom indication |
Total Field of view magnification in mm. |
Total Field of view magnification in mm. |
Total Field of view magnification in mm. |
|
0.8x |
4x 55 |
8x 27.5 |
16x 13.7 |
|
1.0x |
5x 44 |
10x 22 |
20x 11 |
|
1.5x(1) |
7.5x 29.3 |
15x 14.6 |
30x 7.3 |
|
2.0x |
10x 22 |
20x 11 |
40x 5.5 |
|
3.0x |
15x 14.6 |
30x 7.3 |
60x 3.6 |
|
4.0x |
20x 11 |
40x 5.5 |
80x 2.7 |
|
5.0x |
25x 8.8 |
50x 4.4 |
100x 2.2 |
|
6.5x(2) |
32.5x 6.7 |
65x 3.4 |
130x 1.7 |
(1) zoom indication only with DZ.0630 models
(2) Magnifications and zoom indication only with DZ.0800 models
DZ stand with dual LED illuminations
The DZ Series can be mounted on an ergonomic stand with incident and transmitted LED illuminations. Both illuminations are adjustable by separate knobs. The focusing range is 105 mm.
Universal stand without illumination
A universal stand with holder enables industrial applications where the operator must be able to move the stereomicroscope away from their desk.
Dual iris diaphragm and phototube
A dual iris diaphragm DZ.9010 can be added to the configuration in order to achieve maximum contrast and resolving power.
A camera can be mounted with the optional phototube DZ.9005.
Cold light illuminations
LE.5210 or LE.5211 multi-functional 100 Watt or 150 Watt halogen cold light sources are commonly used illuminations. The light intensity is fully adjustable. Light guides are chosen separately.
Depending on the application, these cold light sources can be used with flexible or gooseneck type guides or fibre optic ring lights.
Industrial LED ring illuminations
An industrial ring light illumination LE.19xx can be mounted around the objective providing a very white ring illumination of the object.
The LED illuminations are available with 0 – 100% light intensity power supply or a 7 segment LED controller. The controller enables to select one of the 7 segments of the LED ring light in order to achieve oblique illumination to reveal other details.
The ring lights can be equipped with focusing Fresnel lenses or a protection glass window and a polariser / analyser to perform petrological analyses.
Ordering information:
|
Systems |
|
|
DZ.1600 |
DZ Zoom 1:6.3 stereomicroscope with Ergo binocular head 10 - 50º, EWF 10x/22 eyepieces, 1x Plan main objective and large ergonomic LED stand. Magnification from 8x up to 50x |
|
DZ.1605 |
DZ Zoom 1:6.3 stereomicroscope with standard binocular head 20º, EWF 10x/22 eyepieces, 1x Plan main objective and large ergonomic LED stand. Magnification from 8x up to 50x |
|
DZ.1800 |
DZ Zoom 1:8 stereomicroscope with Ergo binocular head 10 - 50º, EWF 10x/22 eyepieces, 1x Plan main objective and large ergonomic LED stand. Magnification from 8x up to 64x |
|
DZ.1805 |
DZ Zoom 1:8 stereomicroscope with standard binocular head 20º, EWF 10x/22 eyepieces, 1x Plan main objective and large ergonomic LED stand. Magnification from 8x up to 64x |
|
DZ.1100 |
DZ Zoom 1:10 stereo microscope with Ergo bino head 5-35º, EWF 10x/22 Eyepieces,1x Plan Apochromatic Main Objective and large ergonomic LED stand. Magnification from 8x up to 80x |
|
DZ.1105 |
DZ Zoom 1:10 stereo microscope with standard bino head 20º, EWF 10x/22 Eyepieces,1x Plan Apochromatic Main Objective and large ergonomic LED stand. Magnification from 8x up to 80x |
|
Components |
|
|
DZ.0630 |
DZ Zoom body 1:6.3, magnification 0.8x to 5.0x |
|
DZ.0800 |
DZ Zoom body 1:8, magnification 0.8x to 6.4x |
|
DZ.1000 |
DZ Zoom body 1:10, magnification 0.8x to 8.0x |
|
DZ.2020 |
Ergo binocular head 10 - 50º |
|
DZ.2025 |
Standard binocular head 20º |
|
DZ.3010 |
EWF 10x/22 eyepiece, 1 piece |
|
DZ.3012 |
EWF 10x/22 eyepiece with crosshair, 1 piece |
|
DZ.3015 |
WF 15x/16 eyepiece, 1 piece |
|
DZ.3020 |
WF 20x/12 eyepiece |
|
DZ.4005 |
0.5x Plan main objective |
|
DZ.4010 |
1.0x Plan main objective |
|
DZ.4020 |
2.0x Plan main objective |
|
DZ.5020 |
Universal stand without illumination |
|
DZ.5040 |
Large Ergo stand with dual LED illuminations |
|
DZ.9005 |
Single photo attachment with 23.2 mm tube |
|
DZ.9007 |
Dual photo attachment with two 23.2 mm tubes |
|
DZ.9009 |
Single photo attachment for fluorescence attachment with 23.2 mm tube |
|
DZ.9010 |
Dual iris diaphragm module |
|
DZ.9011 |
C-mount adapter with 0.4x lens for photo attachment |
|
DZ.9013 |
C-mount adapter with 1.0x lens for photo attachment |
|
DZ.9020 |
Translation stage |
|
DZ.9040 |
Darkfield attachment for DZ.5040 |
|
DZ.9045 |
Polarisator 360º rotatable, fits all DZ objectives |
|
DZ.9047 |
Polarisator 360º rotatable, fits on DZ.5040 stand |
|
DZ.9050 |
Fluorescence attachment with 100W mercury-vapor lamp |
|
DZ.9060 |
Filter block GFP-B (EX 460-500, DM 505, EM 510-560) |
|
DZ.9061 |
Filter block GFP-L (EX 460-500, DM 505, EM 510) |
|
DZ.9062 |
Filter block CFP-B (EX 430-450, DM 455, EM 465-495) |
|
DZ.9063 |
Filter block YFP-B (EX 490-510, DM 525, EM 530-560) |
|
DZ.9064 |
Filter block G (EX 515-550, DM 570, EM 590) |
|
DZ.9065 |
Filter block RFP-B (EX 525-555, DM 570, EM 585) |
|
Illumination systems |
|
|
Cold light source components |
|
|
LE.5210 |
100 Watt halogen cold light source. Supplied without light guides |
|
LE.5211 |
150 Watt halogen cold light source. Supplied without light guides |
|
LE.5213 |
Self-supporting Gooseneck single arm, 4 mm. diameter light glass fibre conductor, 50 cm. long |
|
LE.5214 |
Self-supporting Gooseneck dual arm, 4 mm. diameter light glass fibre conductor, 50 cm. long |
|
LE.5239 |
Glass fibre ring light for LE.5210 or LE.5211, 8 mm. diameter light glass fibre conductor, 60 cm. long |
|
LE.5240 |
Glass fibre ring light for LE.5210 or LE.5211, 8 mm. diameter light glass fibre conductor, 100 cm. long |
|
LE.5222 |
Focusing head suitable for LE.5213 and LE.5214 |
|
LE.5228 |
Focusing head with iris diaphragm suitable for LE.5213 and LE.5214 |
|
LE.5223 |
Colour RGB filter set for LE.5222 and LE.5228 |
|
LE.5224 |
Aspherical focusing lens for LE.5222 and LE.5228 |
|
LE.5229 |
Polarisation filter for LE.5222 and LE.5228 |
|
SL.5230 |
Spare halogen bulb, 12V 100 Watt for LE.5210 |
|
SL.5235 |
Spare halogen bulb, 12V 150 Watt for LE.5211 |
|
Industrial LED ring illumination components |
|
|
LE.1980 |
LED ring light 48 LEDs for 0 – 100 power supply |
|
LE.1981 |
LED ring light 48 LEDs for segment controller |
|
LE.1990 |
LED ring light 72 LEDs for 0 – 100% power supply |
|
LE.1991 |
LED ring light 72 LEDs for segment controller |
|
LE.1992 |
0 – 100% adjustable 110 – 230V power supply |
|
LE.1993 |
Digital segment controller and power supply |
|
LE.1984 |
Diffuser plate for LE.1980 and LE.1981 |
|
LE.1984-100 |
Fresnel lens WD 100 mm. for LE.1980 and LE.1981 |
|
LE.1985 |
Protection glass window for LE.1980 and LE.1981 |
|
LE.1986 |
Polariser filter for LE.1980 and LE.1981 |
|
LE.1987 |
Polariser / Analyser kit for LE.1980 and LE.1981 |
|
LE.1994 |
Diffuser plate for LE.1990 and LE.1991 |
|
LE.1994-100 |
Fresnel lens WD 100mm. for LE.1990 and LE.1991 |
|
LE.1995 |
Protection glass window for LE.1990 and LE.1991 |
|
Accessories |
|
|
AE.1112 |
Object micrometer 50 mm divided in 500 divisions |
|
AE.1900 |
Glass stage, 100 mm diameter |
|
AE.1903 |
Black/white acrylic stage, 100 mm diameter |
|
AE.5128 |
SLR camera adapter with 2x lens for 23.2 mm tubes To be used with T-2 camera adapter |
|
AE.5025 |
T-2 adapter for Nikon SLR camera |
|
AE.5040 |
T-2 adapter for Canon SLR camera |
|
AE.1385 |
Spare 100 W mercury-vapor lamp for DZ.9050 |
|
SL.5520 |
LED replacement for incident illumination of DZ.5040 |
|
SL.5222 |
LED replacement for transmitted illumination of DZ.5040 |
Euromex iScope® Microscopes for Material Science
The iScope® microscopes are supplied with specific attachments that turn the iScope® into a state-of-the art material science microscope suitable for various applications.
Highlights
- EWF 10x/22 mm and EWF10x/20 mm eyepieces
- Binocular and trinocular models
- Reversed quintuple revolving nosepiece:
- Infinity corrected IOS objectives for material observation and polarisation:
- 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage:
- ø 160 mm rotatable round stage for polarisation models:
- Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with external 100-240V power supply:
- Epi-NeoLED illumination for metallurgical models:
- Epi-illumination 50W for polarisation models:
- iCare sensor for energy saving:
- CSS - Cable Storage System :
- 10 years warranty:
Technical Specification
Eyepieces
Metallurgical models are supplied with extended EWF
10x/20 mm (ø 23.2 mm tube) eyepieces. Polarisation models
are supplied with a pair of EWF 10x/22 mm (ø 30 mm tube)
eyepieces, one eyepiece with cross hair and one eyepiece
with a cross hair and micrometer reticle
Heads
Binocular and trinocular Siedentopf type heads with
30° inclined tubes. Interpupillary distance from 48 to 76 mm.
Two ±5 diopter adjustments. A unique rotating system allows
the ergonomic positioning of both tubes in a high (431 mm)
and in a low position (397 mm).
The trinocular head 23.2 mm tube fits optional photo
C-mount adapters with built-in 0.33x or 0.5x objective
Objectives
| Plan PLMi IOS(1) | 5x/0.10 | 10x/0.25 | 20x/0.40 | S50x/0.65 | S80x/0.90(4) | S100x/0.80(4) | |
| Plan PLPOLi IOS(2) | 4x/0.10 | 10x/0.25 | 20x/0.40(4) | S40x/0.65 | S60x/0.85(4) | S100x/1.25(4) | Plan PLi IOS(3) | 4x/0.10 | 10x/0.25 | 20x/0.40(4) | PLPHi S40x/0.65 | S80x/0.85(4) | S100x/1.25(4) |
(1)Plan PLMi infinity corrected objectives for material observation
(2)Plan PLPOLi strain free infinity corrected objectives for polarisation
(3)Plan PLi infinity corrected objectives for asbestos research microscopes the S40x which is a plan phase contrast PLPHi infinity corrected objective
(4)Optional objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Stages
The iScope® is supplied with a 216 x 150 mm rackless stage equipped with double slide
holder and integrated 79 x 52 mm mechanical stage.
The iScope® rackless stage has no protruding parts,
enables more smooth movements and is safer working
ø 160 mm round stage for polarisation models,
360° rotatable with Vernier and two object clamps.
An optional 30 x 40 mm X-Y mechanical stage is also available
Standard Condenser
Standard height adjustable Abbe N.A. 1.25 condenser with
iris diaphragm. Suitable for slider with dark field stop for
magnifications up to maximum 400x.
Optional height adjustable Abbe N.A. 0.9/1.25
swing-out condenser with iris diaphragm
Condenser for polarisation microscopes
Height adjustable Abbe N.A. 1.25 condenser with
iris diaphragm and 360° rotatable polariser
Focusing
Coaxial coarse and fine adjustments, 200 graduations, 1 µm
per graduation, 200 µm per rotation, total travel approximately
24 mm. Supplied with an adjustable rack stop to prevent
damage to sample and objectives. The coarse adjustments
are equipped with friction control
Illumination
3W adjustable Köhler NeoLED™ diascopic illumination with
internal 100-240 V power supply
The innovative NeoLED™ design offer larger apertures,
allowing the optical system of the iScope® microscope to
produce images at higher resolutions, very close to the
theoretical diffraction limit of the optics. Other benefits of the
NeoLED™ is the low energy consumption, no heating and a
long operating lifetime
The Köhler illumination on models with IOS plan and plan
phase infinity corrected system provides high contrast and
a maximum achievable resolving power of the optics. Also
available for other models as option
Reflected Illumination for Polarisation Models
Polarisation models are equipped with a 50W 12V halogen
epi-illumination and external 100-240V power supply.
Supplied with 360° rotatable polarisation filter, analyzer, Bertrand
lens, 1λ first red plate, 1/4λ retardation plate, a quartz wedge,
sliders with green/blue and whiter/polariser filter
Reflected Illumination for Metallurgical Models
Metallurgical models are equipped with a reflected NeoLED™
illumination and external 100-240V power supply. Supplied
with a 0-90° polarisation filter in slider, simple dark field stop,
white, green, blue and yellow filters
iCare Sensor
The unique iCare Sensor is present on all iScope® microsocopes and has been developed to avoid unnecessary
loss of energy. The illumination of the microscope
automatically switches off shortly after microscopists
step away from their position
Cable Storage System
iScope® allows users to easily insert the power cable into
the backside of the instrument, which enables easy storage.
The integrated carrying grip at the back of the microscope
ensures safe transportation of the microscope
Ordering information:
|
iScope® Models: |
||||||
|
|
Head |
Max Obj |
EWF |
Plan Mettalurgical IOS obj |
Plan Polarising IOS obj |
Reflective Illumination |
|
IS.1052-PLPOLi |
Binocular |
4 |
10x/22mm, 10x/20mm |
|
• |
|
|
IS.1053-PLPOLi |
Trinocular |
4 |
10x/22mm, 10x/20mm |
|
• |
|
|
IS.1052-PLPOLRi |
Binocular |
4 |
10x/22mm, 10x/20mm |
|
• |
• |
|
IS.1053-PLPOLRi |
Trinocular |
4 |
10x/22mm, 10x/20mm |
|
• |
• |
|
IS.1052-PLMi |
Binocular |
5 |
10x/22mm, 10x/20mm |
• |
|
|
|
IS.1053-PLMi |
Trinocular |
5 |
10x/22mm, 10x/20mm |
• |
|
|
|
Accessories & Spare Parts |
|
|
Eyepieces |
|
|
IS.6010 |
EWF 10x/20 mm eyepiece ø 23.2mm tube |
|
IS.6010-P |
EWF 10x/20 mm eyepiece with pointer |
|
IS.6010-CM |
EWF 10x/20 mm eyepiece with 10/100 micrometer and crosshair |
|
IS.6015 |
EWF 15x/16 mm eyepiece ø 23.2mm tube |
|
IS.6020 |
EWF 20x/12 mm eyepiece ø 23.2mm tube |
|
IS.6210 |
EWF 10x/22 mm eyepiece ø 30mm tube |
|
IS.6210-P |
EWF 10x/22 mm eyepiece with pointer |
|
IS.6210-CM |
EWF 10x/22 mm eyepiece with 10/100 micrometer and crosshair |
|
IS.6015 |
EWF 15x/16 mm eyepiece ø 30mm tube |
|
IS.6220 |
EWF 20x/12 mm eyepiece ø 30mm tube |
|
IS.6099 |
Pair of eye cups for iScope® finity models |
|
IS.6299 |
Pair of eye cups for iScope® infinity models |
|
Objectives IOS (infinity corrected) |
|
|
IS.7904 |
Plan PLPOLi(1) 4x/0.12 IOS objective |
|
IS.7910 |
Plan PLPOLi(1) 10x/0.25 IOS objective |
|
IS.7920 |
Plan PLPOLi(1) 20x/0.40 IOS objective |
|
IS.7940 |
Plan PLPOLi(1) S40x/0.65 IOS objective |
|
IS.7960 |
Plan PLPOLi(1) S60x/0.85 IOS objective |
|
IS.7900 |
Plan PLPOLi(1) S100x/1.25 IOS objective |
|
IS.8105 |
Plan PLMi(2) 5x/0.12 IOS objective |
|
IS.8110 |
Plan PLMi(2) 10x/0.25 IOS objective |
|
IS.8120 |
Plan PLMi(2) 20x/0.40 IOS objective |
|
IS.8150 |
Plan PLMi(2) S50x/0.70 IOS objective |
|
IS.8180 |
Plan PLMi(2) S80x/0.90 IOS objective |
|
IS.8100 |
Plan PLMi(2) S100x/0.80 IOS objective |
|
(1) Strain free (2) No cover glass correction |
|
|
Condensers |
|
|
IS.9102 |
Standard Abbe condenser 1.25 NA with slot for dark field and phase contrast sliders |
|
IS.9105 |
Swing-out 0.9/1.25 NA condenser |
|
IS.9124 |
Zernike phase contrast set with PLPH 10/20/40/100x objectives and rotating phase contrast condenser with bright and dark field position* |
|
IS.9127 |
Zernike phase contrast set with With PLPHi 10/20/40/100x IOS objectives and rotating phase contrast condenser with bright and dark field position* |
|
IS.9148 |
Telescope for phase contrast ø 30mm tube |
|
IS.9149 |
Telescope for phase contrast ø 23.2mm tube |
|
IS.9150 |
Cardioid dark field condenser with integrated 5W LED light source and external 100-240V mains adapter |
|
IS.9160 |
Phase contrast slider set with PLPH 10/40x objectives and slider* |
|
IS.9161 |
Phase contrast slider set slider with PLPH 20/100x objectives and slider* |
|
IS.9162 |
Phase contrast slider set slider with PLPH 10/40x IOS objectives and slider* |
|
IS.9163 |
Phase contrast slider set slider with PLPH 20/100x IOS objectives and slider* |
|
IS.9170 |
Slider with dark field stop |
|
*With green opaque filter |
|
|
Filters |
|
|
IS.9600 |
Polarization for lamp house (45mm) |
|
IS.9700 |
Blue opaque for lamp house (45mm) |
|
IS.9702 |
Green opaque for lamp house (45mm) |
|
IS.9704 |
Yellow opaque for lamp house (45mm) |
|
IS.9710 |
White opaque for lamp house (45mm) |
|
Miscelleneous |
|
|
IS.5700 |
Ergonomic tilting head IOS series |
|
IS.9800 |
Photo tube for IS.5700 ø 23.2mm tube |
|
IS.9503 |
Large ceramic stage 220 x 157 mm Only with new purchased microscopes (add suffix /C) |
|
IS.9880 |
Köhler |
|
SL.5500 |
NeoLED™ replacement unit for iScope® |
|
PB.5155 |
Microscope glass slides 76 x 26 mm, ground edges, 50 pcs |
|
PB.5168 |
Cover glasses 22 x 22 mm, thickness, 0.13-0.17, 100 pcs |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n = 1.482, 25 ml |
Euromex NexiusZoom EVO Stereo Microscope for Gemology
The specialised backwards tilting stand of the NexiusZoom EVO stereo microscopes for gemology applications offers 30W halogen transmitted illumination towards the specimen at oblique angles. This enables the examination of your gems in perfect darkfield conditions. The stand is also available with 1W LED or a 7W fluorescent incident illumination for brightfield contrast.
Highlights
- Binocular and trinocular heads
- Standard HWF 10x eyepieces with 22mm or 23mm field of view:
- Zoom objectives with 0.7 to 4.5x or 0.65 to 5.5x magnification:
- Ergonomically designed backwards tilting stand:
- 30 Watt halogen transmitted illumination:
- 1W LED or 7W fluorescent incident illumination:
- Configurations up to 220x magnification:
Technical Specification
- Eyepieces Pair of HWF 10x eyepieces with 23 mm field of view
- HeadBinocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments. Interpupillary distance adjustable between 54mm and 75mm
- Objective The NexiusZoom EVO is supplied with a 1:8.4 zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4mm to 4.2mm. WD approx. 110mm Auxiliary lenses 0.75x, 1.5x and 2.0x are available All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
- Stands Ergonomically designed stand with backwards 0 to 45° tilting arm with 76mm head holder for darkfield and brightfield. Built-in 100-240V power supply
- Stage Flat darkfield stage with clamp object holder, iris diaphragm and incident illumination
- Illumination 30 Watt halogen transmitted illumination, 1W LED or 7W fluorescent incident illumination. With internal power supply 100-240V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately
Magnifications NexiusZoom EVO
Working distance and field of view with standard HWF 10x / 23mm High Wide Field eyepieces
|
Accessories & Spare Parts |
|
|
Heads & Eyepieces |
|
|
NZ.5302 |
NexiusZoom binocular head with eyepieces |
|
NZ.5303 |
NexiusZoom trinocular head with eyepieces |
|
NZ.5312 |
NexiusZoom EVO binocular head with eyepieces |
|
NZ.5313 |
NexiusZoom EVO trinocular head with eyepieces |
|
NZ.6010 |
WF 10x/22 mm eyepiece |
|
NZ.6210 |
Pair of HWF 10x / 23mm eyepieces (only suitable for NexiusZoom EVO) |
|
NZ.6015 |
HWF 15x/16 mm eyepiece |
|
NZ.6020 |
HWF 20x/12 mm eyepiece |
|
NZ.6110 |
HWF 10x/22 mm eyepiece with 1/100 mm micrometer reticule |
|
NZ.6099 |
Pair of eyeshades |
|
NZ.8907 |
Auxiliary lens 0.75x, working distance 120mm |
|
NZ.8915 |
Auxiliary lens 1.5x, working distance 53mm |
|
NZ.8920 |
Auxiliary lens 2.0x, working distance 30mm Not suitable for -S model |
|
NZ.8950 |
Protection glass for NexiusZoom head. Not suitable with auxiliary lenses |
|
NZ.9525 |
360° rotatable analyzer in mount to be screwed under the head of NexiusZoom. Not suitable for use in combination with auxiliary lenses |
|
NZ.9572-G |
Adjustable GEM object clamp for NexiusZoom with tilting stand for gemology |
|
NZ.9833 |
C-mount adapter with 0.33x lens for 1/3" cameras. Suitable for trinocular models |
|
NZ.9850 |
C-mount adapter with 0.5x lens for 1/2" cameras.Suitable for trinocular models |
|
AE.5130 |
Universal SLR camera adapter with 2x projection lens for 23.2mm tubes. Needs T2 adapter |
|
AE.5025 |
T2 adapter for Nikon D digital SLR cameras |
|
AE.5040 |
T2 adapter for Canon EOS digital SLR cameras |
|
AE.1112 |
Object micrometer 50 mm (divided in 500 parts on glass slide 76 x 26mm) |
Euromex Oxion Inverso Microscopes for Life Sciences
The Oxion Inverso inverted microscopes are useful for observation of living organisms and tissues cultures in cell culture dishes and flasks. The Oxion Inverso series are available with brightfield and phase contrast as well as for fluorescence microscopy. Dedicated objectives are suitable for 1.2 mm thick glass bottoms of cell culture dishes and flasks
Highlights
- Life Science applications
- Observation of tissue cultures, living cells
- Brightfield, phase contrast and fluorescence:
- Long working distance IO S plan achromatic objectives:
- Revolving quintuple nosepiece:
- 5W LED transmitted illumination:
- 100W mercury vapor lamp for fluorescence:
- 10 years warranty:
Technical Specification
Eyepieces
Heads
Trinocular 45° inclined tubes with extended low and high
positions for eyepieces. One diopter adjustment on left
eyepiece. Interpupillary distance of 54 to 75 mm.
Trinocular head with 100-0% and 80-20% positions
Nosepieces
Revolving quintuple nosepiece on ball-bearings
Objectives for Brightfield
(models OX.2003-PL and OX.2053-PL)
Infinity color corrected long working distance plan
10x/0.25, 20x/0.40, 40x/0.60 IOS objectives.
An optional 60x/0.70 IOS objective is also available
Objectives for Phase Contrast
(models OX.2003-PL and OX.2053-PL)
Infinity color corrected long working distance plan
10x/0.25, 20x/0.40, 40x/0.60 IOS objectives.
An optional 60x/0.70 IOS objective is also available
Objectives for Brightfield and Fluorescence Microscopy
(models OX.2253-PLF and OX.2453-PLF)
Infinity color corrected long working distance plan Fluarex
10x/0.30, 20x/0.45, 40x/0.65 IOS objectives. An optional plan
Fluarex 60x/0.75 IOS objective is also available
Objectives for Phase Contrast and Fluorescence Microscopy
(models OX.2253-PLPHF and OX.2453-PLPHF)
Infinity color corrected long working distance plan fluarex
10x/0.30 and plan phase fluarex 20x/0.45 and S40x/0.65 IOS
objectives
All objectives corrected for 1.2 mm thickness. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Stage
Stage 250 x 230 mm equipped with a coaxial mechanical
120 x 78 mm X-Y stage, delivered with:
- metallic insert for ø35 mm cell culture dish dishes
- 76 x 26 mm slide holder
- glass insert with hole
- optional universal cell culture dish holder
Condenser
N.A. 0.30 condenser with iris diaphragm.
Working distance 72 mm
The models for the phase contrast OX.2003-PLPH, OX.2053- PLPH, OX.2253-PLPHF and OX.2453-PLPHF are delivered with a slider with 4x/10x and 20x/40x pre-centered phase rings
Focusing Adjustment
Coaxial 25 mm coarse and fine adjustments, 2 µm precision
and with friction adjustment
Illumination
Transmitted 5W LED Intensity adjustable with internal
100-240V power supply. Fuse holder 3.15A / 250V
The fluorescence models are equipped with a reflected 100W HBO mercury vapor light source with external 100-240V power supply, fuse holder 3.15A / 250V, UV protection shield
Filters for Phase Contrast Models
Interference filter 550 nm green and blue filter, 45 mm diameter
Standard Fluorescence Filters
(for fluorescence models)
The fluorescence models OX.2253-PLF and OX.2453-PLF
are standard supplied with 2 filter sets for excitation:
• in the blue spectrum, OX.9745, EX465-495 (BP) DM505 (LP) EM515-558 (BP)
• in the green spectrum, OX.9746, EX520-600 (BP) DM600 (LP) EM605-665 (BP)
The fluorescence models OX.2253-PLF and OX.2453-PLPHF
equipped with a 4 positions filter rail equipped with 3
standard filter sets for excitation:
• in the blue spectrum,OX.9745, EX465-495 (BP) DM505 (LP) EM515-558 (BP)
• in the green spectrum, OX.9746, EX520-600 (BP) DM600(LP) EM605-665 (BP)
• in the UV spectrum, OX.9747, EX361-381 (BP) D415 (LP) EM435-495 (BP)
Packaging
Supplied with power cord, dust cover and user manual.
Phase contrast models are supplied with green filter and
centering telescope.
Models
LWD Plan 10x/20x/40x objectives LWD Plan Phase 10x/20x/40x objectives LWD Plan Fluorex 10x/20x/40x objectives LWD Plan fluarex 10x and plan phase fluarex 20x/40x objectives 2 position filter block 4 position filter block Mechanical Stage
OX.2003-PL •
OX.2053-PL • •
OX.2003-PLPH •
OX.2053-PLPH • •
OX.2253-PLF • • •
OX.2453-PLF • • •
OX.2253-PLPHF • • •
OX.2453-PLPHF • • •
Ordering Information:
|
Eyepieces |
|
|
OX.6010 |
HWF 10x/22 mm eyepiece |
|
OX.6015 |
HWF 15x/16 mm eyepiece |
|
OX.6110 |
HWF 10x/22 mm eyepiece with micrometer reticule |
|
OX.6099 |
Pair of eyecups |
|
Objectives (1) |
|
|
Brightfield |
|
|
OX.8304 |
Plan LWD 4x/0.10 infinity corrected IOS objective, working distance 22 mm |
|
OX.8310 |
Plan LWD 20x/0.40 infinity corrected IOS objective, working distance 7.66 mm |
|
OX.8340 |
Plan LWD 40x/0.60 infinity corrected IOS objective, working distance 3.71 mm |
|
OX.8360 |
Plan LWD 60x/0.70 infinity corrected IOS objective, working distance 2.5 mm |
|
Brightfield and Fluorescence |
|
|
OX.8604 |
Plan fluarex LWD 4x/0.13 infinity corrected IOS objective, working distance 18.5 mm |
|
OX.8610 |
Plan fluarex LWD 10x/0.30 infinity corrected IOS objective, working distance 7.1 mm |
|
OX.8620 |
Plan fluarex LWD 20x/0.45 infinity corrected IOS objective, working distance 5.91 mm |
|
OX.8640 |
Plan fluarex LWD 40x/0.65 infinity corrected IOS objective, working distance 1.61 mm |
|
OX.8660 |
Plan fluarex LWD 60x/0.75 infinity corrected IOS objective, working distance 1.04 mm |
|
Phase Contrast (2) |
|
|
OX.8404 |
Plan phase LWD 4x/0.13 infinity corrected IOS objective, working distance 10.4 mm |
|
OX.8410 |
Plan phase LWD 10x/0.25 infinity corrected IOS objective, working distance 7.94 mm |
|
OX.8420 |
Plan phase LWD 20x/0.40 infinity corrected IOS objective, working distance 7.66 mm |
|
OX.8440 |
Plan phase LWD 40x/0.60 infinity corrected IOS objective, working distance 3.71 mm |
|
Fluorescence and Phase Contrast (2) |
|
|
OX.8720 |
Plan phase fluarex LWD 20x/0.45 infinity corrected IOS objective. Working distance 5.91 mm |
|
OX.8740 |
Plan phase fluarex LWD 40x/0.65 infinity corrected IOS objective. Working distance 1.1 mm |
|
(1) All objectives corrected for 1.2 mm cover glass thickness. All optical parts are anti-fungus treated |
|
|
General Purpose Fluorescence Filter Sets |
|
|
OX.9745 |
Fluorescence filter block for Blue excitation 465-495 nm |
|
OX.9746 |
Fluorescence filter block for Green excitation 520-600 nm |
|
OX.9747 |
Fluorescence filter block for UV excitation 361-389 nm |
|
OX.9748 |
Fluorescence filter block for Violet excitation 361-389 nm |
|
Accessories |
|
|
OX.9149 |
Telescope for phase contrast alignment |
|
OX.9190 |
Slider with 4x/10x and 20x/40x phase contrast annuli |
|
OX.9500 |
Mechanical coaxial X-Y 120 x 78 mm stage |
|
OX.9506 |
Transparent glass insert with hole |
|
OX.9512 |
Insert with 76 x 26 mm slide holder and ø 54 mm cell culture dish holder |
|
OX.9535 |
Metal insert for ø35 mm cell culture dish holder |
|
OX.9550 |
Stage extension plate |
|
OX.9599 |
Universal cell culture dish holder |
|
OX.9985 |
5 W NeoLED replacement unit |
|
OX.9700 |
Blue filter |
|
OX.9702 |
Green filter |
|
OX.9703 |
IR cut-off filter |
|
OX.9749 |
Empty Filter block |
|
OX.9753 |
Filter block rail, 3 positions |
|
OX.9754 |
Filter block rail, 4 positions |
|
Photo Adapters |
|
|
OX.9810 |
CS/C mount with 1.0x objective |
|
OX.9833 |
C-mount adapter with 0.33x objective for Oxion microscopes and 1/3" cameras |
|
OX.9850 |
C-mount adapter with 0.5x objective for Oxion and Oxion Inverso microscopes and 1/2" cameras |
|
Miscellaneous |
|
|
AE.5120 |
Standard 23.2 mm diameter tube for Oxion photo port |
|
AE.5130 |
Universal SLR camera adapter with 2x projection lens for 23.2 mm tubes Need T2 adapter and AE.5120 |
|
AE.5025 |
T2 adapter for Nikon D digital SLR cameras |
|
AE.5040 |
T2 adapter for Canon EOS digital SLR cameras |
|
AE.3199 |
Glass fuses 3.15 A 250 V packed, per 10 pieces |
|
PB.5155 |
Microscope 76 x 26 mm. glass slides, ground edges, pack of 50 |
|
PB.5165 |
Cover glasses 18 x 18 mm, thickness 0.13 - 0.17 mm, 100 pieces |
|
PB.5168 |
Cover glasses 22 x 22 mm., thickness 0.13-0.17 mm., pack of 100 |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n=1.482, 25ml. |
|
PB.5274 |
Isopropanol 99%, cleaning liquid, 200ml. |
|
PB.5275 |
Cleaning kit: lens cleaning fluid, lint free lens tissue, brush, air blower, cotton swabs |
Euromex Oxion Inverso Microscopes for Material Sciences
Microscopes for materials science applications have the specific objectives and other tools like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials
The Oxion Inverso inverted microscopes for materials science are intensively used for observation of large pieces of material made from metal, wood, plastics and more The Oxion Inverso is available with a powerful 50W halogen brightfield contrast illumination and a large mechanical stage. The polarization and color filters makes this instrument suitable for a wide variety of applications
Highlights
- Materials Science applications
- Observation of all types of materials
- Brightfield with polarisation options:
- Long working IOS plan achromatic objectives:
- Long working IOS plan semi apochromatic objectives:
- Revolving quintuple nosepiece:
- 50W halogen Köhler illumination:
- 10 years warranty:
Technical Specification
Eyepieces
Heads
Trinocular 45° inclined tubes with extended low and high
positions for eyepieces. One diopter adjustment on left
eyepiece. Interpupillary distance of 54 to 75 mm.
Trinocular head with 100-0% and 80-20% positions
Nosepieces
Revolving quintuple nosepiece on ball-bearings
Objectives
Infinity color corrected long working distance 5x/0.15,
10x/0.14, 20x/0.45 plan achromatic IOS objectives
and a plan semi apochromatic S50x/0.55 IOS objective. Model
OX.2153-PLM also has plan semi apochromatic S100x/0.80
IOS objective. Not corrected for cover glass thickness.
All optics are anti-fungus treated and anti-reflection coated
for maximum light troughout
Stage
Stage 250 x 230 mm equipped with a coaxial mechanical
120 x 78 mm X-Y stage, delivered with:
- metallic insert for ø12 mm and ø35 mm diameter holes
- metallic insert with hole for mechanical stage
Condenser
Abbe condenser with iris diaphragm
Focusing Adjustment
Coaxial 25 mm coarse and fine adjustments, 2 µm precision
and with friction adjustment
Illumination
Transmitted Köhler 50W halogen Intensity adjustable with
internal 100-240V power supply. Fuse holder 3.15A / 250V
Polarisation
Standard polarization filter and 360° rotating analyzer
Filters
Standard blue and green filter
Packaging
Supplied with power cord, dust cover, blue and green filters and
user manual. Microscope supplied in an aluminium transport case
Models
LWD plan 5x/10x/20x objectives LWD plan apochromatic 50x objective LWD plan apochromatic 100x objective Mechanical Stage
OX.2653-PLM • • •
OX.2153-PLM • • • •
Ordering Information:
|
Eyepieces |
|
|
OX.6010 |
HWF 10x/22 mm eyepiece |
|
OX.6015 |
HWF 15x/16 mm eyepiece |
|
OX.6110 |
HWF 10x/22 mm eyepiece with micrometer reticule |
|
OX.6099 |
Pair of eyecups |
|
Objectives |
|
|
OX.8205 |
Plan achromatic PLM 5x/0.14 IOS objective. Working distance 20 mm |
|
OX.8210 |
Plan achromatic PLM 10x/0.25 IOS objective. Working distance 16 mm |
|
OX.8220 |
Plan achromatic PLM 20x/0.40 IOS objective. Working distance 7.8 mm |
|
OX.8250 |
Plan semi apochromatic PLM S50x/0.55 IOS objective. Working distance 7.9 mm |
|
Brightfield and Fluorescence |
|
|
OX.8200 |
Plan semi apochromatic PLM S100x/0.80 IOS objective. Working distance 2.1 mm |
|
Stage and Accessories |
|
|
OX.9500 |
Mechanical coaxial X-Y 120 x 78 mm stage |
|
OX.9506 |
Transparent glass insert with hole |
|
OX.9508 |
Metal insert with ø 12 mm hole |
|
OX.9509 |
Metal insert with ø 25 mm hole |
|
OX.9535 |
Metal insert for Petri dish 35 mm diameter |
|
OX.9599 |
Universal culture-dish holder for translation stage |
|
Filters |
|
|
OX.9700 |
Blue filter |
|
OX.9702 |
Green filter |
|
OX.9703 |
IR cut-off filter |
|
Photo Adapters |
|
|
OX.9810 |
CS/C mount with 1.0x objective |
|
OX.9833 |
C-mount adapter with 0.33x objective for Oxion microscopes and 1/3" cameras |
|
OX.9850 |
C-mount adapter with 0.5x objective for Oxion and Oxion Inverso microscopes and 1/2" cameras |
|
Miscellaneous |
|
|
AE.5120 |
Standard 23.2 mm diameter tube for Oxion photo port |
|
AE.5130 |
Universal SLR camera adapter with 2x projection lens for 23.2 mm tubes Need T2 adapter and AE.5120 |
|
AE.5025 |
T2 adapter for Nikon D digital SLR cameras |
|
AE.5040 |
T2 adapter for Canon EOS digital SLR cameras |
|
AE.3199 |
Glass fuses 3.15 A 250 V packed, per 10 pieces |
|
PB.5155 |
Microscope 76 x 26 mm. glass slides, ground edges, pack of 50 |
|
PB.5165 |
Cover glasses 18 x 18 mm, thickness 0.13 - 0.17 mm, 100 pieces |
|
PB.5168 |
Cover glasses 22 x 22 mm., thickness 0.13-0.17 mm., pack of 100 |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5255 |
Immersion oil n=1.482, 25ml. |
|
PB.5274 |
Isopropanol 99%, cleaning liquid, 200ml. |
|
PB.5275 |
Cleaning kit: lens cleaning fluid, lint free lens tissue, brush, air blower, cotton swabs |
Novex B-Plus Microscopes for Material Sciences
The B-plus 'material' microscope is nearly identical to the biological B-series microscopes but have a few differences like specific objectives without cover glass correction, both incident and translucent illumination, polarisation and compensation filters to examine materials (metal, plastics, minerals, asbestos, glass, wood, chemicals)
- Eyepieces DIN widefield eyepieces WF10x/22 mm
- Observation tubes Siedentopf binocular head with 30° inclined tubes, fully rotatable over 360°. Interpupillary distance adjustable between 48 and 75 mm. One eyepiece with diopter adjustment
- Nosepiece Revolving reversed nosepiece, ball-bearing mechanism, for 5 objectives
- Objectives Achromatic Plan M-IOS Infinity Corrected DIN-objectives 5x N.A. 0.12, 10x N.A. 0.25, 20x N.A. 0.40, 50x N.A. 0.70. All objectives without cover glass correction for material sciences applications. All optical parts are coated
- Stand Heavy alloy stand is enameled with a stove-hardened off-white and black lacquer. Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm per interval
- Stage Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder.
- Condenser Abbe condenser N.A. 1.25 in centrable holder, with iris diaphragm and filter holder with blue filter. Vertical adjustment by means of control knob
- Illumination Transmitted illumination Built-in halogen 6 volt 20 watt illuminator. Light intensity adjustable with thyristor control. Built-in 230 volt transformer Reflected Epi illumination unit Adjustable NeoLed illumination with external power supply. Push-pull type 90° rotatable polarizer and analyzer. Built-in condenser with field iris diaphragm
- Packaging Packed with dust cover in styrofoam case
|
Features |
||||
|
Models |
Binocular |
Trinocular |
Halogen |
NeoLED |
|
86.185 |
• |
|
• |
|
|
86.185-LED |
• |
|
|
• |
|
86.189 |
|
• |
• |
|
|
86.189-LED |
|
• |
|
• |
|
Accessories & Spare Parts |
|
|
86.573 |
HWF 15x/12 mm eyepiece |
|
86.574 |
HWF 10x/18 mm eyepiece with micrometer reticule |
|
86.527 |
Achromatic Plan M-IOS DIN 5x/0.12 objective. Working distance 26.1 mm |
|
86.529 |
Achromatic Plan M-IOS DIN 10x/0.25 objective. Working distance 20.20 mm |
|
86.531 |
Achromatic Plan M-IOS DIN 20x/0.40 objective. Working distance 8.80 mm |
|
86.535 |
Achromatic Plan M-IOS DIN 50x/0.70 objective. Working distance 3.68 mm |
|
86.538 |
Achromatic Plan M-IOS DIN 80x/0.80 objective. Working distance 1.25 mm |
|
86.539 |
Achromatic Plan M-IOS DIN 100x/0.90 objective. Working distance 0.40 mm |
|
86.851 |
Polarization set for models with halogen illumination The analyser fits under the viewing head and the polarizer attaches to the lamp house |
|
86.852 |
Polarization set for models with LED illumination The analyser fits under the viewing head and the polarizer attaches to the lamp house |
|
86.860 |
Köhler field diaphragm |
|
86.817 |
C-mount adapter for B series trino tube |
|
86.127 |
Adapter for reflex SLR camera. Require either 80.861 or AE.5049 and a T-2 adapter |
|
80.861 |
2.5x objective for 86.127 to be used with full frame digital camera |
|
AE.5049 |
1.9x objective for 86.127 to be used with APS-C digital camera |
|
AE.5040 |
T-2 adapter for Canon EOS SLR digital camera |
|
AE.5025 |
T-2 adapter for Nikon SLR digital camera |
|
86.889 |
Spare halogen 6 V 20 W bulb |
|
AE.5202 |
Blue filter ø32 mm |
|
AE.5203 |
Yellow filter ø32 mm |
|
AE.5204 |
Neutral density filter ø32 mm |
|
AE.5205 |
Green filter ø32 mm |
|
AE.5206 |
Blue filter, plexiglas ø32 mm |
|
AE.5227 |
Spare fuses 1A, pack of 10 |
|
AE.5155 |
Microscope glass slides 76 x 26 mm, edges grinded, 50 pcs |
|
AE.5245 |
Lens cleaning paper, 100 sheets |
|
AE.5255 |
Immersion oil n = 1.482, 25 ml |
Digital Microscopes
Euromex MacroZoom MZ 5000 (New)
The digital MacroZoom microscope is built around one 0.7 to 5x zoom objective and enables inspection of objects directly on an 11.6” LCD screen, -5° to 15° inclination. This kind of microscope is well-suited for inspection and quality control departments
The digital MacroZoom is equipped with a built-in full High Definition 1080p camera which can deliver up to 60 images per second and is connected either to the supplied and attached 11.6” screen or an external stand-alone HD screen
Highlights
- MonoZoom stand-alone digital microscope
- Zoom from 0.7x up to 5x
- 105 mm working distance:
- 170 mm working distance with 0.5x lens:
- Built-in incident LED ring light :
- Built-in 1080p 2 MP HD camera:
- HD 11.6 inch screen, -5° to 15°:
- Built-in mouse driven on-screen software:
- Conveniently build-in capture button:
- Removable 32 GB memory stick:
- Metal stand:
- 3 years warranty:
Technical Specification
Central Zoom Objective
The Digital MacroZoom MZ.5000 features a single zoom objective with a 0.7
to 5x zoom magnification. Zoom adjustment engravings on 1, 1.5, 2, 3, 4 and
5x. The working distance is 105 mm. Supplied with a 0.5x additional lens with
a working distance of 170 mm
Built-in Camera
Built-in HD 1080p high definition 2 MP CMOS high speed camera, 1920 x 1080
pixels, 60 fps with attached 11.6" screen. The standard field of view is 29.8 to
4.18 and with the 0.5x additional lens from 59 to 8.35. The camera has one
HDMI output that can be connected either to the attached screen or to an
external HD screen
Two other USB ports accept the supplied 32 GB USB memory stick (up to 128
GB) and a supplied wireless mouse that drives the built-in on-screen software.
The operator can also take and save images to the SD card by pressing on a
capture button at the right side of microscope body
Stand
The Central Zoom Objective with attached screen and LED ring light is
mounted on a rack and pinion system that sits on a large 320 x 260 mm metal
stand. Travel range is 225 mm
Illumination
A supplied 5,500 K LED ring light with 56 LED’s can be mounted under the
microscope body. The intensity is adjustable
Built-in Software
The built-in on-screen software is mouse driven and features functions
such as Capture image, Freeze image, Automatic white balance, Automatic
exposition, File manager, Grids and camera settings such as exposure time,
gain, saturation, contrast, sharpness, HDR. Measurement functions are also
available from the software such as line, area, angle. Images are saved in .jpg
format and videos are saved in .avi format. With the digital zoom function,
objects can be observed with a magnification up to 70 times
Package Content
Supplied with 32 GB memory stick, mouse, short HDMI cable for attached
screen, external 100-240 Vac / 12Vdc / 3 A power supply
Industrial Microscopes
Euromex M Series Microscopes
The Euromex M Series consists of metallurgical microscopes and polarization microscopes. The high quality of these microscopes - the robust metal construction and ball bearings - guarantee a long lifetime. The ergonomic design provides the ultimate useability and comfortable control which results in relaxed observation. There is a wide choice of system components available for the M Series such as binocular and trinocular heads, objectives, eyepieces, filters, etc.
Metallurgical microscopes are used for research of metal and plastic surfaces, also using polarized illumination.
Polarisation microscopes are used for mineralogy, petrography and crystallography. They are also suitable for orthoscopic and conoscopic research, research of polymers and research of other transparent materials with a double refractive index.
Technical Information
- Observation tube Bino- or trinocular. 30° tube, 360° rotatable, adjustable inter-pupillary distance 53-72 mm
- Stand Stable stand with coaxial course and fine adjustment knobs with graduated scale (interval 2.5&micr;m)
- Mechanical Stage Flat top type for the ME.2660 and ME.2665 171x140 mm with X-Y translation 80x52 mm, readable in 0.1 mm with vertical coaxial control and detachable specimen holder. Flat top type with ball bearing for the ME.2680 and ME.2685, 172x130 mm, with ø95 mm glass plate, X-Y translation 100x100 mm, with vertical coaxial controls. Round stage for the ME.2880, ME.2885, ME.2890 and ME.2895, ø150mm, 360° rotatable with ball bearing. Graduated with Vernier 0.1 mm readable and lock screw. Optional: mechanical stage AE.5179
- Protection Adjustable specimen protection to prevent damage of objective and specimen
- Eyepieces Paired DIN eyepieces KHWF 10x/20, also suitable for people with spectacles. The models ME.2880, ME.2885, ME.2890 and ME.2895 are supplied with eyepieces HWF 10X/18, HWF 10X/18 with cross hair and HWF 10x/18 with micrometer 10 mm in 100 parts.
- Revolving nosepiece For 5 objectives, with click-stop. The polarization microscopes and the ME.2680 and ME.2685 can hold 4 objectives
- Objectives The objectives of the metallurgic microscopes ME.2660 and ME.2665 are SMM semiplan infinity. The ME.2680 and ME.2685 have BD semiplan infinity bright field/dark field objectives. The microscopes ME.2880, ME.2885, ME.2890 and ME.2895 are equipped with SMPOL semiplan objectives.
- Abbe Condenser Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and blue filter in holder
- Packing Complete with dust cover in styrofoam case
Ordering information:
|
M Series models |
|||||
|
Model |
Tube |
DIN objectives |
Remarks |
||
|
ME.2660 |
Binocular KHWF 10x/20 eyepieces |
4x, 10x, 40x |
Metallurgic microscope with SMM semiplan infinity type objectives and coaxial illuminator. |
||
|
ME.2665 |
Trinocular KHWF 10x/20 eyepieces |
4x, 10x, 40x |
Metallurgic microscope with SMM semiplan infinity type objectives and coaxial illuminator. |
||
|
ME.2680 |
Binocular KHWF 10x/20 eyepieces |
4x, 10x, 40x |
Metallurgic microscope with BD semiplan infinity type bright field/dark field objectives and coaxial illuminator. |
||
|
ME.2685 |
Trinocular KHWF 10x/20 eyepieces |
4x, 10x, 40x |
Metallurgic microscope with BD semiplan infinity type bright field/dark field objectives and coaxial illuminator. |
||
|
ME.2880 |
Binocular Eyepieces HWF 10x/18, HWF 10x/18 with cross hair, HWF 10x/18 with micrometer 10/100 |
4x, 10x, S40x |
Polarization microscope with SMPOL semiplan stress-free DIN objectives |
||
|
ME.2885 |
Trinocular Eyepieces HWF 10x/18, HWF 10x/18 with cross hair, HWF 10x/18 with micrometer 10/100 |
4x, 10x, S40x |
Polarization microscope with SMPOL semiplan stress-free DIN objectives |
||
|
ME.2890 |
Binocular Eyepieces HWF 10x/18, HWF 10x/18 with cross hair, HWF 10x/18 with micrometer 10/100 |
4x, 10x, S40x |
Polarization microscope with SMPOL semiplan stress-free DIN objectives and coaxial illuminator. |
||
|
ME.2895 |
Trinocular Eyepieces HWF 10x/18, HWF 10x/18 with cross hair, HWF 10x/18 with micrometer 10/100 |
4x, 10x, S40x |
Polarization microscope with SMPOL semiplan stress-free DIN objectives and coaxial illuminator. |
||
|
SMM semiplan achromatic objectives, infinity type For ME.2660 and ME.2665,To be used without cover glass |
|||||
|
|
Objective |
Numerical Aperture |
Working Distance |
||
|
AE.3491 |
SMM 4x |
N.A. 0.10 |
20mm |
||
|
AE.3492 |
SMM 5x |
N.A. 0.10 |
20mm |
||
|
AE.3493 |
SMM 10x |
N.A. 0.25 |
9.4mm |
||
|
AE.3494 |
SMM 20x |
N.A. 0.40 |
5.2mm |
||
|
AE.3497 |
SMM 40x |
N.A. 0.65 |
0.81mm |
||
|
AE.3495 |
SMM 50x |
N.A. 0.70 |
0.36mm |
||
|
AE.3498 |
LWD SMM 50x |
N.A. 0.50 |
6.0mm |
||
|
AE.3499 |
SMM 60x |
N.A. 0.85 |
0.38mm |
||
|
AE.3500 |
SMM S100x |
N.A. 0.75 |
0.27mm |
||
|
BD semiplan bright field/dark field objectives, infinity type For ME.2680 and ME.2685 |
|||||
|
|
Objective |
Numerical Aperture |
Working Distance |
||
|
AE.3511 |
BD 4x |
N.A. 0.10 |
16mm |
||
|
AE.3512 |
BD 10x |
N.A. 0.25 |
7.4mm |
||
|
AE.3514 |
BD 20x |
N.A. 0.40 |
5.2mm |
||
|
AE.3517 |
BD 40x |
N.A. 0.65 |
0.8mm |
||
|
AE.3519 |
BD 60x |
N.A. 0.85 |
0.3mm |
||
|
SMPOL semiplan achromatic DIN objectives Stress-free for polarization microscopes |
|||||
|
|
Pol. Objective |
Numerical Aperture |
Working Distance |
||
|
AE.3471 |
SMPOL 4x |
N.A. 0.10 |
20mm |
||
|
AE.3473 |
SMPOL 10x |
N.A. 0.25 |
6.7mm |
||
|
AE.3474 |
SMPOL S20x |
N.A. 0.40 |
1.8mm |
||
|
AE.3477 |
SMPOL S40x |
N.A. 0.65 |
0.4mm |
||
|
AE.3479 |
SMPOL S60x |
N.A. 0.85 |
0.38mm |
||
|
AE.3480 |
SMPOL S100x oil |
N.A. 1.25 |
0.1mm |
||
|
Accessories |
|
|
AE.1105 |
Monocular 30° tube, 360° rotatable |
|
AE.1107 |
Binocular 30° tube, 360° rotatable |
|
AE.1108 |
Binocular tube similar to AE.1107, but with an un-reversed image. Only suitable for metallurgic microscopes |
|
AE.1109 |
Trinocular 30° tube, 360° rotatable |
|
AE.1115 |
Binocular tube similar to AE.1109, but with an un-reversed image. Only suitable for metallurgic microscopes |
|
AE.1143 |
Wide field eyepiece HWF 10x / 18 with micrometer scale 10 mm/100 |
|
AE.1145 |
Wide field eyepiece HWF 10x / 18 with cross hair |
|
AE.1146 |
Wide field eyepiece HWF 10x / 18 with graticule 10 x 10 mm divided into 400 squares |
|
AE.1179 |
Micrometer eyepiece 10x / 15 with screw thread micrometer, range 10 mm. One interval is 1 mm divided in 100 parts |
|
AE.1110 |
Stage micrometer 1 mm, divided into 100 parts, on 76 x 26 mm glass slide |
|
AE.1111 |
Stage micrometer 2 mm, divided into 200 parts, on 76 x 26 mm glass slide |
|
AE.3600 |
Mc Crown objective 10x N.A. 0.25 |
|
AE.3632 |
Dark field diaphragm disc which fits in the filter holder, for objectives 4x - 40x |
|
AE.3640 |
Quartz-6-wig in holder for polarization microscopes ME.2880, ME.2885, ME.2890 and ME.2895 |
|
AE.5179 |
Attachable mechanical stage for polarization microscopes ME.2880, ME.2885, ME.2890, ME.2895. With the low mounted control knobs the stage can be rotated without touching the objectives. X-Y movement 25 mm. Vernier scale 0.1 mm |
|
AE.3690 |
Cabinet with handle and lock for ME.2880, ME.2885, |
|
AE.1106 |
Vertical tube. Exchangeable with the binocular head of the M-series. To be used with camera-adapters AE.5127, AE.5129 and C-mount adapters |
|
AE.5046 |
Photo eyepiece PH 3.3x with micrometer 10/100 mm |
|
AE.5061 |
Photo eyepiece PH 2.5x/16 |
|
AE.5062 |
Photo eyepiece PH 5.0x/9.5 |
|
AE.5127 |
Adapter for SLR camera with T2 mount. To be used with a photo eyepiece |
|
AE.5129 |
SLR camera-adapter with built-in optics and set up eyepiece with image mask. With T2 mount to be used with a photo eyepiece |
|
AE.5017 |
C-mount adapter with built-in optics for CCD camera |
|
AE.5059 |
Universal C-mount adapter with photo eyepiece 0.45x, optional with micrometer |
|
AE.5063 |
Universal C-mount adapter with photo eyepiece 0.7x, optional with micrometer |
|
AE.3683 |
Fuses 250 Volts/1A. Packed per 10 piece |
|
SL.3678 |
Spare halogen bulb 6 Volts 30 Watt for F-series |
|
SL.3679 |
Spare halogen bulb 12 Volts 50 Watt for G-series |
Euromex BE Series
The microscopes of the BE series are specifically developed for professional users who require high resolving powers and long working distances (160/115 mm).
- Oculars Paired interchangeable wide field eyepieces WF10x/20 with eye shades
- Objective Interchangeable objectives 1x and 2x. Working distances 160 and 115 mm, field of view 20 and 10 mm, respectively. The dovetailed objectives can be easily slid onto the microscope head.
- Stand The base is approximately 7 kg and is provided with a 300 mm long rod and a horizontal hinged arm, length 255 mm. Focus control by means of knobs on both sides. Maximum object height about 200 mm.
- Lighting Incident 6 volt 7,2 watt illuminator with two-lens condenser. The lamp can be fixed behind the tubes or be mounted adjustable beside the binocular head. The base contains a transformer and an on/off switch. Adapted for 220 volt operation.
- BE-50 LED 45º binocular head with one diopter adjustment. Adjustable distance between the eyepieces 51 and 75 mm. Incident 1W LED adjustable intensity illumination is built in to the stand. The BE.1802 has a 0.5x fixed magnification objective, magnification 5x, field of view 10mm, working distance 250mm. The BE.1812 has a 1x fixed magnification objective magnification 10x, field of view 20mm, working distance 230mm Other magnifications available with optional eyepieces
- Packaging Complete with dust cover in styrofoam case
|
Models |
|
|
BE.1802 |
Euromex stereomicroscope BE50-LED with 45° binocular tube and 0.5x objective working distances 250 mm 1W LED illumination |
|
BE.1812 |
Euromex stereomicroscope BE50-LED with 45° binocular tube and 1x objective working distances 230 mm 1W LED illumination |
|
BE.4301 |
Euromex stereo head BM 1x/2x with WF10x |
|
BE.4801 |
Euromex stereo head BMK 1x/2x with WF10x |
|
Accessories |
|
|
BE.6005 |
Pair HWF 5x/22mm eyepieces |
|
BE.6010 |
Pair HWF 10x/20mm eyepieces |
|
BE.6015 |
Pair HWF 15x/12mm eyepieces |
|
BE.6020 |
Pair HWF 20x/10mm eyepieces |
|
BE.6110 |
HWF 10x/20mm eyepiece with micrometer |
|
BE.6099 |
Pair of eyeshades for BE-50 LED |
|
BE.7405 |
0.5x objective for BE-50 LED |
|
BE.7410 |
1x objective for BE-50 LED |
|
AE.1839 |
Pair Super wide field SWF 10 x / 20 eyepieces with 10 mm / 100 micrometer and crosshair reticle |
|
AE.1112 |
Object micrometer 50 mm divided in 500 parts on glass slide 76 x 26 mm |
|
AE.1878 |
Dark field attachment suitable for all stands with transmitted illumination |
|
AE.1879 |
Iris diaphragm with adapter, fits on AE.1878 |
|
AE.1881 |
Transparent glass object plate 94 mm |
|
AE.1960 |
Round positioning table, tabletop can be positioned in all directions, 20 cm |
|
AE.5419 |
Plexiglas transparent frosted stage plate, 60 mm diameter |
|
AE.5424 |
Black and white Plexiglas stage plate 60 mm diameter |
|
AE.5427 |
Wide angle eyepieces WF 10x |
|
AE.5428 |
Achromatic 3,5x objective pair for BMK stereo microscopes |
|
AE.5432 |
Achromatic 3,5x objective pair for BM stereo microscopes |
|
AE.5435 |
Wide angle eyepieces WF 5x/22 |
|
AE.5436 |
Wide angle eyepiece micrometer WF10x/20 with integrated micrometer plate 10 mm divided into 100 parts |
|
AE.5439 |
Eyeshades, for all eyepieces |
|
AE.5950 |
Wooden cabinet with handle and lock for BE stereo microscopes |
|
LE.5213 |
Single arm light guide, self-sustaining "goose-neck" type glass fibre light guide, diameter 4 mm, length 50 cm |
|
LE.5214 |
Double arm light guide, self-sustaining "goose-neck" type glass fibre light guide diameter 4 mm, length 50 cm for LE.5210 and LE.5211 cold light sources |
|
LE.5215 |
Triple arm light guide self-sustaining "goose-neck" glass fibre light guide diameter 4 mm, length 50 cm for LE.5210 and LE.5211 cold light sources |
|
LE.5216 |
Single arm flexible glass fibre light guide, diameter 4 mm, length 100 cm |
|
LE.5217 |
Triple arm flexible glass fibre light guide, diameter 4 mm, length 100 cm |
|
LE.5218 |
Single arm flexible glass fibre light guide, diameter 8 mm, length 100 cm |
|
LE.5219 |
Double arm light guide self-sustaining "goose-neck" glass fibre light guide diameter 4 mm, length 70 cm |
|
LE.5220 |
Single arm flexible glass fibre light guide, diameter 8 mm, length 200 cm |
|
LE.5222 |
Focusing set for condenser lens LE.5224 and filters. Suitable for the self-sustaining and flexible light guides |
|
LE.5223 |
Set of red, blue and green colour filters, fitting the LE.5222 and LE.5228 for light guides |
|
LE.5224 |
Aspherical condenser lens, fitting the LE.5222 and LE.5228 |
|
LE.5228 |
Focusing set like the LE.5222 but with iris diaphragm so the light intensity and can be adjusted without influencing the colour temperature |
|
LE.5229 |
Polarization filter to reduce reflections for mounting in the LE.5222 |
|
LE.5231 |
Conversion filter KB12/80B for photos with a daylight film |
|
LE.5235 |
Double arm flexible glass fibre light guide, diameter 4 mm, length 100 cm |
|
PB.5245 |
Lens cleaning paper, 100 sheets |
|
PB.5274 |
Isopropanol 99%, 200 ml cleaning liquid |
|
SL.5198 |
Halogen bulb with reflector, 12V, 20 Watt for LE.5194 |
|
SL.5201 |
Lamp 6.5 Volt 20 Watt for LE.5200 |
|
SL.5219 |
Halogen bulb with cold mirror, 12 V, 100 Watt for LE.5210 |
SL.5230 |
Longlife Halogen bulb, 12 V, 100 Watt for LE.5210 |
SL.5240 |
Longlife halogen lamp, 15 V, 150 Watt for LE.5211 |
Euromex E Series Stereo and Z Series Stereo Zoom Microscopes
Stereo microscopes are often used in science and industry for research, inspection, manufacturing or modification of extremely small objects. Due to its high contrast and wide field of view, stereo microscopes are perfectly suitable for such applications.
The E Series and Z Series microscopes are used in a wide variety of applications for medical doctors, biologists, dental technicians and renovators. In the electronics, fine mechanical, galvanic, graphical and food industry these high quality microscope series are used for research and quality control due to their brilliant optical performance.
The E Series and Z Series microscopes can be configured in accordance with customer specifications due to its modular components. For each application it is possible to choose the right stereo head and stand and with the wide choice of supplementary objectives and eyepieces the desired magnifications can simply be constructed. The robust metal frame of these microscopes guarantees a long life time.
Optical System
The super wide field eyepieces 10x/23 together with the highly light transmitting objectives provide an outstanding image clarity with a large field of view and high contrast. This results in comfortable viewing even after long hours of observation.
The E Series has two pairs of objectives mounted in a revolving nosepiece. The left tube has diopter adjustment.
The magnification of the zoom objective of the Z Series can smoothly be adjusted through easy to operate ergonomic control knobs located on both sides of the microscope. Both tubes have diopter adjustment.
Illumination
When using the microscope for longer periods it is essential to use a proper illuminator. One can choose to use a cold light illumination with several glass fibre light conductors, neon-fluorescence illumination or a LED ring illuminator. Euromex has a specific brochure with a detailed overview of the different types of illuminators.
Ordering information:
|
Stereo heads E Series 45º tube, with 2 pair of objectives in revolving nosepiece |
||||||||||
|
EE.1521 - binocular |
EE.1522 – binocular EE.1552 - trinocular |
EE.1523 - binocular EE.1553 - trinocular |
EE.1524 – binocular EE.1554 - trinocular |
|||||||
|
Objectives: 0.5x and 1x Magnification: 5x and 10x Field number: 46 and 23 mm. Free working distance: 200 mm. Specifically for stands ST.1715, ST.1720, ST.1770, ST.1780, ST.1785 |
Objectives: 1x and 2x Magnification: 10x and 20x Field number: 23 and 11.5 mm. Free working distance: 110 mm. |
Objectives: 1x and 3x Magnification: 10x and 30x Field number: 23 and 7.7 mm. Free working distance: 80 mm. |
Objectives: 2x and 4x Magnification: 20x and 40x Field number: 11.5 and 5.7 mm. Free working distance: 63 mm. |
|||||||
|
Stereo heads Z Series with zoom objective |
||||||||||
|
ZE.1624 – binocular* ZE.1654 – trinocular* |
ZE.1670 – binocular ZE.1671 – trinocular |
ZE.1626 - binocular |
||||||||
|
Tube: 45º Zoom objective: 0.7x – 4.5x Magnification: 7x – 45x Field number: 32 – 5.1 mm. Free working distance: 93 mm. |
Tube: 45º Zoom objective: 1x – 7x Magnification: 10x – 70x Field number: 23 – 3.29 mm. Free working distance: 104 mm. ZE.1671: when using photo tube the image remains visible in both eyepieces |
Similar to ZE.1624 but with 60º tube, suitable to mount on instruments or machines. Free working distance: 93 mm. |
||||||||
|
ZE.1629 - binocular |
ZE.1657 – trinocular |
ZE.1659 - trinocular |
||||||||
|
Similar to ZE.1624 but with 90º tube, suitable to mount on instruments or machines. Free working distance: 110 mm. |
Similar to ZE.1654 but when using photo tube the image remains visible in both eyepieces. Free working distance: 104 mm. |
Similar to ZE.1657 but with Zoom objective: 0.4x – 2.5x Magnification: 4x – 25x Free working distance: 185 mm. With opening for flexible light conductor for semi coaxial illumination |
||||||||
* For click-stop versions add suffix D to article number
|
Stands without illumination |
||||||||||
|
ST.1710 |
ST.1715 |
ST.1717 |
||||||||
|
210 mm. stand post 20 mm. dia. Black/white object plate 2 object clamps Holder ST.1790 for height adjustment Size: 240L x 150W x 250H mm. |
Similar to ST.1710 but with Holder ST.1792 for stereo head with moveable lamp holder 250 mm. long post Size: 240L x 150W x 290H mm. |
Similar to ST.1710 but with extra large base and a 250 mm. long post Size: 320L x 250W x 290H mm. |
||||||||
|
Stand with illumination |
||||||||||
|
ST.1740 |
Base plate 60 mm. height with telescopic arm Black/white and transparent object plate The height adjustable holder is mounted to the telescopic arm Size: 240H x 160W x 240-290H mm. Adjustable halogen illumination 10 Watt Incident illumination with blue filter, Transmitted illumination with diffuse filter. The illumination can be controlled separately and simultaneously Built-in transformer 230 Volts Not for stereo head EE.1521 |
|||||||||
|
Stands with darkfield illumination |
||||||||||
|
ST.1750 stand, perfectly suitable to observe gems |
ST.1760 stand, perfectly suitable to observe gems, contact lenses and other objects with poor contrast |
|||||||||
|
Round base plate, 260 mm. dia, Tilted adjustable stand With moveable object holder AE.5446 The height adjustable holder is mounted to the arm Size: 260L x 260W x 300H mm. Illumination: darkfield 230 Volts, 40 Watt halogen, mounted in the stage Light intensity can be adjusted with the iris diaphragm Not for stereo head EE.1521 |
Stand post 210 mm. x 20 mm. dia. With moveable object holder AE.5446 Holder ST.1790 for height adjustment Size: 240L x 150W x 260H mm. Illumination: transmitted illumination through fibre optic conductor, which is connected to the 100 Watt cold-light source LE.5210. Attachable darkfield set up AE.1878 An additional fibre light conductor can be supplied on request Not for stereo heads EE.1521 or ZE.1659
|
|||||||||
|
Articulating arm stands for table or wall mounting |
||||||||||
|
ST.1780 for table mounting |
ST.1785 for wall mounting |
|||||||||
|
Stand post 560 mm, x 28 mm with console for table mounting Holder ST.1790 for height adjustment Stand Size 1100L x 100W x 560H mm |
Similar to ST.1780 but without stand post With console for wall mounting
|
|||||||||
|
Holders for stereo heads with height adjustment to attach on instruments or machines |
||||||||||
|
ST.1790 |
ST.1792 |
ST.1794 |
ST.1796 |
ST.1798 |
||||||
|
Connection opening for base pillar 20 mm. dia. Internal diameter ring holder 84 mm. Friction is adjustable |
Similar to ST.1790 but with moveable holder for illuminator |
Similar to ST.1792 but with hinge for movement in all directions |
Similar to ST.1790 but with coaxial coarse and fine adjustment with scale |
Similar to ST.1794 but with coaxial coarse and fine adjustment with scale |
||||||
Optional Accessories:
|
Super wide field eyepieces, per pair |
|
|
AE.1835 |
SWF 5x / field number 26 |
|
AE.1836 |
SWF 10x/23 |
|
AE.1834 |
SWF 12.5x / 20 |
|
AE.1837 |
SWF 15x / 16 |
|
AE.1838 |
SWF 20x / 11.5 |
|
AE.1840 |
SWF 30x / 7.5 |
|
AE.5439 |
Eyeshades for all eyepieces |
|
AE.5425 |
Eyeshades for spectacle wearers, for all eyepieces |
|
SWF measuring eyepieces with adjustable eye lens, per piece |
|
|
AE.1839 |
SWF 10x/21 with micrometer 10 mm. / 100 and cross hair |
|
AE.1841 |
SWF 10x/21 with reticule 10 x 10 mm. in 400 squares |
|
AE.1842 |
SWF 10x/21 with image masks for photography |
|
Object micrometers for calibration of measuring eyepieces |
|
|
AE.1110 |
Object micrometer 1 mm. divided into 100 parts, printed on glass plate 76 x 26 mm. |
|
AE.1111 |
Object micrometer 2 mm. divided into 200 parts, printed on glass plate 76 x 26 mm. |
|
Supplementary objectives for stereo microscopes with 1x/2x and 1x/3x objectives |
|
|
AE.1846 |
Objective 0.5x, W.D. 100 mm. |
|
AE.1847 |
Objective 0.75x, W.D. 63 mm. |
|
AE.1848 |
Objective 1.5x, W.D. 35 mm. |
|
AE.1849 |
Objective 2.0x, W.D. 21 mm. |
|
Supplementary objectives for stereo microscopes with 2x/4x objectives |
|
|
AE.1851 |
Objective 0.5x, W.D. 100 mm. |
|
AE.1852 |
Objective 0.75x, W.D. 63 mm. |
|
AE.1853 |
Objective 1.5x, W.D. 35 mm. |
|
AE.1854 |
Objective 2.0x, W.D. 21 mm. |
|
Supplementary objectives for stereo microscopes |
|
|
AE.1850 |
Objective 0.7x, W.D. 300 mm. for EE.1521, W.D. 233 mm. for ZE.1659 |
|
AE.1822 |
Objective 0.57x, W.D. 300 mm. for ZE.1659 |
|
Supplementary objectives for zoom stereo microscopes with tube 45º or 60º |
|
|
AE.1855 |
Objective 0.3x, W.D. 250 mm., for stands ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1870 |
Objective 0.44x, W.D. 180 mm., for stands ST.1715, ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1856 |
Objective 0.5x, W.D. 150 mm., maximum object height for stand ST.1740 is 15 mm. |
|
AE.1857 |
Objective 0.75x, W.D. 97 mm. |
|
AE.1858 |
Objective 1.5x, W.D. 50 mm. |
|
AE.1859 |
Objective 2.0x, W.D. 34 mm. |
|
Supplementary objectives for zoom stereo microscopes with straight tube 90º |
|
|
AE.1805 |
Objective 0.3x, W.D. 330 mm., for stands ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1806 |
Objective 0.5x, W.D. 198 mm., for stands ST.1715, ST.1720, ST.1770, ST.1780 and ST.1785 |
|
AE.1807 |
Objective 0.75x, W.D. 125 mm. |
|
AE.1808 |
Objective 1.5x, W.D. 62 mm. |
|
AE.1809 |
Objective 2.0x, W.D. 42 mm. |
|
Supplementary objectives for zoom stereo microscope ZE.1657 |
|
|
AE.1816 |
Objective 0.35x, W.D. 250 mm. |
|
AE.1817 |
Objective 0.5x, W.D. 174 mm. |
|
AE.1818 |
Objective 1.5x, W.D. 57 mm. |
|
Safety glasses, to be fitted below the objectives |
|
|
AE.1843 |
Safety glass for E Series with objectives 1x/2x or 1x/3x |
|
AE.1844 |
Safety glass for E Series with objectives 2x/4x |
|
AE.1845 |
Safety glass for Zoom stereo microscopes except ZE.1659 |
|
AE.1825 |
Safety glass for EE.1521, ZE.1659. Can not be used in combination with supplementary objectives |
|
SMD attachment |
|
|
AE.1940 |
Rotatable attachment for inspection of PCB, etc. Soldered components can be inspected both vertically and angled. Built-in lens 0.3x for angled and 0.44x for vertical observation. Working distance 110 mm. and 80 mm. To be mounted below the objectives of the zoom heads ZE.1624 and ZE.1654. Only for ST.1720 and ST.1770 |
|
Darkfield |
|
|
AE.1878 |
Darkfield attachment suitable for all stands with transmitted illumination |
|
AE.1879 |
Iris diaphragm with adaptor, fits on AE.1878 |
|
AE.1871 |
Object stage for darkfield attachment. With using an objective slide it is possible to observe a transparent object like a contact lens or gem. Only for stand ST.1760 |
|
Polarisation |
|
|
AE.1890 |
Analyser in rotatable mount. For stereo microscopes except ZE.1659 |
|
AE.1891 |
Polariser in holder. For stands ST.1740 and ST.1760 |
|
AE.1892 |
Retardation filter, gypsum red 1st. order, fits on polariser AE.1891 |
|
Mechanical Stages |
|
|
AE.1876 |
Attachable mechanical stage with ball bearings. The top plate (145 x 115 mm.) can be moved with horizontal coaxial control knobs. With scale and vernier. Range 75 x 50 mm. For stands ST.1710, ST.1715 and ST.1740 |
|
AE.1896 |
Similar to ST.1876 but centred glass plate for transmitted illumination. For stands ST.1740 and ST.1760 |
|
AE.1877 |
Attachable top plate mechanical stage 170 x 155 mm. The top plate has ball bearings and can easily be moved by hand. X-Y translation 100 x 105 mm. Suitable for stands ST.1710, ST.1715 and ST.1740 |
|
AE.1950 |
Large SMD mechanical stage with ball bearings, size 390 x 390 mm. X-Y translation 360 x 260 mm. Suitable for stands ST.1720, ST.1770, ST.1780 and ST.1785 |
|
Object Stage |
|
|
AE.1884 |
Round object stage, high model, with diffuse glass filter. Exchangeable with darkfield set up of stand ST.1760 |
|
AE.1885 |
Round object stage, high model, with diffuse glass filter. Exchangeable with object plate of stand ST.1740 |
|
Object Plate, 94 mm. diameter |
|
|
AE.1880 |
Plexiglass object plate, transparent frosted |
|
AE.1881 |
Transparent glass object plate |
|
AE.1882 |
Black/white plastic object plate |
|
Filters, 40 mm. diameter |
|
|
AE.1897 |
Diffuse glass filter |
|
AE.1898 |
Blue frosted filter |
|
Object Clamp |
|
|
AE.5446 |
Moveable object clamp for gems, etc. Exchangeable with object clamp |
|
Cabinets for Microscopes |
|
|
AE.1886 |
Cabinet with handle and lock for stands ST.1710, ST.1715 and ST.1740 |
|
AE.1887 |
Cabinet with handle and lock for stand ST.1750 |
|
Spare Bulbs and Fuses |
|
|
SL.1868 |
Spare 30 Watt bulb for transmitted illumination of stand ST.1750 |
|
SL.1869 |
Spare halogen bulb 6 Volts 10 Watt for illuminator of stand ST.1740 |
|
AE.3683 |
Glass fuses for stand ST.1740, pack of 10 |
|
Accessories for Photography and Video Cameras |
|
|
AE.5046 |
Photo eyepiece PH 3.3x with micrometer 10/100 mm/ |
|
AE.5061 |
Photo eyepiece PH 2.5x/16 |
|
AE.5062 |
Photo eyepiece PH 5.0x/9.5 |
|
AE.5127 |
Adaptor for SLR camera with T2 mount. To be used with a photo eyepiece |
|
AE.5129 |
SLR camera-adaptor with built-in optics and set up eyepiece with image mask. With T2 mount to be used with a photo eyepiece |
|
AE.5018 |
C-mount adaptor with built-in optics for CCD camera |
|
AE.5006 |
C-mount adaptor with lens 0.6x for models ZE.1657 and ZE.1659, optional with micrometer |
|
AE.5059 |
Universal C-mount adaptor with photo eyepiece 0.45x, optional with micrometer |
|
AE.5063 |
Universal C-mount adaptor with photo eyepiece 0.7x, optional with micrometer |
NOTE: On request Euromex supply T2-adaptors for AE.5127 and AE.5129 and adaptors for digital photo cameras. Please enquire for an overview of Euromex’s camera and illuminator range.
Euromex iScope® Microscopes for Material Science
The iScope® microscopes are supplied with specific attachments that turn the iScope® into a state-of-the art material science microscope suitable for various applications.
Highlights
- EWF 10x/22 mm and EWF10x/20 mm eyepieces
- Binocular and trinocular models
- Reversed quintuple revolving nosepiece:
- Infinity corrected IOS objectives for material observation and polarisation:
- 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage:
- ø 160 mm rotatable round stage for polarisation models:
- Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with external 100-240V power supply:
- Epi-NeoLED illumination for metallurgical models:
- Epi-illumination 50W for polarisation models:
- iCare sensor for energy saving:
- CSS - Cable Storage System :
- 10 years warranty:
Technical Specification
Eyepieces
Metallurgical models are supplied with extended EWF
10x/20 mm (ø 23.2 mm tube) eyepieces. Polarisation models
are supplied with a pair of EWF 10x/22 mm (ø 30 mm tube)
eyepieces, one eyepiece with cross hair and one eyepiece
with a cross hair and micrometer reticle
Heads
Binocular and trinocular Siedentopf type heads with
30° inclined tubes. Interpupillary distance from 48 to 76 mm.
Two ±5 diopter adjustments. A unique rotating system allows
the ergonomic positioning of both tubes in a high (431 mm)
and in a low position (397 mm).
The trinocular head 23.2 mm tube fits optional photo
C-mount adapters with built-in 0.33x or 0.5x objective
Objectives
| Plan PLMi IOS(1) | 5x/0.10 | 10x/0.25 | 20x/0.40 | S50x/0.65 | S80x/0.90(4) | S100x/0.80(4) | |
| Plan PLPOLi IOS(2) | 4x/0.10 | 10x/0.25 | 20x/0.40(4) | S40x/0.65 | S60x/0.85(4) | S100x/1.25(4) | Plan PLi IOS(3) | 4x/0.10 | 10x/0.25 | 20x/0.40(4) | PLPHi S40x/0.65 | S80x/0.85(4) | S100x/1.25(4) |
(1)Plan PLMi infinity corrected objectives for material observation
(2)Plan PLPOLi strain free infinity corrected objectives for polarisation
(3)Plan PLi infinity corrected objectives for asbestos research microscopes the S40x which is a plan phase contrast PLPHi infinity corrected objective
(4)Optional objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Stages
The iScope® is supplied with a 216 x 150 mm rackless stage equipped with double slide
holder and integrated 79 x 52 mm mechanical stage.
The iScope® rackless stage has no protruding parts,
enables more smooth movements and is safer working
ø 160 mm round stage for polarisation models,
360° rotatable with Vernier and two object clamps.
An optional 30 x 40 mm X-Y mechanical stage is also available
Standard Condenser
Standard height adjustable Abbe N.A. 1.25 condenser with
iris diaphragm. Suitable for slider with dark field stop for
magnifications up to maximum 400x.
Optional height adjustable Abbe N.A. 0.9/1.25
swing-out condenser with iris diaphragm
Condenser for polarisation microscopes
Height adjustable Abbe N.A. 1.25 condenser with
iris diaphragm and 360° rotatable polariser
Focusing
Coaxial coarse and fine adjustments, 200 graduations, 1 µm
per graduation, 200 µm per rotation, total travel approximately
24 mm. Supplied with an adjustable rack stop to prevent
damage to sample and objectives. The coarse adjustments
are equipped with friction control
Illumination
3W adjustable Köhler NeoLED™ diascopic illumination with
internal 100-240 V power supply
The innovative NeoLED™ design offer larger apertures,
allowing the optical system of the iScope® microscope to
produce images at higher resolutions, very close to the
theoretical diffraction limit of the optics. Other benefits of the
NeoLED™ is the low energy consumption, no heating and a
long operating lifetime
The Köhler illumination on models with IOS plan and plan
phase infinity corrected system provides high contrast and
a maximum achievable resolving power of the optics. Also
available for other models as option
Reflected Illumination for Polarisation Models
Polarisation models are equipped with a 50W 12V halogen
epi-illumination and external 100-240V power supply.
Supplied with 360° rotatable polarisation filter, analyzer, Bertrand
lens, 1λ first red plate, 1/4λ retardation plate, a quartz wedge,
sliders with green/blue and whiter/polariser filter
Reflected Illumination for Metallurgical Models
Metallurgical models are equipped with a reflected NeoLED™
illumination and external 100-240V power supply. Supplied
with a 0-90° polarisation filter in slider, simple dark field stop,
white, green, blue and yellow filters
iCare Sensor
The unique iCare Sensor is present on all iScope® microsocopes and has been developed to avoid unnecessary
loss of energy. The illumination of the microscope
automatically switches off shortly after microscopists
step away from their position
Cable Storage System
iScope® allows users to easily insert the power cable into
the backside of the instrument, which enables easy storage.
The integrated carrying grip at the back of the microscope
ensures safe transportation of the microscope
Ordering information:
|
iScope® Models: |
||||||
|
|
Head |
Max Obj |
EWF |
Plan Mettalurgical IOS obj |
Plan Polarising IOS obj |
Reflective Illumination |
|
IS.1052-PLPOLi |
Binocular |
4 |
10x/22mm, 10x/20mm |
|
• |
|
|
IS.1053-PLPOLi |
Trinocular |
4 |
10x/22mm, 10x/20mm |
|
• |
|
|
IS.1052-PLPOLRi |
Binocular |
4 |
10x/22mm, 10x/20mm |
|
• |
• |
|
IS.1053-PLPOLRi |
Trinocular |
4 |
10x/22mm, 10x/20mm |
|
• |
• |
|
IS.1052-PLMi |
Binocular |
5 |
10x/22mm, 10x/20mm |
• |
|
|
|
IS.1053-PLMi |
Trinocular |
5 |
10x/22mm, 10x/20mm |
• |
|
|
|
Accessories & Spare Parts |
|
|
Eyepieces |
|
|
IS.6010 |
EWF 10x/20 mm eyepiece ø 23.2mm tube |
|
IS.6010-P |
EWF 10x/20 mm eyepiece with pointer |
|
IS.6010-CM |
EWF 10x/20 mm eyepiece with 10/100 micrometer and crosshair |
|
IS.6015 |
EWF 15x/16 mm eyepiece ø 23.2mm tube |
|
IS.6020 |
EWF 20x/12 mm eyepiece ø 23.2mm tube |
|
IS.6210 |
EWF 10x/22 mm eyepiece ø 30mm tube |
|
IS.6210-P |
EWF 10x/22 mm eyepiece with pointer |
|
IS.6210-CM |
EWF 10x/22 mm eyepiece with 10/100 micrometer and crosshair |
|
IS.6015 |
EWF 15x/16 mm eyepiece ø 30mm tube |
|
IS.6220 |
EWF 20x/12 mm eyepiece ø 30mm tube |
|
IS.6099 |
Pair of eye cups for iScope® finity models |
|
IS.6299 |
Pair of eye cups for iScope® infinity models |
|
Objectives IOS (infinity corrected) |
|
|
IS.7904 |
Plan PLPOLi(1) 4x/0.12 IOS objective |
|
IS.7910 |
Plan PLPOLi(1) 10x/0.25 IOS objective |
|
IS.7920 |
Plan PLPOLi(1) 20x/0.40 IOS objective |
|
IS.7940 |
Plan PLPOLi(1) S40x/0.65 IOS objective |
|
IS.7960 |
Plan PLPOLi(1) S60x/0.85 IOS objective |
|
IS.7900 |
Plan PLPOLi(1) S100x/1.25 IOS objective |
|
IS.8105 |
Plan PLMi(2) 5x/0.12 IOS objective |
|
IS.8110 |
Plan PLMi(2) 10x/0.25 IOS objective |
|
IS.8120 |
Plan PLMi(2) 20x/0.40 IOS objective |
|
IS.8150 |
Plan PLMi(2) S50x/0.70 IOS objective |
|
IS.8180 |
Plan PLMi(2) S80x/0.90 IOS objective |
|
IS.8100 |
Plan PLMi(2) S100x/0.80 IOS objective |
|
(1) Strain free (2) No cover glass correction |
|
|
Condensers |
|
|
IS.9102 |
Standard Abbe condenser 1.25 NA with slot for dark field and phase contrast sliders |
|
IS.9105 |
Swing-out 0.9/1.25 NA condenser |
|
IS.9124 |
Zernike phase contrast set with PLPH 10/20/40/100x objectives and rotating phase contrast condenser with bright and dark field position* |
|
IS.9127 |
Zernike phase contrast set with With PLPHi 10/20/40/100x IOS objectives and rotating phase contrast condenser with bright and dark field position* |
|
IS.9148 |
Telescope for phase contrast ø 30mm tube |
|
IS.9149 |
Telescope for phase contrast ø 23.2mm tube |
|
IS.9150 |
Cardioid dark field condenser with integrated 5W LED light source and external 100-240V mains adapter |
|
IS.9160 |
Phase contrast slider set with PLPH 10/40x objectives and slider* |
|
IS.9161 |
Phase contrast slider set slider with PLPH 20/100x objectives and slider* |
|
IS.9162 |
Phase contrast slider set slider with PLPH 10/40x IOS objectives and slider* |
|
IS.9163 |
Phase contrast slider set slider with PLPH 20/100x IOS objectives and slider* |
|
IS.9170 |
Slider with dark field stop |
|
*With green opaque filter |
|
|
Filters |
|
|
IS.9600 |
Polarization for lamp house (45mm) |
|
IS.9700 |
Blue opaque for lamp house (45mm) |
|
IS.9702 |
Green opaque for lamp house (45mm) |
|
IS.9704 |
Yellow opaque for lamp house (45mm) |
|
IS.9710 |
White opaque for lamp house (45mm) |
|
Miscelleneous |
|
|
IS.5700 |
|
