Offering a full range of biological microscopes, stereo microscopes (binocular and trinocular), Microscopes for Industry as well as Microscopes for education and the amateur hobbyist also accessories including refractometers, spectrometers, polarimeters slides, slideset, magnifiers and more

Metascientific.com offers a wide array of microscope accessories to help adapt or customise your microscope to meet your particular needs.

In addition to accessories for microscopes we also supply refractometers, polarimeters, magnifiers and other general accessories such as dissection instruments and slides.

Refractometers & Polarimeters

Refractometers are used for the identification of substances or to measure concentrations in fluids. Because the refractive index (R.I.) of a solution is proportional to the concentration it is easy to identify the substance or to measure the purity and concentrations of solutions. The Euromex refractometers are calibrated at 20º Celsius.Most refractometers are equipped with Automatic Temperature Compensation (ATC). (See Refractometer Chart)



Hand & Digital Refractometers

Euromex Digital Hand Refractometer

Digital hand refractometers The latest technology for measuring refractive indices.The sample is illuminated by a LED light source while an optical sensor measures the percentage of reflection from the sample. With the refractive index the device calculates the concentration. With ATC.

Euromex Hand Refractometer

Traditional hand refractometers Only a few drops of the liquid are necessary to read the refractive index straight from the built-in scale. Most of Euromex refractometers are equipped with an ATC (Automatic Temperature Compensation). Euromex refractometers can be supplied with specific scales.



Euromex gemological hand/table refractometer (RF.5381)



Euromex Digital Refractometer for Gemology

This table refractometer has been specifically designed for determination of precious stones with an nD range between 1.30 and 1.81. Built in monochromatic filter 590 nm, adjustable eye lens with removable polarizing filter to observe double refraction (birfingence)



Article no RF.5381, RF.5382.The RF.5382 also comes with a polarisation filter and light source



Refractometer Accessories

RF.5295

Test plate 78.8 Brix for calibration of RF.5190, RF.5282 and RF.5292

RF.5384

5 ml immersion fluid nD 1,79 for RF.5381 and RF.5382

LE.5209

Cold light source 20W ,12V with glass fibre

SL.5208

Spare halogen bulb

Abbe Table Refractometer

Abbe refractometers are more accurate with an extended scale to measure concentrations of sugar and refractive indices. Capable of measuring all kinds of concentrations and identifying several types of substances.



Abbe Table Refractometer
The Abbe refractometer should be used with a glass fibre cold light illuminator like the Euromex LE.5219.Delivered with carrying case, thermometer 0-50º Celsius, calibration plate and adjustment tool Article no 98.490



Refractometer Accessories

LE.5209

Cold light source 20W ,12V with glass fibre

SL.5208

Spare halogen bulb

98.492

Spare thermometer 0-50º C for Abbe refractometer 98.490

98.496

Calibration plate nD 1.5163 for Abbe refractometer 98.490

Polarimeters

The purity and concentration of an optically active substances can be determined with polarimeter. An optically active substance will rotate the polarization plane of linear polarized light. The amount of rotation is dependant on the molecular composition and is proportional to the concentration of chiral molecules. Each optically active substance has his specific rotation factor as defined by Biot's law



Polarimeters are frequently used for process control of chemical, pharmaceutical and food research labs of production facilities. Some substances that can be measured are: steroids, diuretics, antibiotics, drugs, vitamin, analgesics, amino acids, essential oils and sugars



Novex Polarimeter

Novex Polarimeter (Model No. 99.400)

The Novex 99.400 is equipped with a built-in 230 V 589.3 nm sodium lamp

Polar scale, range ± 180º with 0.1º readings

Delivered with 2 observation tubes 100 and 200 mm



Accessories For Novex polarimeter 99.400

99.410

Observation tube 100 mm

99.415

Observation tube 200 mm

99.430

Cover glass 15 mm diameter for observation tubes

99.431

Rubber seal for 99.430

99.197

Spare sodium bulb, 589.44 nm



Euromex Mitscherlich Polarimeter (Model No. PM.5400)

The Euromex polarimeter PM.5400 is a Mitscherlich type polarimeter and suitable for fast and acurate measurements of sugars, glucose, perfume, chemical substances and medical drugs Also suitable for determination of optical active substances like amino acids, steroid compounds and solid transparent materials like quartz

Euromex PM.5400 Mitscherlich Polarimeter



The Euromex PM.5400 Mitscherlich polarimeter is equipped with a monochromatic 589.3 nm filter and removable 230 volt 30 watt Tungsten illumination source. Also with international sugar scale (Sº)



Polar scale, range ± 130º with 0.1º readings
Sugar scale, range ± 110º with 0.1º readings



Delivered with 2 observation tubes 100 and 200 mm



Accessories For Euromex polarimeter PM.5400

PM.5410

Observation tube 100 mm

PM.5415

Observation tube 200 mm

PM.5430

Cover glass 15 mm diameter for observation tubes

PM.5431

Rubber seal for PM.5430

SL.5197

Spare bulb 230V, 30W

Refractometer Chart

Illuminators

Light is crucial for microscopy and macroscopy in order to see the essential details of objects. Good illumination of the specimen will give improved contrast to the image; therefore selection of the correct illumination for a given object is vital.



Euromex High Power LED Ring Light Illuminators

LEDs are the newest technology for illumination in microscopy that have gained acceptance in both quality control applications and in production. These illumination solutions can be diffuse or optimised with dedicated Fresnel lenses for shorter or longer working distances. Light emitting diodes (LEDs) have the advantage of being a cold light source with a constant spectral output over very long life times.



Euromex LE.1970 56 LED EuroLed ring light illuminator
The first series are economical EuroLed ring light illuminations with 56 LEDs (LE.1970), 60 LEDs (LE.1971) or 144 LEDs (LE.1973) for different work distances. Light intensity is adjustable. Delivered with the power supply



Euromex LE.1972 LED EuroLed ring light illuminator
The second series are high power LED ring light adjustable illuminations for more demanding applications. The LE.1980 and LE.1981 are equipped with 48 high power LEDs and can be mounted on stereo head with diameters from 45 and 66 mm.



The LE.1990 and LE.1991 are equipped with 72 high power LEDs. The LE.1990 and LE.1991 are equipped with 72 high power LEDs and can be mounted on stereo heads with diameters from 60 and 66 mm.
Euromex LE.199x LED EuroLed ring light illuminator with controller
All LE.19xx products can be driven by either an adjustable 0-100% controller (LE.1992) or a segment controller (LE.1993). The LE.19xx product can be equipped with optional Fresnel focusing lenses, diffusers and polarization/analyzer filters



LED Ring Light

Model

LE.1980

LE.1981

LE.1990

LE.1991

LE.1973

Number of LEDs

48 LED

48 LED

72 LED

72 LED

144 LED

Min. mounting diameter

30 mm.

30 mm.

40 mm.

40 mm.

25 mm.

Max. mounting diameter

66 mm.

66 mm.

66 mm.

66 mm.

66 mm.

Outer diameter

90 mm.

90 mm.

110 mm.

110 mm.

100 mm.

Colour temperature

6000°K

6000°K

6000°K

6000°K

6500°K

Illuminance

17,000 Lux

17,000 Lux

21,000 Lux

21,000 Lux

230,000 Lux



Power Supplies / Controllers

LE.1992

100 – 230V power supply analogue controller with intensity adjustable from 0 – 100%

LE.1993

100 – 230V power supply digital 9 segment controller with intensity adjustable from 0 – 100%

Options

For models

LE.1980 / 1981

LE.1990 / 1991

Diffusor glass plate

LE.1984

LE.1994

Fresnel lens (WD 45 – 80 mm.)

LE.1984-050

LE.1994-050

Fresnel lens (WD 80 - 150 mm.)

LE.1984-100

LE.1994-100

Fresnel lens (WD 150 – 230 mm.)

LE.1984-200

LE.1994-200

Protection glass plate

LE.1985

LE.1995

Darkfield equipment

LE.1986

Not available

Polariser filter

LE.1987

LE.1997

Polariser / Analyser Kit

LE.1988

Not available

Indirect illumination dome

LE.1989

Not available

Euromex Microscope Cold Light Illumination Systems (Updated)

Euromex cold light sources can be equipped with flexible or gooseneck type fibre glass light guides, focusing lenses, polarization and colour filters. The light guides are available with one, two or three arms or as ring light. Different adapters are also available for mounting the light guides to different stereo microscopes



LE.5207 Light source with two self-sustaining gooseneck-type guides equipped with 2x 3 Watt white LEDs.

The colour temperature of both LEDs is 6.500 K and produce 6.500 Lux at 100 mm.

Euromex LE.5207 Multifunctional LED cold-light illuminator
Optionally available 365 nm UVLED or 395 nm or 420 nm Violet-LED self-sustaining gooseneck-type guides. Each self-sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm. Ideal for life and materials sciences, various industrial applications and for stereo microscopy.



LE.5208 Multifunctional dual LED light source with Gooseneck flexible arms each with 1W LED with condenser lens.

The color temperature of both LEDs is 6.500 K and produce 6.500 Lux at 100 mm.

Euromex LE.5208 Multifunctional LED cold-light illuminator
Unlike halogen light sources, the LED light version does not require bulb changing, has a longer life time and low energy consumption. The white light produced has no color temperature shifting when dimming Ideal for applications in Life- and Material Sciences, various industrial applications and for stereomicroscopy





LE.5209 Compact, economical 20 Watt cold-light illuminator with fibre optic

Compact and robust cold-light illuminator with a 20 Watt halogen light source. The light intensity level is factory preset and is not adjustable. Supplied with a 40 cm. ‘gooseneck’, 6 mm. diameter fibre optic. For 230 Volts operation.



LE.5210 Multifunctional 100 Watt cold-light illuminator without fibre optic

Euromex LE.5210 Multifunctional 100 Watt cold-light illuminator

This stunning Euromex design cold-light illuminator contains a 100 Watt halogen light source with  intensity control. Maximum colour temperature is 3100°K. Supplied withoutfibre optic. For 230 Volts operation. A large range of fibre optics, adaptors and accessories makes this illuminator suitable for various applications.



LE.5211 Multifunctional 150 Watt cold-light illuminator without fibre optic

Euromex LE.5211 Multifunctional 150 Watt cold-light illuminator

This popular cold illuminator contains a 150 Watt halogen light source intensity control. Supplied without fibre optic.  For 230 Volts operation. A large range of fibre optics, adaptors and accessories makes this illuminator suitable for various applications.





LE.5211-LED is equipped with a High Power LED (without fibre optic).

This model does not require bulb changing, has longer life, low energy consumption, produces a white light (daylight) with no color temperature shifting when dimming. The high luminous flux and special features are ideal for the advanced requirements in Life- and Material Sciences, various industrial applications and for stereomicroscopy The brightness of the High Power LED version is equivalent to a 120W halogen cold light source



Accessories for LE.5207

LE.5260

Interchangeable self-sustaining gooseneck-type guide with a white 6.500 K high-power LED for NZ.9018, LE.5207 or LE.5212,

LE.5261

Interchangeable self-sustaining gooseneck-type guide with a 365 nm high-power UV-LED for NZ.9018, LE.5207 or LE.5212,

LE.5262

Interchangeable self-sustaining gooseneck-type guide with a 395 nm high-power Violet-LED for NZ.9018, LE.5207 or LE.5212,

LE.5263

Interchangeable self-sustaining gooseneck-type guide with a 420 nm high-power Violet-LED for NZ.9018, LE.5207 or LE.5212

LE.5264

Polarization filter, screw on type for Interchangeable self-sustaining gooseneck-type guides for NZ.9018, LE.5207 or LE.5212,

Gooseneck self-sustaining ‘flex & stay’glassfibre light guides for LE.5210 or LE.5211 (emission angle 65°, with black metal jacket)

LE.5213

Single-arm light guide, 4 mm. diameter fibre, length 50 cm.

LE.5214

Two-arm light guide, 4 mm. diameter fibre, length 50 cm.

LE.5215

Three-arm light guide, 4 mm. diameter fibre, length 50 cm.

Flexible glass fibre light guides for LE.5210 or LE.5211

(emission angle 65°, with black PVC jacket)

LE.5216

Single-arm light guide, 4 mm. diameter fibre, length 100 cm.

LE.5235

Two-arm light guide, 4 mm. diameter fibre, length 100 cm.

LE.5217

Three-arm light guide, 4 mm. diameter fibre, length 100 cm.

LE.5218

Single-arm light guide, 8 mm. diameter fibre, length 100 cm.

LE.5220

Single-arm light guide, 8 mm. diameter fibre, length 200 cm.

Accessories for LE.5213, LE.5214, LE.5215, LE.5218 and LE.5220

LE.5222

Focusing head (suitable for all flexible and ‘flex & stay’ gooseneck light guides)

LE.5228

Focusing head identical to LE.5222 but with iris diaphragm for light intensity adjustment without colour alteration (suitable for all flexible and ‘flex & stay’ gooseneck light guides)

LE.5229

Polarisation filter for reducing reflections

LE.5223

3 colour filters set (red / blue / green) for LE.5222 and LE.5228)

LE.5231

Conversion filter KB12/80B for daylight film

LE.5224

Aspheric condenser lens

Adaptor mounts for light guides

AE.5237

Ring adaptor with 2 adjustable clamps for LE.5217 and LE.5235. To be used with Euromex Z stereo microscopes (except ZE.1659)

AE.5238

2 adjustable clamps for LE.5217 and LE.5235. To be mounted on stereo head holders. Only available in combination with the purchase of a microscope

AE.5251

Adaptor for light guide LE.5216 and LE.5217. To be used with ST.1715 and ST.1720 stands or with ST.1792, ST.1794 or ST.1798 stereo head holders



LE.1970 EuroLED 56 Ring Light

Euromex LE.1970 56 LED EuroLed ring light illuminator

This ring light contains 56 LED’s and the light intensity is adjustable between 10 – 100%. Colour temperature maximum 4300°K. Suitable for working distances between 55 and 120 mm. For 110 – 230 Volts operation.



LE.1971 EuroLED 40 Ring Light

This ring light contains 40 LED’s and the light intensity is adjustable between 10 – 100%. Colour temperature maximum 4300°K. Suitable for working distances between 55 and 75 mm. For 110 – 230 Volts operation.



Euromex Illumination Station LE.5212 (New)

Professional base station with various LED cold light sources suitable for Materials Science and Stereo microscopy. The station consists of four independent and autonomous illuminators available with white light spectrum and three monochromatic wavelengths. This is the complete illumination solution in one station



Euromex LE.5212 Illumination Station Config

Technical Specification

  • Light source station with multiple power supply connections for two self-sustaining gooseneck-type guides, one ring light and one transmitted stage illumination
  • Each power supply connection controls the LED intensity independently from the other power supply connections
  • Oblique illumination with two self-sustaining Gooseneck-type LED light guides equipped with either a 3 Watt white 6500 K LED or a 365 nm UV-LED or a 395 nm or 420 nm Violet-LED
  • Each self-sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm
  • Homogeneous conical beam of light illumination with a white 6.500 K LED ring light generating with 60 LEDs up to 24.000 Lux. Mounting diameters from 21 to 61 mm
  • Transmitted light stage illumination with a 6.500 K white LED generating up to 8.000 Lux with 42 LEDs. Stage diameter 94.5 and 15 mm thick
  • Station to be placed on a tabletop as standalone illumination unit or mounted on the pole of a stereo microscope with diameters up to 44 mm or with 35- and 25-mm pole mounting adapter rings
  • Operating voltage: 100-240VAC/50-60Hz 5VDC/4A
  • Dimensions (main body): (h) 40 x (w) 65 x (d) 200 mm
  • Weight: 1.9 kg



Euromex LE.5212 Illumintation Station

Accessories for LE.5212

LE.5260

Interchangeable self-sustaining gooseneck-type guide with a white 6.500 K high-power LED for NZ.9018, LE.5207 or LE.5212,(A)

LE.5261

Interchangeable self-sustaining gooseneck-type guide with a 365 nm high-power UV-LED for NZ.9018, LE.5207 or LE.5212,(B)

LE.5262

Interchangeable self-sustaining gooseneck-type guide with a 395 nm high-power Violet-LED for NZ.9018, LE.5207 or LE.5212,(C)

LE.5263

Interchangeable self-sustaining gooseneck-type guide with a 420 nm high-power Violet-LED for NZ.9018, LE.5207 or LE.5212 (D)

LE.5264

Polarization filter, screw on type for Interchangeable self-sustaining gooseneck-type guides for NZ.9018, LE.5207 or LE.5212,

Euromex Microscope Fluorescence Illumination Systems

A fluorescent lamp is filled with mercury vapor and a noble gas and the inner surface is coated with a fluorescent coating. This coating will emit visible light when short wave UV light - generated by the gas-discharge exited mercury atoms - hit the coating. The fluorescent lamp produces more light than an incandescent lamp. Also heat production is much lower



LE.1863 Fluorescent Ring light for zoom lenses

Euromex LE.1863 Fluorescent Ring light for zoom lenses

For incident illumination of objects. Colour temperature maximum 4300°K. Suitable for all Zoom-Stereomicroscopes of the Euromex Z Series, except ZE.1659. For 230 Volts operation.



Adaptor mounts for ring light

AE.5247

Adaptor for LE.5239, LE.5240, LE.1970 and LE.1971, to be mounted on 1x / 2x and 1x / 3x stereo heads when no additional lenses are used. When using additional lenses please contact Euromex for further assistance.

AE.5248

Adaptor for LE.5239, LE.5240, LE.1970 and LE.1971, to be mounted on 2x / 4x stereo heads when no additional lenses are used. When using additional lenses please contact Euromex for further assistance.

65.867

Adaptor for LE.1863 to be mounted on a Novex RZ zoom stereo objective when using additional lenses.

65.868

Adaptor for LE.1863, LE.5239, LE.5240, LE.1970 and LE.1971 to be mounted on a Novex RZ zoom stereo objective when no additional lenses are used.

65.869

Adaptor for LE.1863, LE.5239, LE.5240, LE.1970 and LE.1971 to be mounted on a Novex RZ zoom stereo objective when using additional lenses.



LE.5194 Universal halogen 20 Watt microscopy lamp

A microscopy 20 Watt, 12V halogen light source. The lamp housing can be easily moved around and is fixed with a magnet on the base. With built-in transformer. For 230 Volts operation.



LE.5195 Battery charger for LED illunminators





LE.5200 Universal large microscope lamp





LE.1860 / 50.879 Fluorescent 7 Watt light source

Fluorescent 7 Watt light source for incident illumination. Suitable for ST.1710, ST.1715 and ST.1760 stands. The 50.879 is suitable for the Novex AP Series. For 230 Volts operation.



LE.1865 Fluorescent light source for ST.1750 stand

Fluorescent light source for incident illumination. Only for the ST.1750 stand. For 230 Volts operation.



LE.1861 Fluorescent Ring light for 1x / 2x and 1x / 3x stereo heads

Fluorescent 40 kHz ring light for incident illumination. Colour temperature maximum 5200°K. To be mounted on the stereo heads of EE.1522, EE.1552, EE.1523 and EE.1553 stereomicroscopes. For 230 Volts operation.



LE.1862 Fluorescent Ring light for 2x / 4x stereo heads

Fluorescent 40 kHz ring light for incident illumination. Colour temperature maximum 5200°K. To be mounted on the stereo heads of EE.1524 and EE.1554 stereomicroscopes. For 230 Volts operation.



65.863 Fluorescent 7 Watt ring light for Novex RZ

Fluorescent 7 Watt light source for incident illumination with a ‘long-life’ lamp (> 5000 hours). Colour temperature maximum 6400°K. To be mounted on the zoom lens of the Novex RZ steromicroscopes. For 230 Volts operation.



Adaptor mount for 65.863 ring light

65.869

Adaptor for 65.863 to be mounted on a Novex RZ zoom stereo objective when using additional lenses.



Euromex LE.1865 Fluorescent ring light



LE.1865 Fluorescent lamp

Fluorescent lamp for incident illumination only available for ST.1750 stand for gemological purposes. For 230 Volts operation







Spare parts

SL.5194

Spare bulb 230V, 30 Watt for LE.5192

SL.5198

Halogen bulb with reflector, 12V, 20 Watt for LE.5194

SL.5208

Halogen bulb with cold mirror, 12V, 20 Watt for LE.5109

SL.5219

Halogen bulb with cold mirror, 12V, 100 Watt for LE.5210

SL.5230

Long life Halogen bulb, 12V, 100 Watt for LE.5210

SL.5235

Halogen bulb, 15V, 150 Watt for LE.5211

SL.5708

Fluorescent bulb for LE.1865

SL.1864

Spare bulb for LE.1861, LE.1862 and LE.1863

SL.1889

Spare bulb for LE.1860

50.878

Spare 7 Watt PL bulb for 50.879

AE.5227

Spare fuses 1 Amp, pack of 10

General Light Sources

Euromex LE.5194 Universal halogen microscopy lamp

LE.5194 Universal halogen microscopy lamp

A microscopy 20 Watt, 12 V halogen light source The lamp housing can be easily moved around and is fixed with a magnet on the base.With built-in transformer For 230 Volts operation





Accessories

LE.5195

Battery charger for LED illuminators

65.897

Fluorescent spare bulb for ring light 65.865

SL.1864

Spare bulb for LE.1863

SL.5194

Spare 30 watt 240v bulb for LE.5192

SL.5198

Spare halogen bulb with reflector 20 watt 12v for LE.5194

SL.1889

Fluorescent 7 Watt spare bulb for LE.1860

SL.5708

Fluorescent spare bulb for LE.1865

Illuminator Chart

Spectroscopes

Spectroscopes are used to visualise the light spectrum of the light source of transparent substances. Euromex hand spectroscopes SP-5100, SP-5150 and SP-5155 are being used for optical experiments in natural sciences education.



The Euromex hand spectroscope SP-5200 has a wavelength scale of 400 - 700 nm. When transparent solid substances, liquids or gas is placed between the light source and spectroscope, the specific spectrum of these substances are visible. The SP-5200 is also used for gem determination



The Euromex table spectrometer is used to determine the refraction-index to measure the refraction angle, to measure the angle of minimal deviation and for dispersion measurments. This spectrometer is used for optical experiments in natural sciences classes



Spectroscopes

SP.5100

Euromex hand spectroscope SP.5100

Hand spectroscope with fixed slit

  • direct vision type
  • adjustable eyelens
  • fixed slit
  • angle dispersion C - F 6º
  • linear dispersion 40 mm

SP.5150

Euromex hand spectroscope SP.5150

Hand spectroscope with adjustable slit from 0 to 1 mm. With adjustable eyepiece

  • direct vision type
  • adjustable eyelens
  • adjustable slit 0 - 1 mm
  • angle dispersion C - F 7º
  • linear dispersion 60 mm

SP.5155

Euromex hand spectroscope SP.5155

Hand spectroscope with adjustable slit and comparison prism, mirror and 5 glass cuvettes

  • direct vision type
  • adjustable eyelens
  • adjustable slit 0 - 1 mm
  • angle dispersion C - F 7º
  • linear dispersion 60 mm
  • comparison prism for comparison between products
  • mirror
  • 5 glass cuvettes

SP.5200

Euromex hand spectroscope SP.5200

Hand spectroscope with adjustable slit, comparison prism, mirror, 5 glass cuvettes and wavelength scale 400 - 700 nm with 589 nm indication. Divisions 10 nm.

  • direct vision type
  • adjustable eyelens
  • adjustable slit 0 - 1 mm
  • angle dispersion C - F 7º
  • linear dispersion 60 mm
  • comparison prism
  • mirror
  • 5 glass cuvettes
  • wavelength scale 400 - 700 nm

SP.5275

Euromex table spectrometer SP.5275

Table spectrometer for measurement of a prism in determing the refractive index, measuring the refractive angle, measuring the angle of minimum deviation and the measurement of dispersion



This spectrometer on large tripod stand, to use for the measurement of the angle of a prism and for determining the refractive index of transparent solids or liquids



The instrument consists of collimator F=160 mm, 17 mm diameter and adjustable slit 0-10 mm, V-shaped field adjustment wedge. Telescope with rack and pinion adjustment, round disc scale 180 mm diameter, engraved in 360 degrees, divided in 0.5 degrees, with double vernier gradation. Two rotatable magnifiers for exact reading. Object stage 70 mm diameter, rotatable and with height adjustment, with holder for glass plates and prism, with glass plate and flint glass prism 33 x 33 x 22 mm. Complete with illumination and transformer for 220 volt operation

Euromex Cameras and Scanners

CMEX Cameras and ImageFocus® Analysing Software (Updated)

The Euromex CMEX camera family and ImageFocus® analysing software provide a perfect solution for modern digital microscopy for teaching, research, basic industrial applications and demanding amateurs. The cameras are made to be used with biological, metallurgical and stereo microscopes.

Euromex B-Series Microscope with CMX Digital camera
Euromex CMX Digital camera with case and Image Focus Software



The Euromex CMEX-1, CMEX-3, CMEX-5, CMEX-10 CMEX-3 Pro and CMEX-5 Pro, CMEX-10 Pro,, CMEX-18 Pro, CMOS cameras, sCMEX-3, sCMEX-6 and sCMEX-20 Scientific CMOS cameras together with the ImageFocus 4© analysis software offers the perfect solution to modern microscopy in secondary and high schools, universities, industry, life sciences and the passionated amateur. The CMEX cameras can be used with biological, metallurgical and stereo microscopes The cameras are equipped with very sensitive devices for bright and dark field applications as well for phase contrast and with coaxial illumination Deilvered with USB-2 or USB-3 cable.



CMEX Digital CMOS Colour Cameras



CMEX-1

CMEX-3

Sensor

⅓"  CMOS

½" CMOS

Pixels

1.3 megapixels

3.0 megapixels

Max. output pixels

1280 x 1024

2048 x 1536

Pixel size

3.6 μm x 3.6 μm

3.2 μm x 3.2 μm

Frame Rate

Up to 15 fps (1280 x 1024 pixels)
Up to 30 fps (640 x 480 pixels)

Up to 10 fps (2048 x 1536 pixels)
Up to 25 fps (1024 x 768 pixels)
Up to 40 ffps (640 x 480 pixels)

Signal / Noise ratio

44 db

44 db

Dynamic range

> 71 db

> 72 db

Sensitivity (V/lux-sec)

> 1.3 @ 550 nm

> 1.3 @ 550 nm

Objective

0.65 x

0.5 x

Objective mount

C/CS-mount

C/CS-mount

Interface

USB 2.0 (480 Mb/s)

USB 2.0 (480 Mbp/s)

Cat. Number

DC.1300c

DC.3000c



CMEX-5

CMEX-10

Sensor

1/2.5" CMOS

1/2.3"  CMOS

Pixels

5.0 megapixels

10.0 megapixels

Max. output pixels

2592 x 1944

3856 x 2764

Pixel size

2.2 μm x 2.2 μm

1.67 μm x 1.67 μm

Frame Rate

Up to 5 fps (2592 x 1944 pixels)
Up to 21 fps (1280 x 960 pixels)
Up to 25 fps (1024 x 768 pixels)
Up to 38 fps (640 x 480 pixels)

Up to 3 fps (3856 x 2764 pixels)
Up to 8 fps (1832 x 1370 pixels)
Up to 28 fps (916 x 680 pixels)

ADC

10 bits

10 bits

Colour Depth

24 bits

24 bits

Signal / Noise ratio

41 db

42 db

Dynamic range

> 60 db

> 65 db

Sensitivity (V/lux-sec)

> 1.3 @ 550 nm

> 1.3 @ 550 nm

Objective

0.65 x

0.5 x

Objective mount

C/CS-mount

C/CS-mount

Interface

USB 2.0 (480 Mb/s)

USB 2.0 (480 Mb/s)

Cat. Number

DC.5000c

DC.10000c



CMEX-Pro 3

CMEX-Pro 5

Sensor

½" CMOS

1/2.5;" CMOS

Pixels

3.0 megapixels

5.0 megapixels

Max. output pixels

2048 x 1536

2592 x 1944

Pixel size

3.2 μm x 3.2 μm

2.2 μm x 2.2 μm

Frame Rate

Up to 10 fps (2048 x 1536 pixels)
Up to 25 fps (1024 x 768 pixels)
Up to 40 fps (640 x 480 pixels)

Up to 5 fps (2592 x 1944 pixels)
Up to 21 fps (1280 x 960 pixels)
Up to 25 fps (1024 x 768 pixels)
Up to 38 fps (640 x 480 pixels)

ADC

12 bits

12 bits

Colour Depth

24 bits

24 bits

Signal / Noise ratio

45 db

42 db

Dynamic range

> 72 db

> 65 db

Sensitivity (V/lux-sec)

> 1.5

> 1.5

Objective

0.5 x

0.5 x

Objective mount

C/CS-mount

C/CS-mount

Interface

USB 2.0 (480 Mb/s)

USB 2.0 (480 Mb/s)

Cat. Number

DC.3000p

DC.5000p



CMEX-Pro 10

CMEX-Pro 18

Sensor

1/2.3" CMOS

1/2.3" CMOS

Pixels

10.0 megapixels

18.0 megapixels

Max. output pixels

3584 x 2746

4912 x 3684

Pixel size

1.67 μm x 1.67 μm

1.25 μm x 1.25 μm

Frame Rate

Up to 7.2 fps (3584 x 2746 pixels)
Up to 24.5 fps (1792 x 1372 pixels)

Up to 6 fps (4912 x 3684 pixels)
Up to 18 fps (2546 x 1842 pixels)
Up to 32 fps (1228 x 922 pixels)

ADC

12 bits

12 bits

Colour Depth

24 bits

24 bits

Signal / Noise ratio

35.5 db

42 db

Dynamic range

> 63.5 db

> 66 db

Sensitivity (V/lux-sec)

0.31

1.3

Objective

0.5 x

0.5 x

Objective mount

C/CS-mount

C/CS-mount

Interface

USB 3.0 (80 Mb/s)

USB 3.0 (80 Mb/s)

Cat. Number

DC.10000p

DC.18000p



sCMEX-3

sCMEX-6

Sensor

1/2.8;" sCMOS

1/1.8;" sCMOS

Pixels

3.1 megapixels

6.3 megapixels

Max. output pixels

2048 x 1536

3072 x 2048

Pixel size

2.5 μm x 2.5 μm

2.5 μm x 2.5 μm

Frame Rate

Up to 50 fps (2048 x 1536 pixels)
Up to 58 fps (1920 x 1080 pixels)

Up to 30 fps (3072 x 2048 pixels)
Up to 38 fps (1536 x 1024 pixels)

ADC

16 bits

16 bits

Colour Depth

36 bits

36 bits

Dynamic range

> 72 db

> 69 db

Sensitivity (V/lux-sec)

> 0.15

> 0.15

Objective

0.5 x

0.5 x

Objective mount

C-mount

C-mount

Interface

USB 3.0

USB 3.0

Cat. Number

DC.3000s

DC.6000s



sCMEX-20



Sensor

1"  CMOS



Pixels

20 megapixels



Max. output pixels

5440 x 3648



Pixel size

2.4 μm x 2.4 μm



Frame Rate

Up to 15 fps (5440 x 3648 pixels)
Up to 50 fps (2736 x 1824 pixels)
Up to 60 fps (1824 x 1246 pixels)



ADC

16 bits



Colour Depth

36 bits



Sensitivity (V/lux-sec)

> 0.21



Objective

1.0 x



Objective mount

C-mount



Interface

USB 3.0



Cat. Number

DC.20000s





CMEX cameras are delivered with a 76 x 24 mm calibration 1mm/100 slide and two 30 / 30.5 mm. adaptors for stereo microscopes

High sensitivity camera features, suitable Bright Field, Dark Field, Phase Contrast, Epi-illumination. Very convenient to use, fits a standard 23.2 mm. trinocular tube or eyepiece tube. Supplied with USB-2 or USB-3 cable. To be used with Euromex ImageFocus software, which can be freely downloaded. The software works solely with CMEX cameras’ captured images. The CMEX cameras are supplied with a robust carrying case.



Options:

DC.1330

30 mm. Adaptor for stereo microscopes

AE.1110

Calibration slide 1 mm. / 100 divisions

AE.1112

Calibration slide 50 mm. / 500 divisions

DC.1320

Objective 1x for DC1300x and DC.5000

DC.1335

30.5 mm. Adaptor for stereo microscopes

AE.1111

Calibration slide 2 mm. / 100 divisions

DC.1311

ImageFocus software on CDROM

DC.1315

ImageFocus Stacking software(1)

DC.1316

ImageFocus Stacking software(2)

(1) ImageFocus® Stacking software is the perfect digital image processing software which combines multiple images taken at different focus distances to create a resulting image with a greater depth of field than any of the individual source images

(2) ImageFocus® Stacking software Pro extra features:

            - retouching brush to clone pixels from source to resulting image

            - batch mode to process multiple image stacks



ImageFocus® analysing software

  • View and capture live images (single shot and interval capturing modes)
  • Save images in TIFF(*), JPEG(*), BMP, GIF, PCX, PNG formats  (* required formats for measuring function)
  • Annotate images with text and labels and compare images. Print function
  • Calibration function of microscopes objectives and camera
  • Perform measurements (linear / rectangle / ellips / free form) and Vickers Hardness calculation
  • Perform particle counting on saved images (10 counters)

Camera functions:

White balance

Auto white balance function

Exposure time

Auto / manual

RGB control

Individually colour control of  red, green and blue

Sensitivity - Gain

Adjustable

Colour modes

Colour and black ^ white

Settings

Save and Retrieve functions



Minimum system requirements:

  • Pentium IV 1.7 GHz for best performance
  • Minimum 512 Mb memory and 50 Mb free hard disk space
  • One available high speed USB 2.0 port
  • Graphic card true colours
  • Microsoft XP, Vista , Windows 7 or Windows 8 (32 bit or 64 bit versions)

Calibration

An intuitive calibration procedure allows the user to calibrate each objective of the microscope. This enables the user to perform accurate measurements on captured images. The accuracy of the measurement is 0.1 μm.



Camera control

The user can easily control all features of the camera. Adjust sensitivity, use presets, adjust the RGB colours, adjust exposure time and white balance. Select B/W or colour mode. Camera parameters can be easily saved and retrieved.

Easy to use multifunctional tool bar:

  • Select / deselect
  • Area selection
  • Drawing
  • Original size
  • Measuring
  • Move
  • Capturing
  • Text functions
  • Full screen
  • Best fit
  • Counting
  • Annotate images with text and labels
  • Multiple calibration files
  • Perform measurements (angle, line, ellips, rectangle, free form) and export results to an Excel file
  • Editing of multiple images
  • Zoom function
  • Multiple slide navigator

Compare function

Two images can be compared in order to detect differences of structures



Printing of images

The preview and print function allows printing of high resolution images @ 300 dpi



Image enhancements

The adjustment functions allow the user to perform enhancements like contrast, HSV and HSL values, RGB space, FFT analysis. gamma correction and sharpening on images



Menus and Help files in several languages

The user can select several languages for the menus and help files



Default parameters

Save settings in the following Tabs: General, Units, Colours and Camera

CMEX WiFi Digital Cameras

The CMEX-WIFI 5 camera is equipped with a 5 MP CMOS sensor with 12 bits grayscale conversion and a 24 bits color rendering. The CMEX camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems



Euromex CMEX Digital Cameras with WiFi

Adding a WiFi camera to your microscope allows for wireless sharing/viewing microscope images. Ideal for demonstrations or places, such as sterile laboratories, where remote viewing is needed. Apps for Android for this camera are supplied on cd or can be downloaded from the App store (free of charge). ImageFocus Alpha software can be used for Windows based devices and WiFi connected PC. The camera is powered by the included USB charger or a computers USB port. Standard C-mount mounting with 0.45x C-mount objective included



CMEX-WIFI 5 (DC.5000-WIFI)

Sensor

CMOS

Sensor size

1/2.5"

Pixel size

2.2 μm x 2.2 μm

Resolution

1280 x 720

Greyscale Conversion

11 bits

Colour Depth

24 bits

Signal / Noise ratio

43 db

Dynamic range

" 61 db

Sensitivity (V/lux-sec)

1.0



The CMEX-WIFI 5 camera is supplied in a carton box with USB-2 cable, 30.0 and 30.5 mm adapters to use with stereo microscopes, and a 0.45x C-mount objective

High definition CMOS color cameras (Updated)

Euromex VC 3036 HD camera

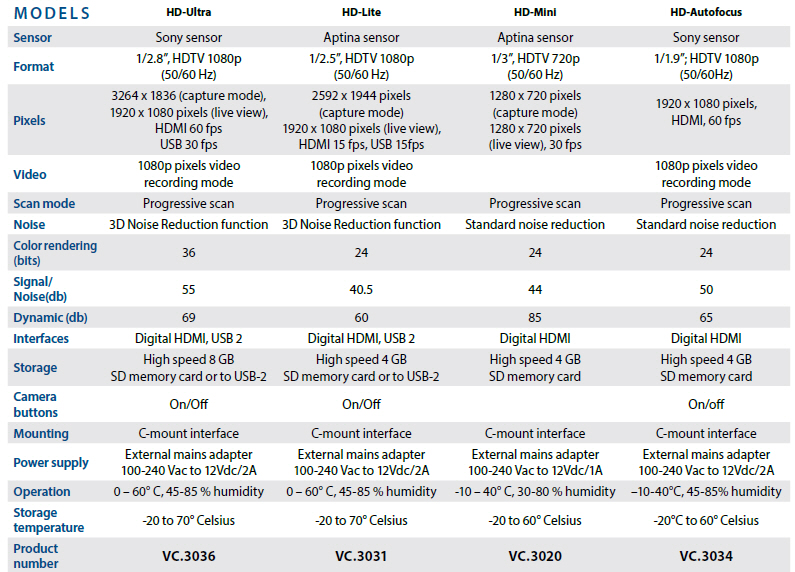

The Euromex HD-Ultra, HD-Lite, HD-Mini and HD-Autofocus cameras offer the perfect solution to modern microscopy for industry and laboratories where real time images are needed. These HD image quality cameras can be used with biological, metallurgical or stereo microscopes.



The cameras are equipped with high sensitive sensors for low and intense light conditions and also suitable for coaxial illumination and

Euromex VC3036 High definition HD1080p and 720p CMOS color cameras with HDMI and USB-2 interfaces
machine vision applications. Cameras are supplied with a C-mount and can be connected to all Euromex microscopes using optional C-mount adapters. The HD-Mini camera is supplied with 0.37x C-mount adapter for 23.2~30.0/ 30.5mm tubes. The HD-Ultra cameras need a 0.35x C-mount adapter and the HD-Lite cameras need a 0.45x C-mount adapter to connect them to microscopes. For microscopes with a standard 23.2 mm tube, the optional 0.33x objective for 1/3" cameras (reference DC.1326) is required.



Euromex VC 3036 HD camera rear view

The real time images generated with these camera provide excellent color rendering with frame speeds up to 60 fps. All settings are done automatically and therefore very user friendly. Once connected directly to a HDMI screen, TV or beamer with HDMI input, one can use the mouse-driven onboard software of the HD-Ultra and HD-Lite to capture and save images and videos (.avi format) on the integrated SD memory card.



Euromex HD cameras Model table

There are two ways to use the HD-Ultra (ref. VC.3036) and HD-Lite (ref. VC.3031) cameras, computer controlled or as stand-alone system. When operatiing Stand-Alone there is no need to use a computer or require any computer knowledge to use a camera. This results in faster, more flexible and compact working conditions. Simply plug the camera to a high resolution HDMI monitor or TV and the system is ready to go. Ideal for quality control systems etc Although most settings are done automatically by the camera, one can use the supplied mouse to control the camera via a user retrievable on-screen menu. The mouse is connected directly to the camera. Very intuitive controls allow users to capture and save images and to record videos on the integrated SD memory card



Users who want more camera controls and more measurements functions, can connect the camera to a computer and make use of the Euromex ImageFocus software which runs on Windows XP, Vista 7,Windows 8 and 10, both 32 and 64 bit versions and is supplied with the camera package.

Euromex Cooled Colour Cameras (New)

Euromex cooled colour cameras

The Euromex 6 and 20 Megapixel Peltier cooled cameras are equipped with Peltier cooling elements that allow the camera to be used for fluorescence and other low light applications. These advanced and premium models are supplied with a USB-3 interface



Euromex cooled colour cameras
All cameras are supplied with ImageFocus Alpha software. The software has specific functions for fluorescence like combining captured fluorescence images. Besides that it allows capturing of images and videos, do measurements annotations, generate reports, live image stitching etc. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations



Highlights

  • Peltier cooled cameras for universities, laboratories and industry
  • For fluorescence applications
  • 6 or 20 Mpix color cameras:
  • Large 1 inch camera sensor:
  • USB-3 interface:
  • Advanced imaging software:

Technical Specification



Euromex bScope Microscope



Ordering information:

Model

Mpx

Senor

Pixel size(µm)

Resolutions

Max fps

USB 3

Sensitivity @ 1/30 sec

Peltier cooling

DC.6000i

6

1" CCD

4.54 x 4.54

2748 x 2200

7,5

880 mV









2748 x 1092

14







DC.20000i

20

1" CCD

2.4 x 2.4

5440 x 3648

7,5

462 mV









4096 x 2160

10















2736 x 1824

15















1824 x 1216

30







Tablet cameras

ProPad Tablet Camera

Euromex ProPad Tablet camera

The ProPad Full HD display reveals bright colours and crisp, microscopic images. The ProPad consists out of a high quality microscope camera system and a fully detachable tablet running the latest ImageFocus™ versions. You can take it anywhere Together with the included attachable keyboard, you can use it as a microscope imaging system, tablet and laptop. The keyboard connects to the tablet using magnets to provide a latchless docking solution that lets you smoothly remove and re-attach the keyboard to the ProPad



EduPad Tablet Camera

Euromex EduPad Tablet camera

The EduPad tablet with a 8" display can be supplied with a 1.3 MP, 3.2 MP, 5 MP or a WiFi camera. Together with the ImageFocus™ 4 or ImageFocus™ Alpha software it offers a state-of the art solution for modern microscopy for education, industry and laboratory



Euromex ProPad and EduPad Tablet cameras

ImageFocus™ 4 and ImageFocus™ Alpha, which are compatible with all USB-2 and WiFi cameras, allow for live imaging capturing images in Jpeg, Tiff or Bmp formats or video recording in Avi format. The software has a wide range of functions and measurements which can be done on still and live images. The brightness, contrast and saturation of captured images can be adjusted. Camera parameters for exposure time, white balance and color control are easily accessible.



Specifications



ProPad

EduPad

Size

10.1"

8"

Processor

Quad Core 1.33 GHz with HD graphics processor

Quad Core 1.33 GHz with HD graphics processor

Screen

1280 x 800 (WGXA) touchscreen, LED backlight

1280 x 800 (WGXA) touchscreen, LED backlight

Memory

2 GB DDR RAM, 2 MB cache

1 GB DDR RAM, 2 MB cache

Storage

32 GB intern SDD, micro SD up to 32 GB

32 GB intern SDD, micro SD up to 32 GB

Webcam

2 MP, 1600 x 1200 pixels front and rear cameras

2 MP, 1600 x 1200 pixels front and rear cameras

Connectivity

Micro USB 2.0, WiFi 802.11 b/g/n and Bluetooth 4.0

Micro USB 2.0, WiFi 802.11 b/g/n and Bluetooth 4.0

Audio

Stereo with 3.5 mm audio jack and internal microphone

Stereo with 3.5 mm audio jack and internal microphone

Battery

Lithium, 4420 mAh, 17 Wh

Lithium, 4420 mAh, 17 Wh

Housing

Aluminium, white colour, 214 x 128 x 9.8 mm

Aluminium, white colour, 214 x 128 x 9.8 mm

Operating System

Windows 8.1, 32 bit

Windows 8.1, 32 bit

Supplied with

Keyboard-docking station





ProPad Models



ProPad-1 (PP.1300c)

ProPad-3 (PP.3000c)

ProPad-5 (PP.5000c)

ProPad WiFi (PP.5000-WIFI)

Camera

1.3 MegaPixels

3.2 MegaPixels

5 MegaPixels

5 MegaPixels

Sensor size

1/3"

1/2"

1/2.5"

1/2.5"

Pixel size

3.6 μm x 3.6 μm

3.2 μm x 3.2 μm

2.2 μm x 2.2 μm

2.2 μm x 2.2 μm

Resolution

1280 x 1024<

2048 x 1536<

2592 x 1944<

2592 x 1944<

ADC

10 bits

10 bits

10 bits

12 bits

Colour Depth

24 bits

24 bits

24 bits

24 bits

Signal / Noise ratio

55 db

44 db

42 db

40.5 db

Dynamic range

" 72 db

" 72 db

" 65 db

" 66.5 db

Sensitivity

1.3 V/lux-sec

1.3 V/lux-sec

1.3 V/lux-sec

0.53 V/lux-sec

Interfaces

USB-2

USB-2

USB-2

WIFI



EduPad Models



EduPad-1 (EP.1300c)

EduPad3 (EP.3000c)

EduPad-5 (EP.5000c)

EduPad WiFi (EP.5000-WIFI)

Camera

1.3 MegaPixels

3.2 MegaPixels

5 MegaPixels

5 MegaPixels

Sensor size

1/3"

1/2"

1/2.5"

1/2.5"

Pixel size

3.6 μm x 3.6 μm

3.2 μm x 3.2 μm

2.2 μm x 2.2 μm

2.2 μm x 2.2 μm

Resolution

1280 x 1024<

2048 x 1536<

2592 x 1944<

2592 x 1944<

ADC

10 bits

10 bits

10 bits

12 bits

Colour Depth

24 bits

24 bits

24 bits

24 bits

Signal / Noise ratio

55 db

44 db

42 db

40.5 db

Dynamic range

" 72 db

" 72 db

" 65 db

" 66.5 db

Sensitivity

1.3 V/lux-sec

1.3 V/lux-sec

1.3 V/lux-sec

0.53 V/lux-sec

Interfaces

USB-2

USB-2

USB-2

WIFI

The ProPad and EduPad WiFi models are supplied with ImageFocus Alpha for WiFi enabled PC"s, .apk application for Android system Other models are supplied with ImageFocus 4

CCD Cameras

Euromex VC 1010 CCD camera

The Euromex analogue VC.xxxx series cameras together with the optional software offer the perfect solution to modern microscopy in secondary and high schools, industry and the passionate amateur. These cameras can be used for either biological, metallurgical or stereomicroscopes.



Euromex VC 3032 CCD camera

The cameras are equipped with very sensitive devices for bright and dark field applications as well for phase contrast and with coaxial illumination. The objective of these user-friendly cameras fits on a standard 23.2 mm trinocular or binocular microscope tube and with the use of optional adapters to 30 and 30.5mm tubes



Euromex DC5000i 5.0 Mpix USB-2 Cooled CCD color digital camera

Euromex DC 5000i CCD camera
and ImageFocus 4 analysing software are the perfect solution for modern digital microscopy for teaching, basic industrial and live sciences applications and for demanding amateurs. Suitable for biological and metallurgical microscopes as well as for stereomicroscopes and extremely recommended for any fluorescence application



CMEX CCD Colour Cameras



VC.1000

VC.1010

VC.3011

VC.3022

VC.3032

Sensor

⅓"  CMOS

⅓"  CMOS

⅓"  CMOS

⅓"  CMOS

½" CMOS

No. Lines

380

380

380

480

580

Pixels

297.984

297.984

291.000

437.664

473.820

Objective mount

CS mount

CS mount

C/CS mount

C/CS mount

C/CS mount

Composite BNC Output

Yes

Yes

Yes

Yes

Yes

S-Video Output

No

No

No

No

No

Functions

White Balance

Auto

Auto

Auto

Auto

Auto/Manual

On-screen Display

No

No

No

No

Yes3

Delivered With

AE.5015 objective2

Yes

Yes

No

No

No

Composite BNC/BNC cable

Yes

Yes

Yes

Yes

Yes

Composite BNC-Scart cable

No

No

Yes

Yes

Yes

S-video (Y/C) cable

No

No

No

Yes

Yes

Mini video grabber card4

Yes

Option

Option

Option

Option

(1) All cameras are delivered with power supply, cables, robust carrying case for camera and accessories

(2) The AE.5015 objective fits to a standard 23.2 mm tube

(3) The On Screen Display function displays a menu with settings for the camera direct on screen

(4) The mini video grabber card is delivered with software for registration of pictures and movies. The cameras are connected via the C or CS mounts using the VC.5015 and other of the optional objectives mentioned in this brochure



Options

VC.3516

15" Colour Monitor 600 lines with one S video and two composite video outputs. For 230 volt operation

VC.3521

21" Colour Monitor 600 lines with one S video and two composite video outputs. For 230 volt operation

VC.5015

Universal objective with CS mount for 23.2 mm tube

AE.5017

Universal objective with C mount for trinocular tube for microscopes for the F and G series (23.2 mm)

AE.5018

Universal objective with C mount for trinocular tube for microscopes for the Z and E (23.2 mm)

VC.5059

0.45x objective for 23.2 mm tube

VC.5063

0.70x objective for 23.2 mm tube

VC.1045

Adapter for 30.5 mm tubes for stereomicroscopes

DC.1330

Adapter for 30 mm tubes for stereomicroscopes

Euromex VC.5491 mini USB-2 video grabber



The VC.5491 mini USB-2 video grabber converts composite or a S-video signal from any analogue camera into digital images and sends them to a computer via a USB 2 connection





Specifications

Video input:

Composite and S-video (Y/C)

Audio input:

Cinch connection - stereo right/left

Fixed image resolution:

640x480 pixels in BMP, JPG of TIFF format

Video images:

in AVI, MPEG-2, MPEG-4, VCD, SVCD, and WMV

Video resolution:

730 x 480, 640 x 480, 640 x 240, 320 x 240 pixels

Video system:

PAL, SECAM of NTSC

Power supply:

5 Vdc, max 330 mA via USB-2 port

Dimensions:

L 81 mm x W 30 mm x H 15mm

Minimum Requirements

PC

PC Pentium 4, 1 GHz, with at least 128 MB RAM internal memory, free USB-2 port and sound card

Operating System

Windows 2000 SP3, Windows XP SP1 or higher, Windows Vista or Windows7

Software Features

Saving pictures in BMP, JPG or TIFF format. Saving video movies in AVI, MPEG-2, MPEG-4,VCD,SVCD of WMV format. Settings: brightness, contrast, hue and saturation



Eurocam Desktop CCD Cameras

Euromex Eurocam desktop CCD cameras

The Eurocam CCD cameras are mounted on a GooseNeck self-sustained type flexible. The Eurocam can be oriented in all directions and inserted in a microsocpe tube or used as macro projection system. Some models are also equipped with a video grabber and audio



The Eurocam CCD camera's can be equiped with a microphone and/or mini video grabber with a S video or/and composite BNC video output for a monitor, television or projector



Eurocam CCD Cameras

Models

VC.6000

This camera is mounted on a stable base with a flexible 60 cm "gooseneck". Easy positioning in all directions with one hand in a matter of seconds. The camera head swivels 90º to the left or to the right. Complete with 3 connection cables for monitor (1x BNC, 1x EURO-SCART and 1x YC-connection). Supplied with microscope adapter for 23,2 mm diameter eyepieces.

VC.6100

This camera is mounted on a stable base with a flexible 60 cm "gooseneck". Easy positioning in all directions with one hand in a matter of seconds. The camera head swivels 90º to the left or to the right. Complete with 3 connection cables for monitor (1x BNC, 1x EURO-SCART with audio and 1x YC-connection). Including microscope adapter for 23, 2 mm eyepieces, with built-in microphone.

VC.6500

This camera is mounted on a stable base with a flexible 60 cm "gooseneck". Easy positioning in all directions with one hand in a matter of seconds. The camera head swivels 90º to the left or to the right. Complete with 3 connection cables for monitor (1x BNC, 1x EURO-SCART and 1x YC-connection). Supplied with microscope adapter for 23,2 mm diameter eyepieces.

VC.6600

This camera is mounted on a stable base with a flexible 60 cm "gooseneck". Easy positioning in all directions with one hand in a matter of seconds. The camera head swivels 90º to the left or to the right. Complete with 3 connection cables for monitor (1x BNC, 1x EURO-SCART with audio and 1x YC-connection). Supplied with microscope adapter for 23,2 mm diameter eyepieces and with built-in microphone.

VC.6705

This camera is mounted on a stable base with a flexible 60 cm "gooseneck" Easy positioning in all directions with one hand in a matter of seconds The camera head swivels 90º to the left or to the right Complete with cables for monitor (1x BNC, 1x EURO-SCART with audio, 1x YC-connection and a USB cable). Supplied with microscope adapter for 23,2 mm diameter eyepieces and with built-in microphone.



VC.6000

VC.6100

VC.6500

VC.6600

VC.6705

Pick-up element

⅓"  with 500(H) x 582(V)lines

⅓"  with 500(H) x 582(V)lines

⅓"  with 752(H) x 582(V)lines

⅓"  with 752(H) x 582(V)lines

⅓"  with 752(H) x 582(V)lines

No. Lines

330

330

450

450

450

Pixels

291.000

291.000

440.000

440.000

440.000

Objective

F = 8 mm. Focus from 20 mm to infinity

F = 8 mm. Focus from 20 mm to infinity

F = 8 mm. Focus from 20 mm, to infinity

F = 8 mm. Focus from 20 mm, to infinity

F = 8 mm. Focus from 20 mm, to infinity

Minimum illumination

0,25 Lux (F1.4/3.200ºK)

0,25 Lux (F1.4/3.200ºK)

0,25 Lux (F1.4/3.200ºK)

0,25 Lux (F1.4/3.200ºK)

0,25 Lux (F1.4/3.200ºK)

White Balance

Auto

Auto

Auto

Auto

Auto

Shutter control

1/50 - 1/30.000s

1/50 - 1/30.000s

1/50 - 1/30.000s

1/50 - 1/30.000s

1/50 - 1/30.000s

Video Output

PAL (NTSC on request)

PAL (NTSC on request)

PAL (NTSC on request)

PAL (NTSC on request)

PAL (NTSC on request)

(1) All cameras weigh approximately 1.9KG and are delivered with a built in 240v power supply, cables, robust carrying case for camera and accessories

(2) All cameras can be optionally used with a transciever to allow recordings to be transmitted to another location.

(3) VC.6705 Direct video output: composite BNC and S-video (Y/C) and is delivered with cables BNC/BNC, BNC/SCART and S-video Y/C cable

(4) VC.6705 has a built in USB-2 Built-in frame grabber Grabbee X Deluxe and is delivered with software for registration of pictures and movies.

Euromex VC.5491 mini USB-2 video grabber



The VC.5491 mini USB-2 video grabber converts composite or a S-video signal from any analogue camera into digital images and sends them to a computer via a USB 2 connection





Specifications

Video input:

Composite and S-video (Y/C)

Audio input:

Cinch connection - stereo right/left

Fixed image resolution:

640x480 pixels in BMP, JPG of TIFF format

Video images:

in AVI, MPEG-2, MPEG-4, VCD, SVCD, and WMV

Video resolution:

730 x 480, 640 x 480, 640 x 240, 320 x 240 pixels

Video system:

PAL, SECAM of NTSC

Power supply:

5 Vdc, max 330 mA via USB-2 port

Dimensions:

L 81 mm x W 30 mm x H 15mm

Minimum Requirements

PC

PC Pentium 4, 1 GHz, with at least 128 MB RAM internal memory, free USB-2 port and sound card

Operating System

Windows 2000 SP3, Windows XP SP1 or higher, Windows Vista or Windows7

Software Features

Saving pictures in BMP, JPG or TIFF format. Saving video movies in AVI, MPEG-2, MPEG-4,VCD,SVCD of WMV format. Settings: brightness, contrast, hue and saturation



Scanners

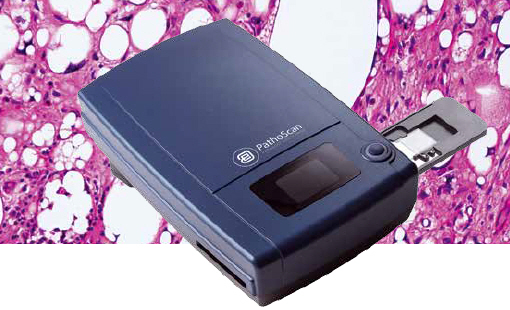

PathoScanner 10,000 DPI slide scanner

Euromex PathoScanner 10000dpi slide scanner

In pathology, histology and other medical fields, medical professionals look at tissue slides under a microscope. Often the tissue are stained to highlight certain structures enabling the specialists to perform their analysis. Euromex now introduces a digital solution for these specialists

The PathoScan digital microscope slide scanner produces quick, reliable and high-resolution digital images of cells. Once the slides are digitized there are numerous advantages against classic microscopy



Users have the ability to upload the scanned images onto a network for sharing and collaboration among colleagues, resulting in better and faster diagnostics. The scanned slides can also be used for education purposes. Digitized slides also can be analyzed using the specialists own dedicated software. The software can be used to automate the manual counting of structures, or for classifying the condition of tissue such as is used in grading tumors



Highlights

  • Supports standard microscopy slide 76 x 26 mm
  • From basic histology research to life science education
  • Scans full slide:
  • Simple user interface:
  • Superior quality, 3-line CCD sensor:
  • 48-bit, 10,000 dpi, 5 µm resolution:
  • Industry-leading scanning speeds:
  • Holder for 2 slides included:
  • Polarization attachment available:

Specifications

Resolution10,000 x 10,000 dpi
Signal ExpressionColour
Dynamic Range3.8
Scanning Area24.3 x 36.5 mm (H x W)
Scanning medium76 x 26 mm slides
File FormatSaving in JPG, TIFF formats
Light SourceTransmission white LED
Operating SystemWindows XP/Vista/7/8/10 Intel-based Mac OS X 10.5/10.6 /10.7/10.8
Power supply100- 240 AC Adapter, 12 V 1.5 A
Supplied withDouble slide holder, 100-240 V power supply, USB-2 cable, PathoView scanning software and user manual
ModelPS.1001



Pathoview Scanning software

  • Easy Preview and Scan Slide
  • Quick setting exposure time
  • Scan resolution from 1,000~10,000 dpi
  • File format: TIF and JPEG
  • Images can also be used with ImageFocus Alpha basic microscopy analysis software,                  see chapter 9.

Ordering Information

PS.1001PathoScanner 10,000 DPI slide scanner
PS.3001Double slide holder
3002Polarization slide holder, for one slide

Camera Chart

Accessories

Metascientific.com supply a wide range of micoscopy accessories from magnifiers and microtomes to sets of slides for educational use. We also supply general accessories such dissection sets, slides, Canada balsams and stains.



If you cannot find what you are looking for please contact us



Magnifiers

Measuring Magnifiers and Microtomes

Dissection Instruments

Student Measuring Graticules

Student Measuring Graticules - Strips of 5

The Student Measuring Graticule is a 0-10mm scale subdivided into 0.1mm divisions, each of the millimetre subdivisions are numbered 0-10 suitable for most school microscope and laboratory measurement.



Student Measuring Graticules

The graticules are on 0.18mm thick polyester film to maintain flatness and are supplied in two strips of five. The strips can be easily cut and trimmed with scissors, cutting guidelines of 16, 19 and 21mm diameters are shown for various microscope eyepieces. The graticules can be used to provide a scale for use with a magnifying glass or mounted on a microscope slide as a stage micrometer.





For more information about our measuring graticules and ordering, please contact us

Slide Sets and Individual Slides

Metascientific.com supplies 9 complete EUROSLIDES-sets of prepared microscope slides for educational use as well as for the hobby market. From these sets 100 individual slides are available separately.



SCHOOL SERIES

Sets 1 to 5 contain each 25 slides of human science, zoology, and botany for elementary and secondary education. All 5 sets have different slides. Sets histology I and II contain 23 slides of human and mammal histology. Sets PB 204 and PB 218 are suitable for hobby use and contain 10 and 25 slides respectively. All series are packed in a plastic box for 25 pieces, equipped with transparent cover with hinge joint.



Specifications

PB 5211

Schoolset no. 1

PB 5212

Schoolset no. 2

PB 5213

Schoolset no. 3

PB 5214

Schoolset no. 4

PB 5215

Schoolset no. 5

PB 5221

Schoolset histology I of human and mammals

PB 5222

Schoolset histology II of human and mammals

PB 5204

Hobbyset I with 10 prepared slides

PB 5208

Hobbyset II with 25 prepared slides

Packing

PB 5181

Plastic box with transparent cover for 25 slides

PB 5186

Box for 100 slides



Note: The minimum purchase is 10 pc. of the same slide.
         The individual slides always have to be ordered together with a box.









Accessories for microscopy

© 2009 - 2018 Contact Us
